Dr. Verbel'

Sorry for some anamorphic spam, but I could not resist

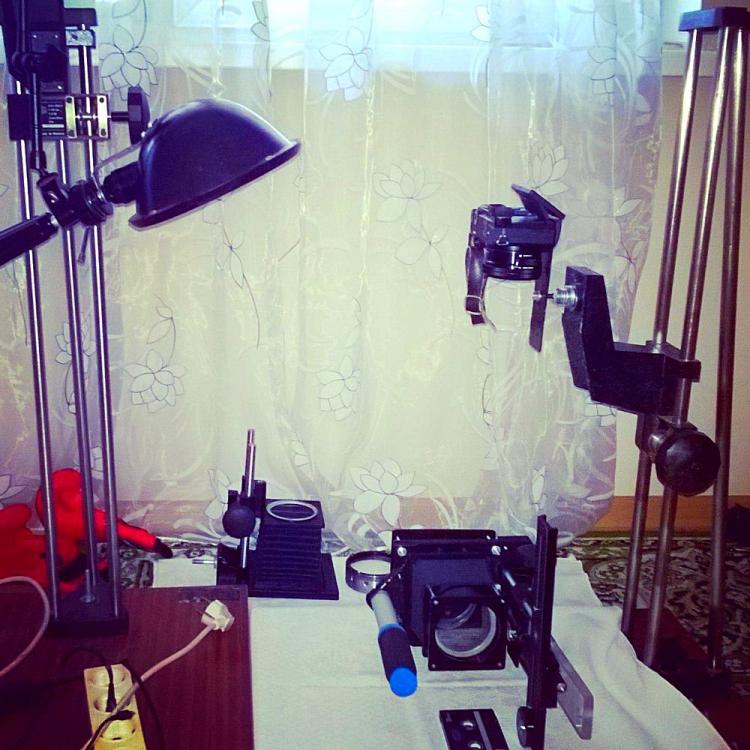

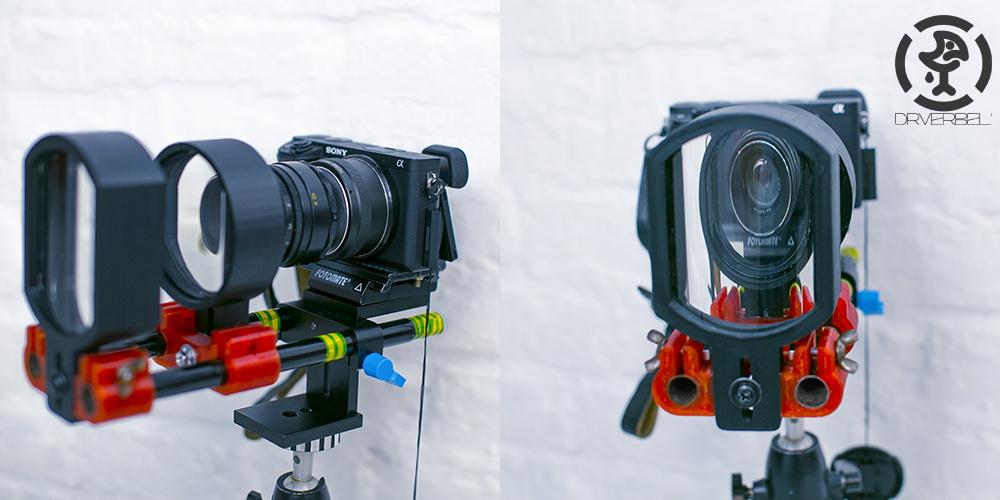

Weighed design 1.7 kg / 3.75 lb‬ . Lenses in rims weigh around 1 kg / 2.2 lb.

Cool! Image slightly angled, but very cool!

source image, no process

Last series shots today.

Thanks! No, so much grading. Overdose Thanks! For double focus bearable :-) Focus prime lens, combine with anamorphic lens, lock position of the camera, focus in my case rear anamorphic lens. Front lens locked. You may lock rear, move for focus front lens. In future I will make bellows, because in some cases rear and side light prevents the image. For accurate lens positioning is sometimes necessary to sway one of the lens slightly to the left and right. Sorry, I couldn't share. Drawings by Alexey Bravo AlexKubrak85@gmail.com. All questions to him. Necessary before printing CHECKS all sizes to fit your lens and mount. 3D complete filling for printing. For black frames solid plastic, for mount (red in my case) more plastic plastic )))

test in field after work

35NAP 2-3M lenses. New tests & additions. Little vignette in infinity, can be removed, cropping to 2:35:1. Sony a6300 (crop), Helios 44-2 58mm

Some useful links, parts of construction: Camera accessories Fotomate LP-02 high quality 200mm Range 2-Way Macro Focusing Rail Slider Plate 1/4 Screw for DSLR Camera http://bit.ly/2cxUkuH Photo Studio Accessories aluminium alloy Rail System 15mm Rod Rig Grundplatte Mount for DSLR Follow Focus Rig 5D2 5D3 http://bit.ly/2cxVqqi 2pcs 40cm Length 15mm Diameter Black Aluminum Alloy Rod Rail Mount for Canon Nikon DSLR Camera Camcorder DV Rig Cage http://bit.ly/2deflc7 FOTGA DP3000 M1 Steady Shoulder Support Pad For DSLR Rod System 15mm Rig NI5L http://bit.ly/2dogf9s Drawings by Alexey Bravo AlexKubrak85@gmail.com. All questions to him. Necessary before printing checks all sizes to fit your lens and mount

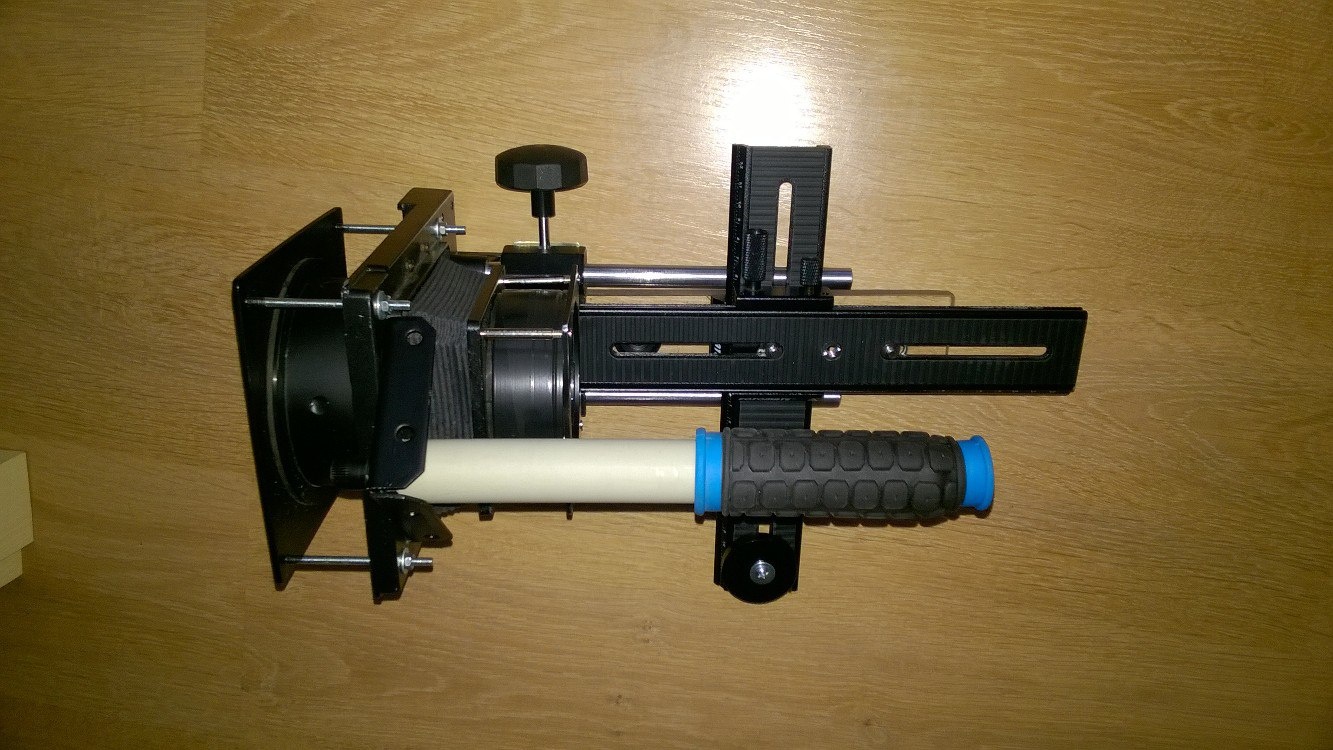

little upgrade of 35nap 2-3m. lighter weight, 3D-printed mount lens. test shots exact proportions only, no sharping. single focus in search. sony a6300, helios 44-2 f:2 (open aperture)

transformers like

Some footage right now from 35nap 2-4. This lens almost identical to 35nap 2-3m, little smaller, little difference with light streaks. Minimum focusing distance I have 50 cm

I will give your regards to Vova Now his brother Arthur help me, because he have a lathe )))

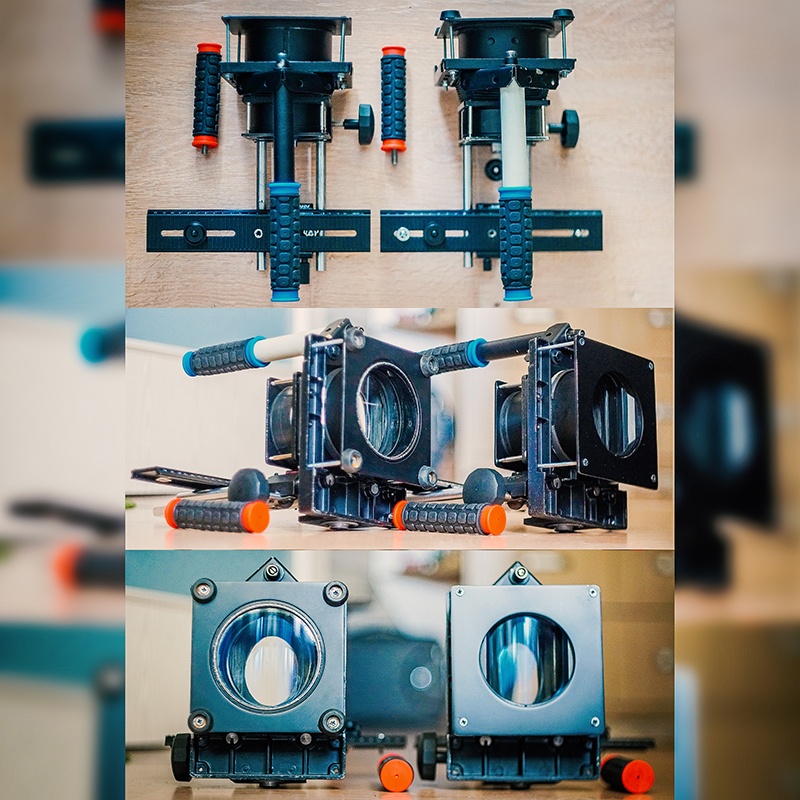

Hi! Yes, 2x, but in this distance (1m ~ 3 ft) stretching less than 2x. Now I use this construction. Setup written in video. But it's very heavy for me and my back, if I don't use a tripod :-( but the cheapest solution I'm working on a lightweight design and single focus (make from 2x to 1.33x, if possible) for this lens.

Test 35NAP 2-3M. Not bad for old soviet projector lens p.s. no program sharp

Fresh test. Better than earlier tests... Rectimascop 80/2x | Helios 44-2 (f:2) | Sony a6300 (4K 25 fps cine2, ISO 100-800)

Some fresh tests with Rectimascop 80/2x. Sony A6300 (crop) | Helios 44-2 58 mm (f:2-f:2.8) Small vignette in infinity can be removed in 2.35:1

English subtitles added (see video in first message). If any questions, write in this thread please

English subtitles are expected during the day. Sorry for waiting

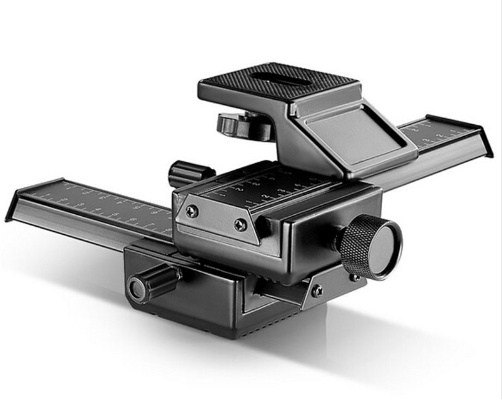

Also: to use different lenses you may buy this (on pic), or use two plates fotomate lp-02

Some notes at this moment: 1. I DO NOT (11:03 in video) cut bellows in case rectimascop 80/2x, because focus in infinity distance between lenses longer than in 35nap2-4. 2. In my setup (sony a6300 (crop), helios 44-2 58 mm) I don't have vignette in infinity at 35nap2-4, and have some little vignette in infinity at rectimascop 80/2x. In other setups (full frame camera) you must test, which primary lens (maybe more than 85-100 mm) shoot without vignette. 3. Closeup focus on rectimascop 80/2x starts at 40 cm/‪15,75 inch

any questions in this thread, thanks

REWORK BULKY ANAMORHIC ATTACHMENT LENSES – RECTIMASCOP 80/2x & 35NAP 2-4 ENGLISH SUBS COMING SOON (MAYBE TOMORROW (2016/08/05), MAYBE IN 1.5 WEEK, SORRY)

Video of rework in progress. Note – for rework video I will make new thread, and answers on possible questions will be there. Thanks to all for understanding.

I hope to make a detailed guide to rework anamorphic projection attachments not later than the 5th of August. Weight around 5 kg, but summary price relatively cheap for my country, rates depending on the anamorphic attachment and a platform. Except wasted time for rework
