Ideal settings for GH3? (color grading and a first example)

[Wit]

@Grav...

In dutch the verb used when making moving pictures :rolleyes:  digital or tape is filmen
If you speak about a video you would use Filmpje or Film

If you go to a festival or a cinema no matter if it's digital, celluloid or whatever, you say - Ik ga naar de film......



Glad my language isn't so confusing!





Now lets go ON TOPIC again!

[Wit]

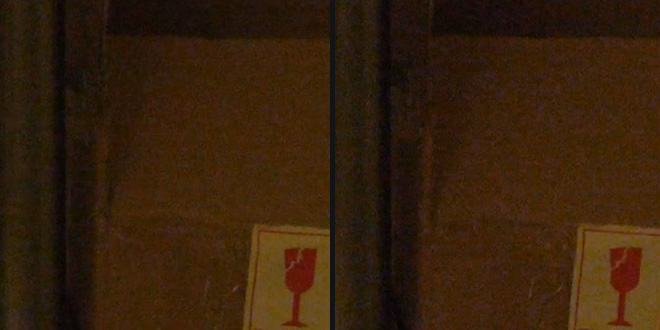

I did some research on the noise grain in 50Mbit long-gop vs 72Mbit ALL-I



Actually the noise grain is the same in 50Mbit 24p and 72Mbit 24p. But it is different between 50Mbit 50/60p and 72mbit 24p especially in motion. Less noise in the 50/60p codec.



But the difference is quite small. 50p is on the left versus 25p (I have PAL camera hence EU frame rates).







@EOSHD

Thanxs for posting this, Andrew!

What settings would you suggest are best for the GH3 achieving the 'Film' Look?

[GravitateMediaGroup]

@blance



achieving the "film" look can't be done from the camera itself

it takes a combination of things, starting with 24p, and a nice quality lens that isn't super sharp.

if you want to better achieve the "film look" as of this very second, sell your gh3 and buy a gh2 ; )

[Axel]

The quest for the filmlook of course renders the whole crusade against the insulting word 'filming' pointless. A digital intermediate, used for 99% of all feature films of the last ten years, after grading is absolutely indistinguishable from modern digital video with same post applied. There is of course the theoretically better DR, but look at the Zacuto shootout and what place the GH2 reached between Alexa and Epic. And what is more, stylish grading means reducing tonal values to a degree where, again, a higher DR seldom shows.

Owner of both, I don't understand what you mean by saying the GH2 provided the better filmlook than the GH3. The filmlook is not generated by the camera, you said so yourself.

[GravitateMediaGroup]

Trying to "emulate" film with digital is A LOT differrnt than and actually calling digital "film"

It's the same as saying "I want the sin city/matrix look"

Also, as a owner a both, I can say, that having a higher bit that 72 is a better option, if it isn't, you will have no need to ever patch your gh3. Have you seen the video of the guy proving the gh2 has more DR than it gets credit for. Do you know for a FACT( has a 2 vs 3 shoot out been done) that the gh3 has the better DR?

[nahua]

I did some research on the noise grain in 50Mbit long-gop vs 72Mbit ALL-I



Actually the noise grain is the same in 50Mbit 24p and 72Mbit 24p. But it is different between 50Mbit 50/60p and 72mbit 24p especially in motion. Less noise in the 50/60p codec.



But the difference is quite small. 50p is on the left versus 25p (I have PAL camera hence EU frame rates).





@Andrew - I like the 50mbit 60P because the noise is easier to remove with Neat Video.  For some reason the 72mbit isn't consistent and is very hard to make a reliable noise profile.  And I haven't seen a real quality boost for the 72mbit.  I'm really amazed at the 50mbit 60P codec, it really works well.  The only downside is I can't use EX TELE mode, I have to go back to 72mbit.  I'm trying to get more long glass since we all want to achieve a look optically.  And the noise in EX TELE mode is really bad past ISO 800.

[Wit]

I just took some test shots with new settings in Mov following your answers in this threat .
They look ok! So the following two days I will shoot my next video on:

- MOV
- 24 p - 50 Mbps

- Contrast -5
- Sharpness -5
- Color -3
- Noise reduction -4


1. There is one thing which I don't understand completely - the noise reduction in relation to Iso. What kind of figure is a high Iso does it move towards 6400 or the other side? And i f it's high Iso should I move the NR towards 0? Because I'm so new to my camera I have all on automatic and filming in A modus - so the only thing I do manually is altering the depth of field and the sharpness.
In what way should I change the noise reduction when light is changing? Can I come by without altering the noise reduction tomorrow at the shoot?

2. If I use the AVCHD setting which p and Mbps should I use? The 24 p 24 Mbps or ...?

[Wit]

-

[nahua]

I just took some test shots with new settings in Mov following your answers in this threat .
They look ok! So the following two days I will shoot my next video on:

- MOV
- 24 p - 50 Mbps

- Contrast -5
- Sharpness -5
- Color -3
- Noise reduction -4


1. There is one thing which I don't understand completely - the noise reduction in relation to Iso. What kind of figure is a high Iso does it move towards 6400 or the other side? And i f it's high Iso should I move the NR towards 0? Because I'm so new to my camera I have all on automatic and filming in A modus - so the only thing I do manually is altering the depth of field and the sharpness.
In what way should I change the noise reduction when light is changing? Can I come by without altering the noise reduction tomorrow at the shoot?

2. If I use the AVCHD setting which p and Mbps should I use? The 24 p 24 Mbps or ...?



ISO is the sensitivity of the sensor.  Higher ISOs mean more noise in the image.  I would rate ISO 1600 and higher as High ISO.  Noise Reduction will reduce the noise in-camera.  However, the camera will lose detail or "smear" the image if Noise Reduction is too high.  At -4 you will get very good detail, but increased noise.  If you intend to shoot at High ISO, I would suggest getting Noise Reduction software plug-in like Neat Video which reduces the noise in the image.



I know you're shooting A (Aperture priority) and probably ISO at A (auto).  It should be fine, just be prepared for each clip looking different because your ISO, white balance (WB) and shutter speed will be all over the place.  In an ideal world you will want to have everything on manual and be consistent with all these settings.  But I know you do traveling, and it's so hard to get the right settings.  The GH3 is pretty good on Auto, and your previous video was really good considering.



AVCHD will be fine at 24P 24Mbps.  Depends on your delivery, but if you like that image you should be fine.  I think you should try and shoot at a higher frame rate like 60P because you can always do slow motion effects later in post.  It also gives you smoother looking footage, and you can always convert 60P to 24P in post.  Either AVCHD or 50Mbits MOV, both 24P or 60P take about the same amount of space on your SD card.



I hope this helps.  Can't wait to see your next short film!

[Wit]

Hi Nahua - you're simply brilliant! Thanxs a lot!
Remind that I'm in Europe so electrical lights are 50 Hrz frequency.
In this treath  I also posted the flickering or banding issues I experienced while working with these settings. In this example it was with artificial lightning. But I also took some really good shots under the same circumstances with the same lights. I used the one point (correct name) setting, for measuring the light.

https://vimeo.com/61454321

[nahua]

OK sorry go with shutter priority (S) mode and set it to 1/50 for EU/PAL lights.  Indoors the camera will automatically go to shallowest depth of field and change ISO to suit.  Shutter speed can be multiples of 1/50 - 1/100, 1/200 work too (for slow motion, but can look jittery like "Gladiator" movie if used at 24P).  Good luck!

[Wit]

Thanxs!!! Still don't know why you have a A function if it's not helpful and you should shoot in the suggested S or M mode .... I guess I will figure this out later. For now I'll start working on my footage and film ;-)



What do you men with the Gladiator look is this also on 1/50?

[nahua]

"Gladiator" look is a reference to the Ridley Scott film Gladiator.  The actions scenes have a staccato movement associated with really high shutter speeds over 1/1000 sec.  Since most films are shot 24P at 1/50 sec, you get a more pleasing motion blur.  But if you want to do slow motion, then you need to shoot at 1/100 or faster shutter speed.  It's all in the look that you want to achieve.  Slower shutter speed means more motion blur, faster shutter speed means less blur and more stuttering movement.  Again play around with different settings to get the look you want.



As for the A function, well it really is a stills camera first.  So the legacy functions of A, S, M, and P are all there.  You can also change the movie mode to shoot in S function.  Go to movie mode on the dial, enter the menus, go to the camcorder icon menu, exposure mode and set to S.  Now all you see is the shutter speed, the aperture value is gone.  If you have ISO and WB both on Auto, then those icons disappear as well.  So now all you do is set your shutter speed and everything else is on auto.  In dark scenes it will automatically go for the widest aperture, then set the ISO for you.

[Wit]

Thanxs for helping me learn it all in a short period  Nahua ;-)

[Wit]

One thing I don't get really. Why should I unscharp it in camera and rescharp it in post? Or shouldn't I do this with all the footage - just see what needs it and what doesn't ?

[toxotis70]

there is a serious possibility  to have more  alias - moire problems if you have sharpness above 0 .

I always put -1 to -5 with Panasonic 12-35 and 35-100, they are very sharp.

If you have manual lenses , you can have it to 0.

[Wit]

there is a serious possibility  to have more  alias - moire problems if you have sharpness above 0 .

I always put -1 to -5 with Panasonic 12-35 and 35-100, they are very sharp.

If you have manual lenses , you can have it to 0.



Thanxs but my question was really not about why I should turn down the dials in my camera but how far I should dial them back up in post. I guess I just have to experiment - already did the Lynda.com tutorials on vector scopes etc. etc but no clue if I have any feeling for it.

[Wit]

Here is the video I shot with the turned down settings as suggested in this thread.

I used MOV All-I, 24 p - 50 Mbps, modus A, Contrast -5, Sharpness -5, Color -3 and Noise reduction -4.



http://www.eoshd.com/comments/topic/2303-gh3-panasonic-12-35-mm-f-28-miontas/



Took my first steps in color grading world as well.  Didn't correct all the colors of the footage but I did sharpen a few. That is when sharpen means altering the exposure using  video scopes and Luma? - Should I always resharpen my footage using above settings? Or should you try to do this as good as possible in camera? I used color altering mainly in the first two shots because they were to yellow. Now they are much darker and the blue/purple look gives that evening feeling.





https://vimeo.com/62002382

[nahua]

Here is the video I shot with the turned down settings as suggested in this thread.

I used MOV All-I, 24 p - 50 Mbps, modus A, Contrast -5, Sharpness -5, Color -3 and Noise reduction -4.



http://www.eoshd.com/comments/topic/2303-gh3-panasonic-12-35-mm-f-28-miontas/



Took my first steps in color grading world as well.  Didn't correct all the colors of the footage but I did sharpen a few. That is when sharpen means altering the exposure using  video scopes and Luma? - Should I always resharpen my footage using above settings? Or should you try to do this as good as possible in camera? I used color altering mainly in the first two shots because they were to yellow. Now they are much darker and the blue/purple look gives that evening feeling.



This is a great video!  Nice pacing, music matches very well, and the story is short but concise.  I don't think you really need to sharpen the footage.  In fact with the "noise" grain and a little softer edges, the footage looks very good, it doesn't look "video".  I think really sharp edges can be too clinical.  For something like this piece, sure the closeups (bag, sewing machine) should be sharp, but face closeups, wide shots can be softer.  Overall I think you did a really great job!

[wotsisname]

Hi all,

I am confused about the 50mbps / 72mbps date rate that the GH3 supposedly records at.

My footage, recorded as H264 MOV files in either of these high bit rates, is listed in FCP as between 5.8mbps and 8.5mbps. Analysing the footage with cinema tools reveals the same data rate - not the 50 / 72 it should be.

If I convert the files to ProRes I get the higher data rates - around 30 - 60mbps. Although this is closer, and sometimes in excess of the data rate I want, am I not merely up-resing the footage? The new date rate might be higher, but if it is not what the camera recorded, the information isn't t there.

I am also confused about the colour management. My h264 footage has a colour profile of 1-1-1. Is that the best I can get? I read somewhere that the GH3 will record 2-4-1. How do I set that?

Again up-resing to prores 422 or 444 will not introduce colours that are not recorded in the first place!

I look forward to hearing people's thoughts.

Jules
