Dr. Verbel' Posted September 11, 2016 Share Posted September 11, 2016 Test 35NAP 2-3M. Not bad for old soviet projector lens p.s. no program sharp Juank 1 Quote Link to comment Share on other sites More sharing options...
Flynn Posted September 11, 2016 Share Posted September 11, 2016 Love those flares. I guess this is 2x? Just looked it up on ebay and these lenses are pretty cheap but huge. What kind of setup are you using? Quote Link to comment Share on other sites More sharing options...
Dr. Verbel' Posted September 11, 2016 Author Share Posted September 11, 2016 51 minutes ago, Flynn said: Love those flares. I guess this is 2x? Just looked it up on ebay and these lenses are pretty cheap but huge. What kind of setup are you using? Hi! Yes, 2x, but in this distance (1m ~ 3 ft) stretching less than 2x. Now I use this construction. Setup written in video. But it's very heavy for me and my back, if I don't use a tripod :-( but the cheapest solution I'm working on a lightweight design and single focus (make from 2x to 1.33x, if possible) for this lens. Flynn 1 Quote Link to comment Share on other sites More sharing options...
Flynn Posted September 11, 2016 Share Posted September 11, 2016 Vova's the man! Fantastic work. Dr. Verbel' 1 Quote Link to comment Share on other sites More sharing options...
Dr. Verbel' Posted September 11, 2016 Author Share Posted September 11, 2016 52 minutes ago, Flynn said: Vova's the man! Fantastic work. I will give your regards to Vova Now his brother Arthur help me, because he have a lathe ))) Flynn 1 Quote Link to comment Share on other sites More sharing options...
Dr. Verbel' Posted September 11, 2016 Author Share Posted September 11, 2016 Some footage right now from 35nap 2-4. This lens almost identical to 35nap 2-3m, little smaller, little difference with light streaks. Minimum focusing distance I have 50 cm Juank and Bold 2 Quote Link to comment Share on other sites More sharing options...
Dr. Verbel' Posted September 12, 2016 Author Share Posted September 12, 2016 transformers like Juank and Bold 2 Quote Link to comment Share on other sites More sharing options...
Flynn Posted September 12, 2016 Share Posted September 12, 2016 Love the bokeh. Juank and Dr. Verbel' 2 Quote Link to comment Share on other sites More sharing options...

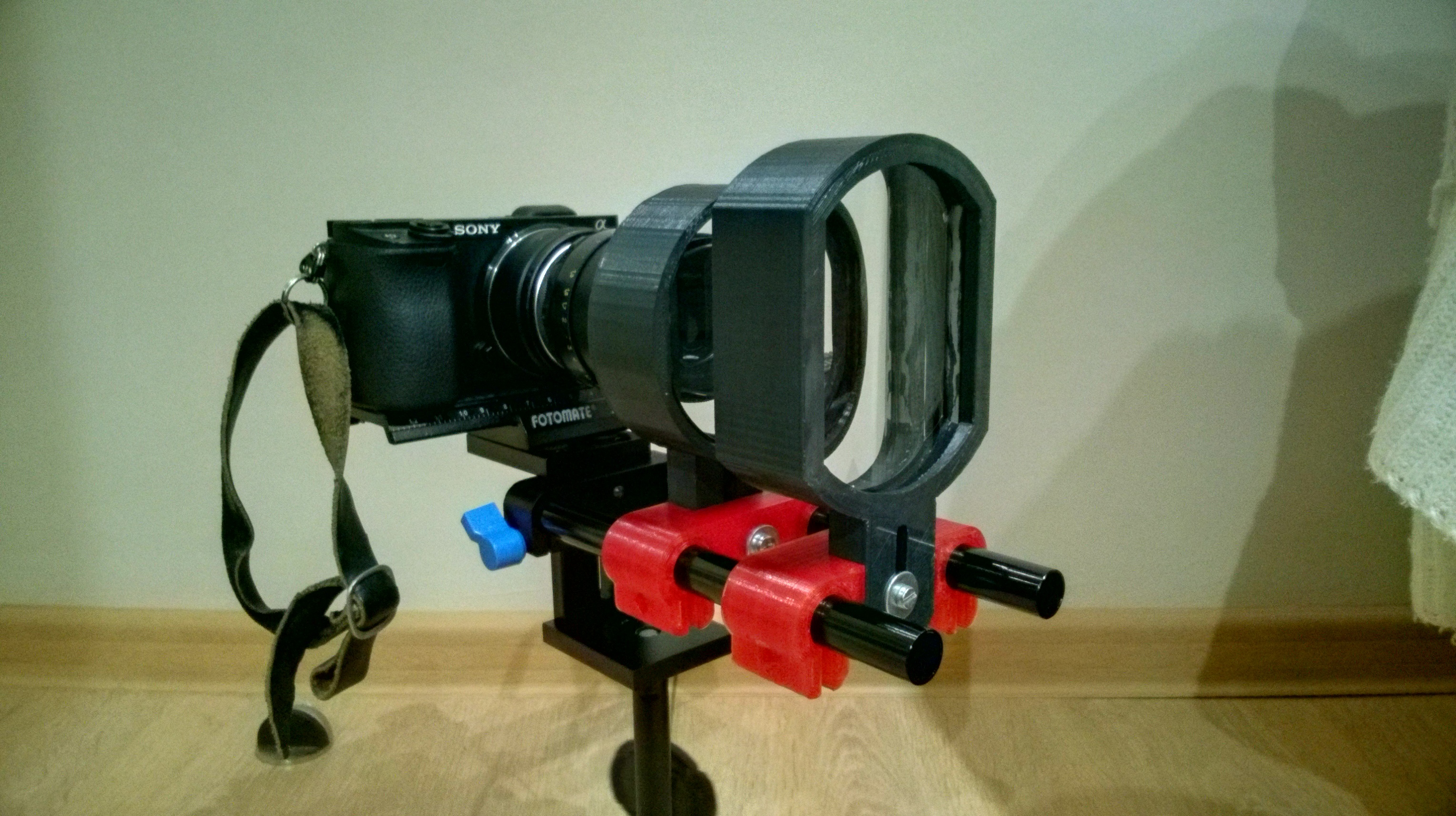

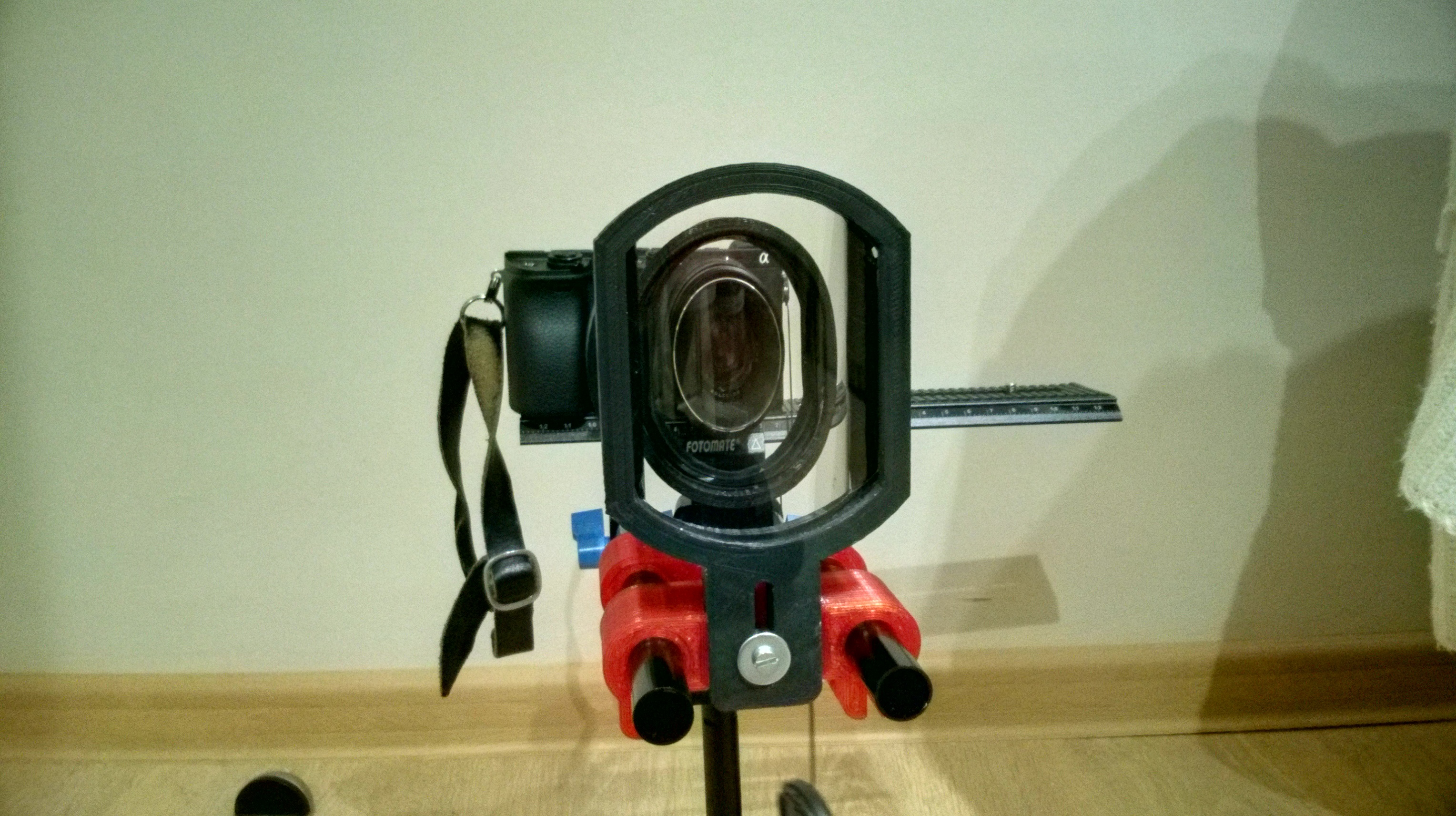

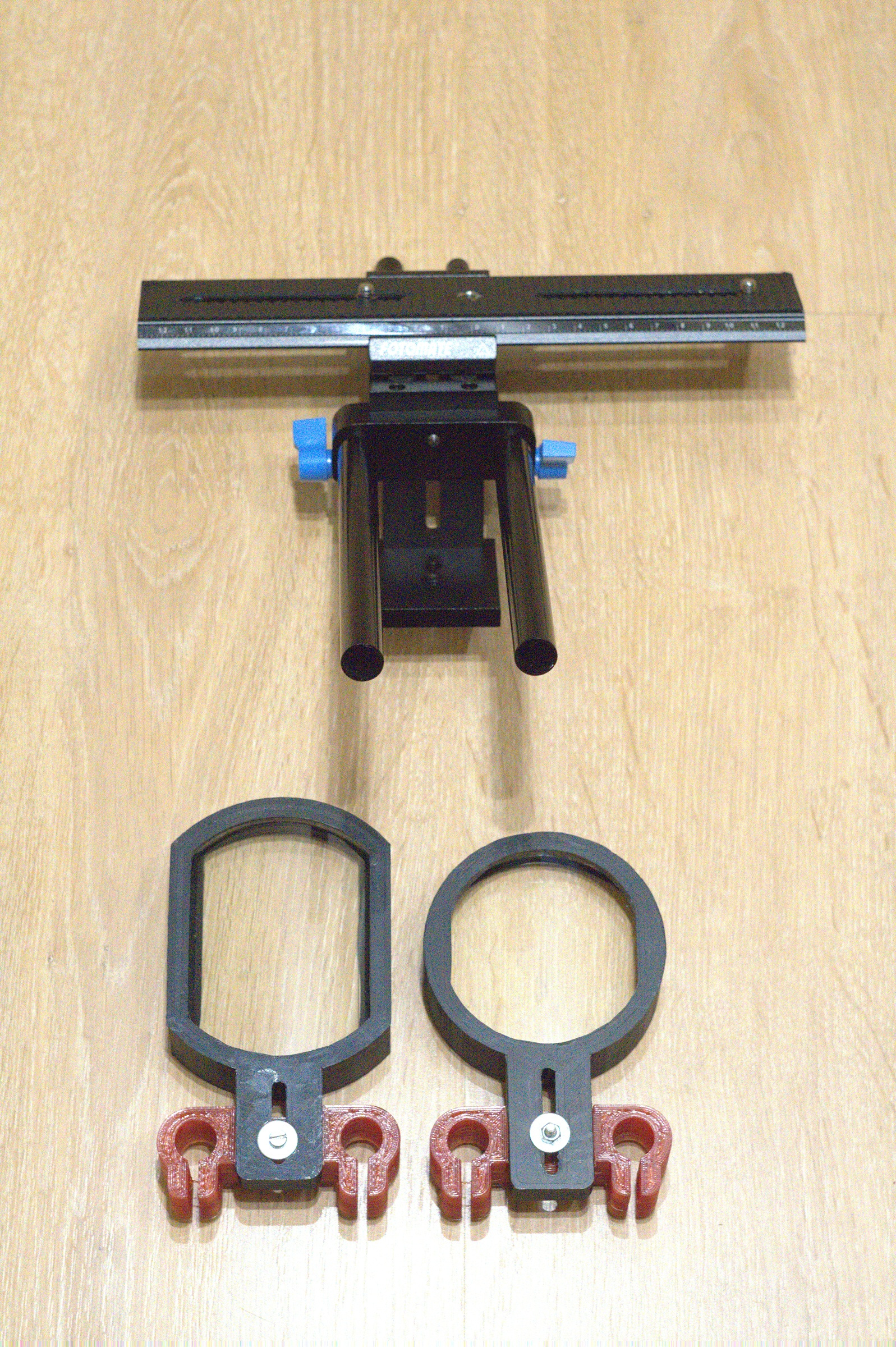

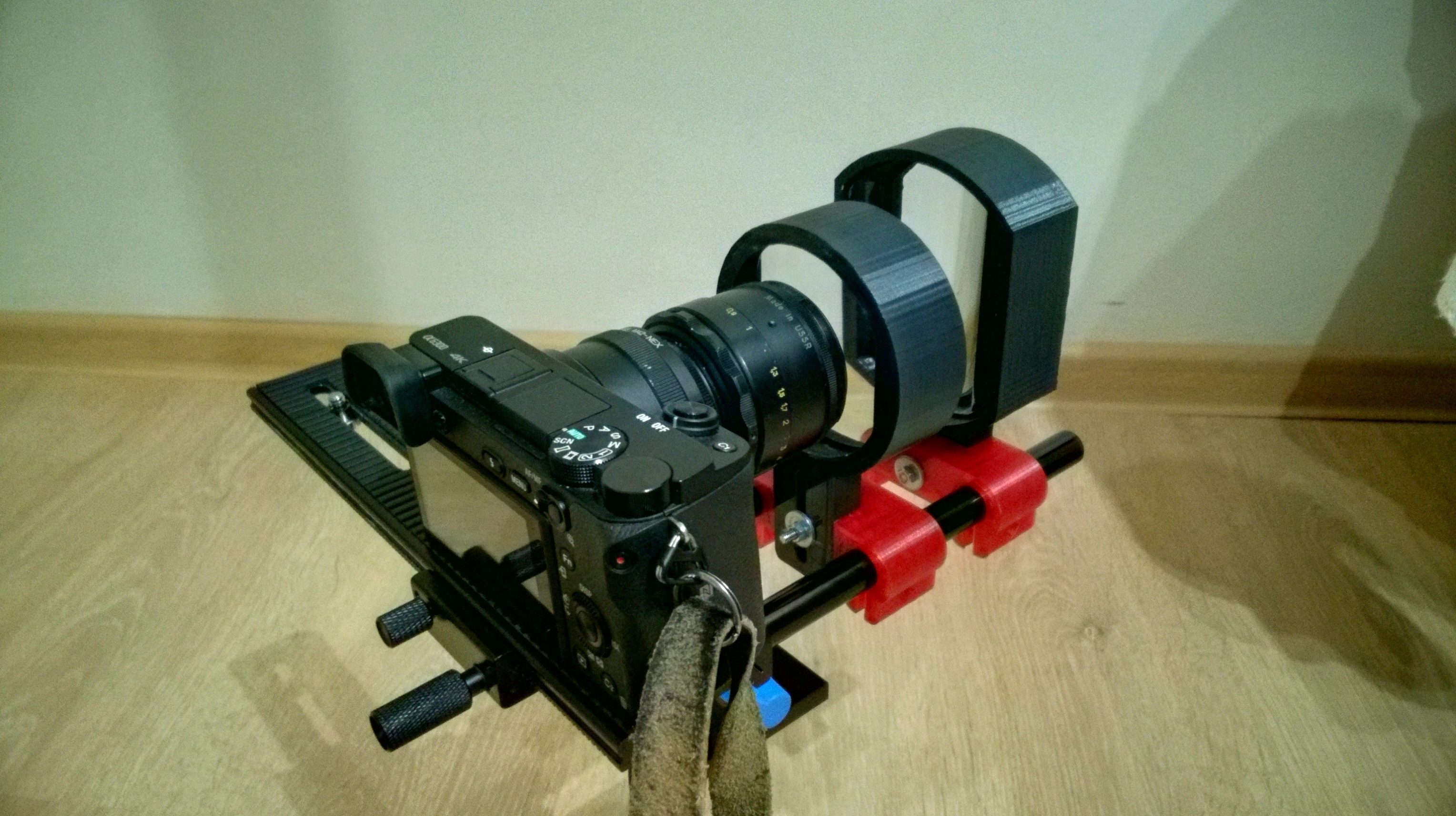

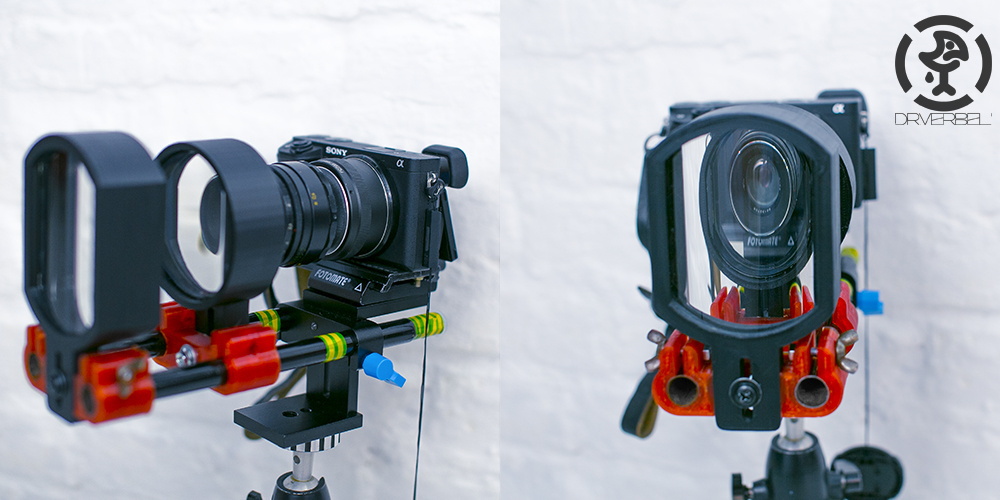

Dr. Verbel' Posted September 22, 2016 Author Share Posted September 22, 2016 little upgrade of 35nap 2-3m. lighter weight, 3D-printed mount lens. test shots exact proportions only, no sharping. single focus in search. sony a6300, helios 44-2 f:2 (open aperture) Bold and Juank 2 Quote Link to comment Share on other sites More sharing options...
Dr. Verbel' Posted September 23, 2016 Author Share Posted September 23, 2016 Some useful links, parts of construction: Camera accessories Fotomate LP-02 high quality 200mm Range 2-Way Macro Focusing Rail Slider Plate 1/4 Screw for DSLR Camera http://bit.ly/2cxUkuH Photo Studio Accessories aluminium alloy Rail System 15mm Rod Rig Grundplatte Mount for DSLR Follow Focus Rig 5D2 5D3 http://bit.ly/2cxVqqi 2pcs 40cm Length 15mm Diameter Black Aluminum Alloy Rod Rail Mount for Canon Nikon DSLR Camera Camcorder DV Rig Cage http://bit.ly/2deflc7 FOTGA DP3000 M1 Steady Shoulder Support Pad For DSLR Rod System 15mm Rig NI5L http://bit.ly/2dogf9s Drawings by Alexey Bravo AlexKubrak85@gmail.com. All questions to him. Necessary before printing checks all sizes to fit your lens and mount Flynn and Juank 2 Quote Link to comment Share on other sites More sharing options...

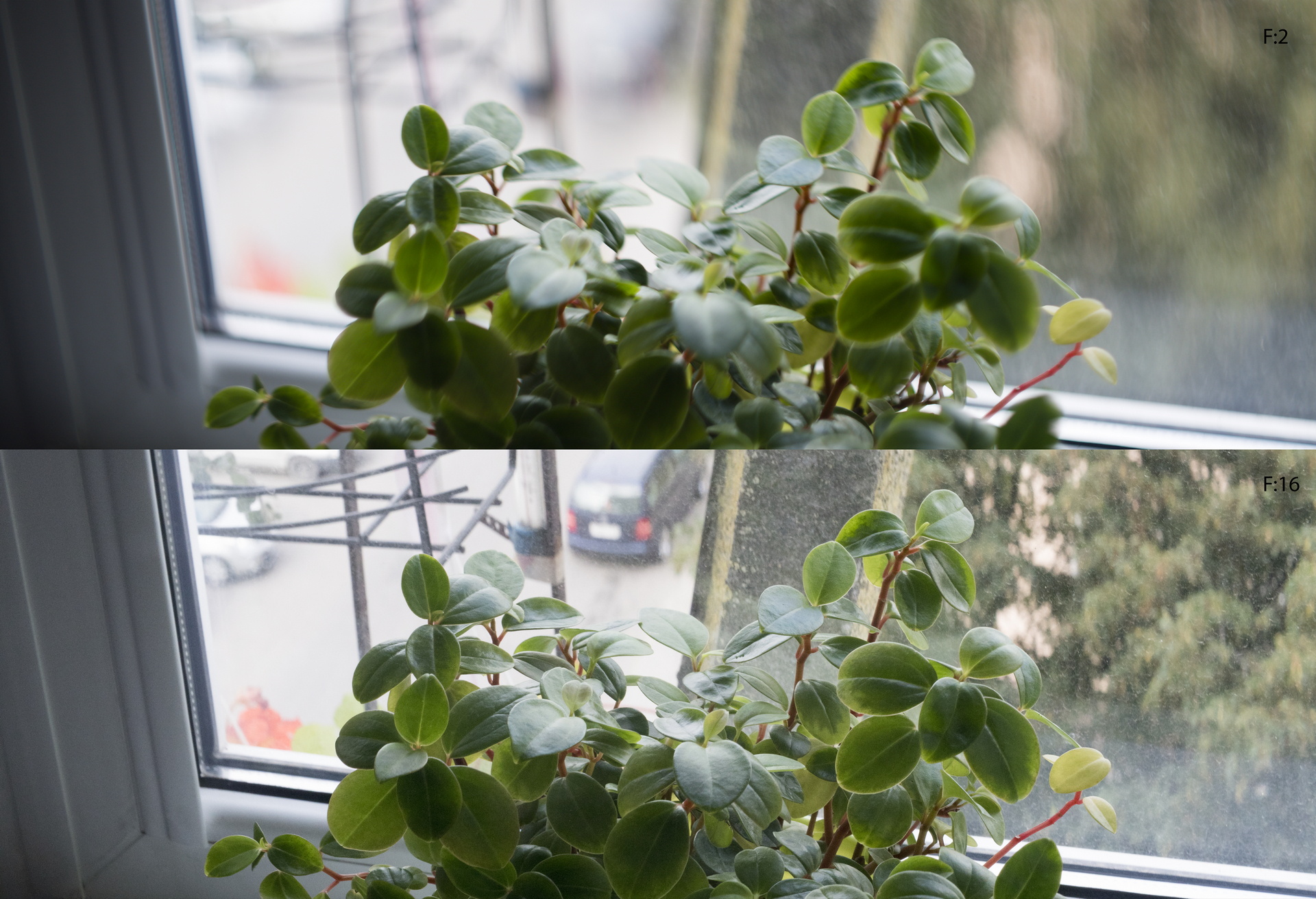

Dr. Verbel' Posted September 26, 2016 Author Share Posted September 26, 2016 35NAP 2-3M lenses. New tests & additions. Little vignette in infinity, can be removed, cropping to 2:35:1. Sony a6300 (crop), Helios 44-2 58mm funkyou86, Juank and Flynn 3 Quote Link to comment Share on other sites More sharing options...
Justin Bacle Posted September 26, 2016 Share Posted September 26, 2016 well, that is very impressive ! I think I'll try and do something similar with mine Juank and Dr. Verbel' 2 Quote Link to comment Share on other sites More sharing options...
Dr. Verbel' Posted September 26, 2016 Author Share Posted September 26, 2016 test in field after work Bold, Justin Bacle, Flynn and 1 other 4 Quote Link to comment Share on other sites More sharing options...
Flynn Posted September 27, 2016 Share Posted September 27, 2016 Damn, that is looking good. Is that snow on the ground in the last picture? Dr. Verbel' and Juank 2 Quote Link to comment Share on other sites More sharing options...
Justin Bacle Posted September 27, 2016 Share Posted September 27, 2016 This looks great ! These flares are Epic ! Is focusing easy enough ? Is there any chance you could share the 3d files for 3D printing so that I can use it as a base design for mine (after verifying dimensions) ? Quote Link to comment Share on other sites More sharing options...

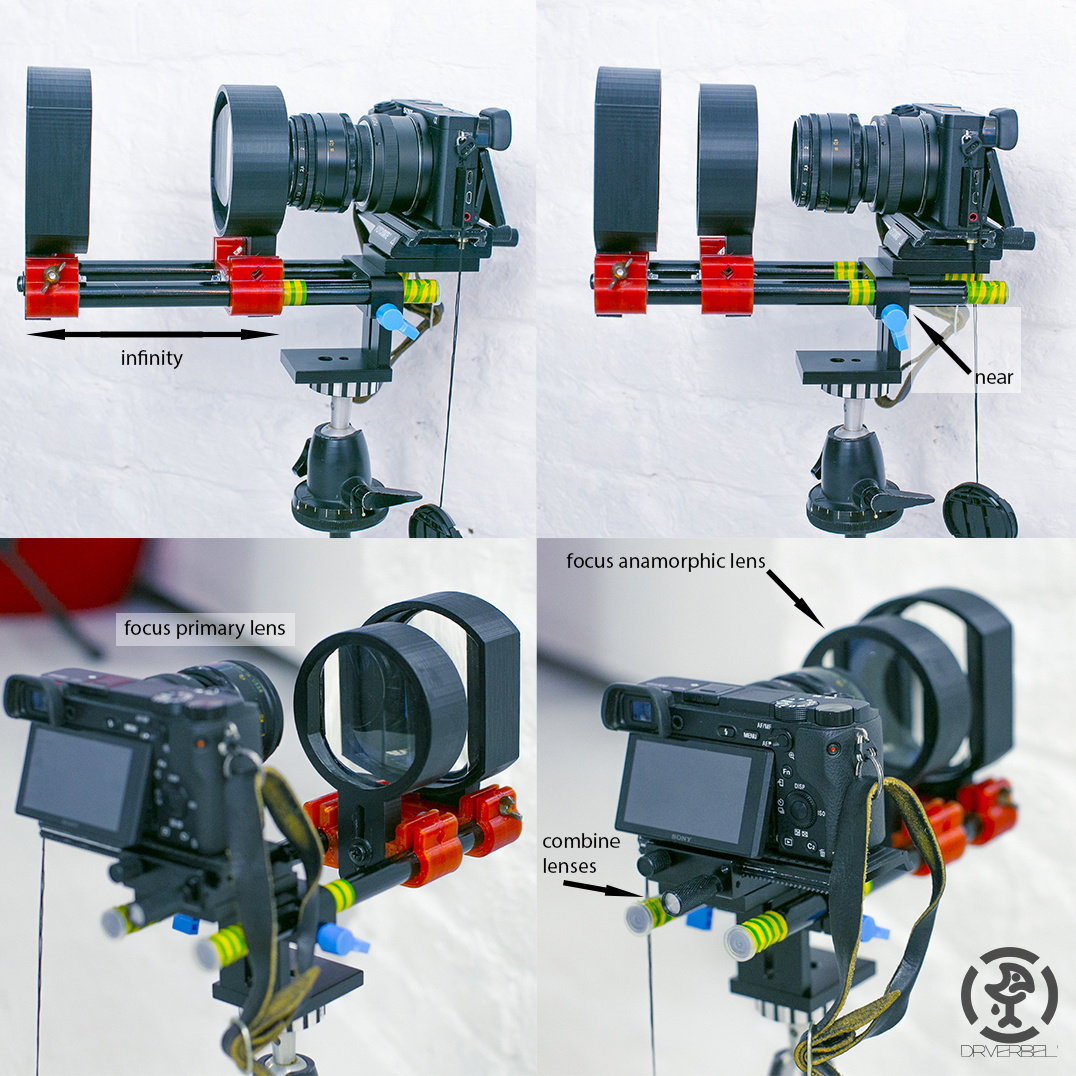

Dr. Verbel' Posted September 27, 2016 Author Share Posted September 27, 2016 1 hour ago, Flynn said: Damn, that is looking good. Is that snow on the ground in the last picture? Thanks! No, so much grading. Overdose 1 hour ago, Justin Bacle said: This looks great ! These flares are Epic ! Is focusing easy enough ? Is there any chance you could share the 3d files for 3D printing so that I can use it as a base design for mine (after verifying dimensions) ? Thanks! For double focus bearable :-) Focus prime lens, combine with anamorphic lens, lock position of the camera, focus in my case rear anamorphic lens. Front lens locked. You may lock rear, move for focus front lens. In future I will make bellows, because in some cases rear and side light prevents the image. For accurate lens positioning is sometimes necessary to sway one of the lens slightly to the left and right. Sorry, I couldn't share. Drawings by Alexey Bravo AlexKubrak85@gmail.com. All questions to him. Necessary before printing CHECKS all sizes to fit your lens and mount. 3D complete filling for printing. For black frames solid plastic, for mount (red in my case) more plastic plastic ))) Justin Bacle 1 Quote Link to comment Share on other sites More sharing options...
Dr. Verbel' Posted September 27, 2016 Author Share Posted September 27, 2016 Last series shots today. funkyou86, Justin Bacle and Flynn 3 Quote Link to comment Share on other sites More sharing options...
Flynn Posted September 27, 2016 Share Posted September 27, 2016 Those flares are really awesome. Dr. Verbel' 1 Quote Link to comment Share on other sites More sharing options...
Dr. Verbel' Posted September 28, 2016 Author Share Posted September 28, 2016 source image, no process Flynn 1 Quote Link to comment Share on other sites More sharing options...

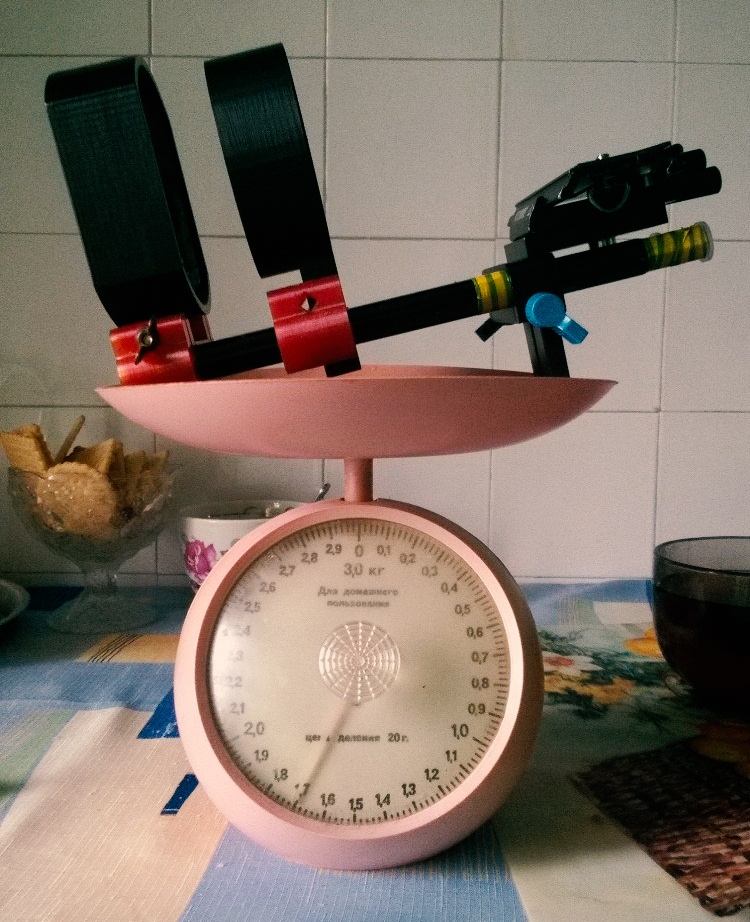

Dr. Verbel' Posted September 30, 2016 Author Share Posted September 30, 2016 Weighed design 1.7 kg / 3.75 lb . Lenses in rims weigh around 1 kg / 2.2 lb. Justin Bacle 1 Quote Link to comment Share on other sites More sharing options...
