35NAP 2-3M (mod) – precision, light streaks, bokeh


Dr. Verbel'
 Share

Recommended Posts

EOSHD Pro Color 5 for Sony cameras EOSHD Z LOG for Nikon CamerasEOSHD C-LOG and Film Profiles for All Canon DSLRs

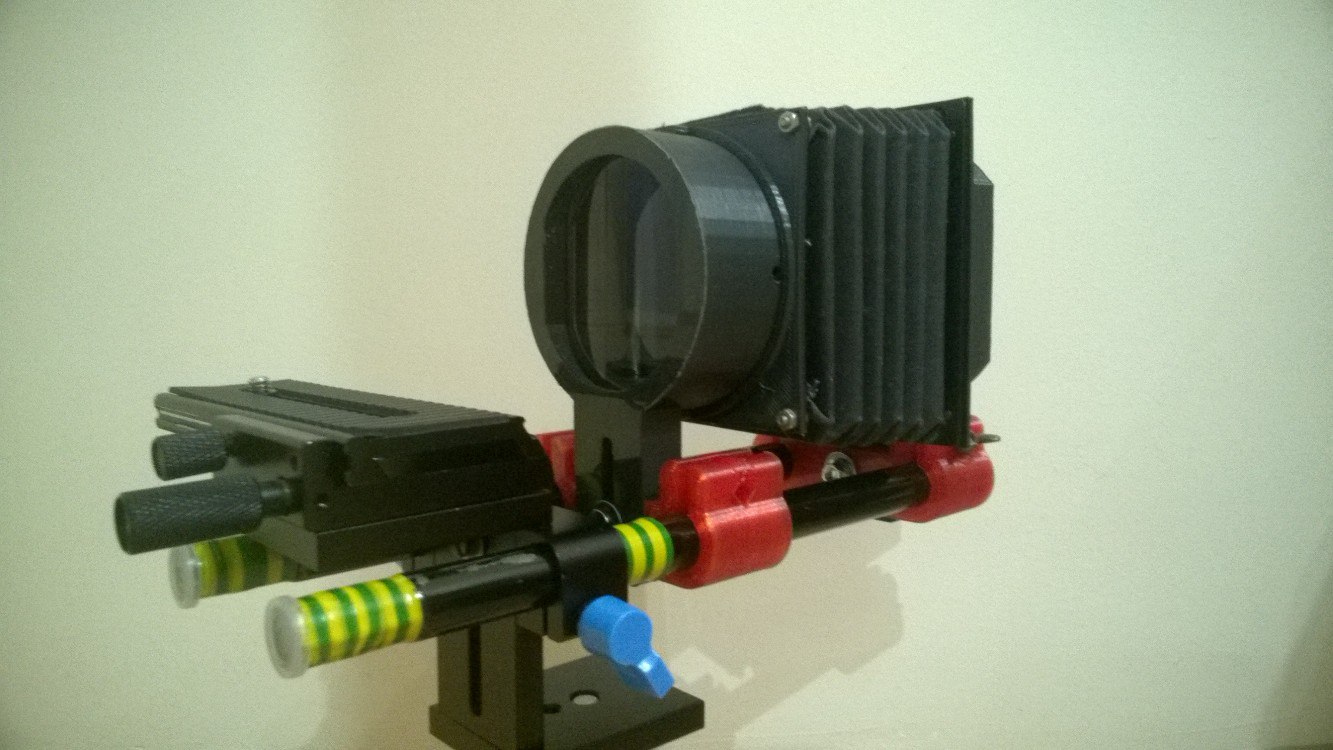

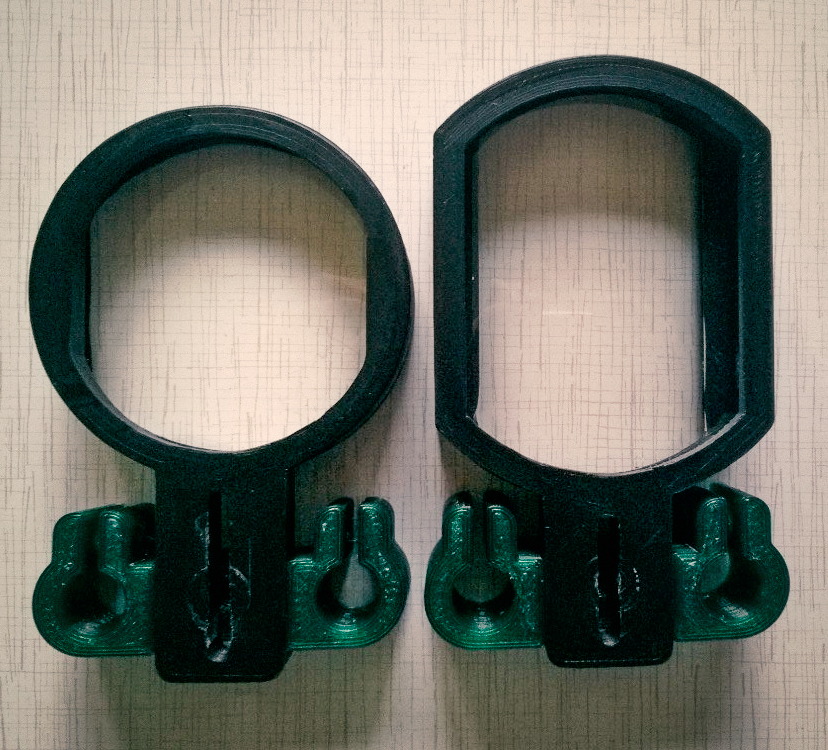

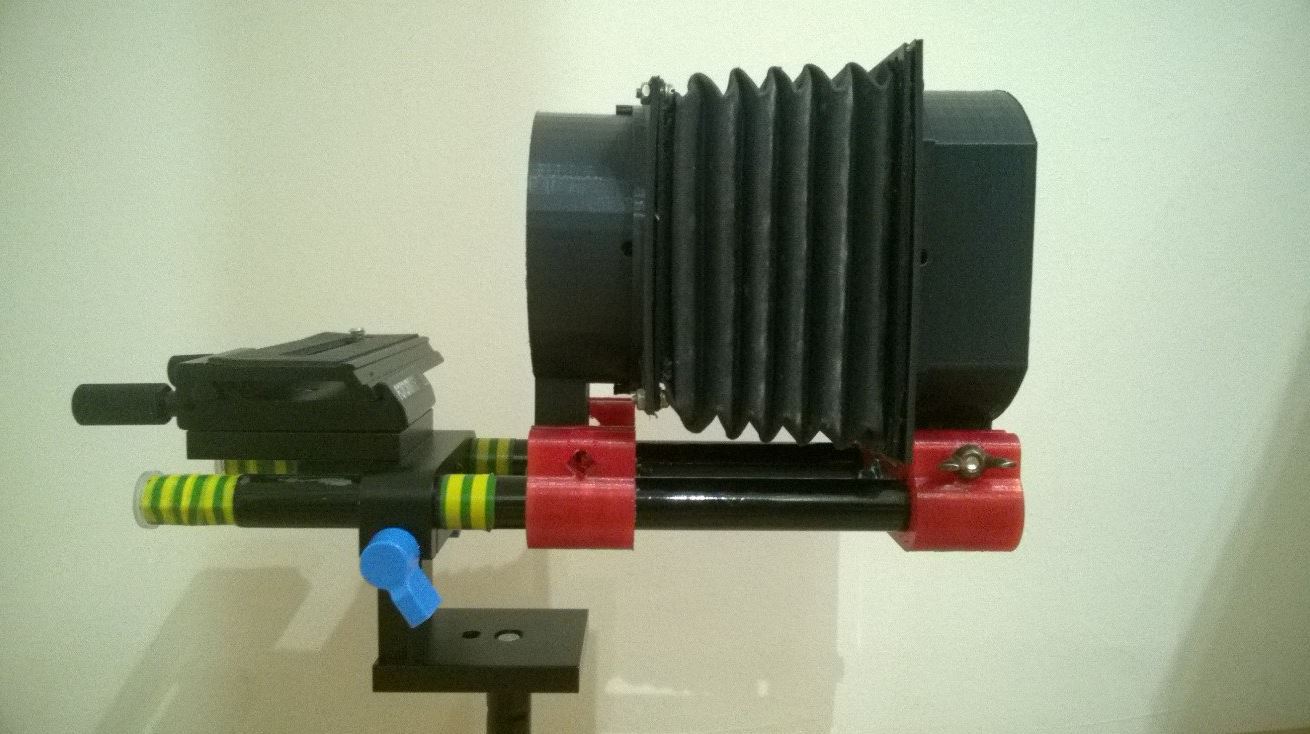

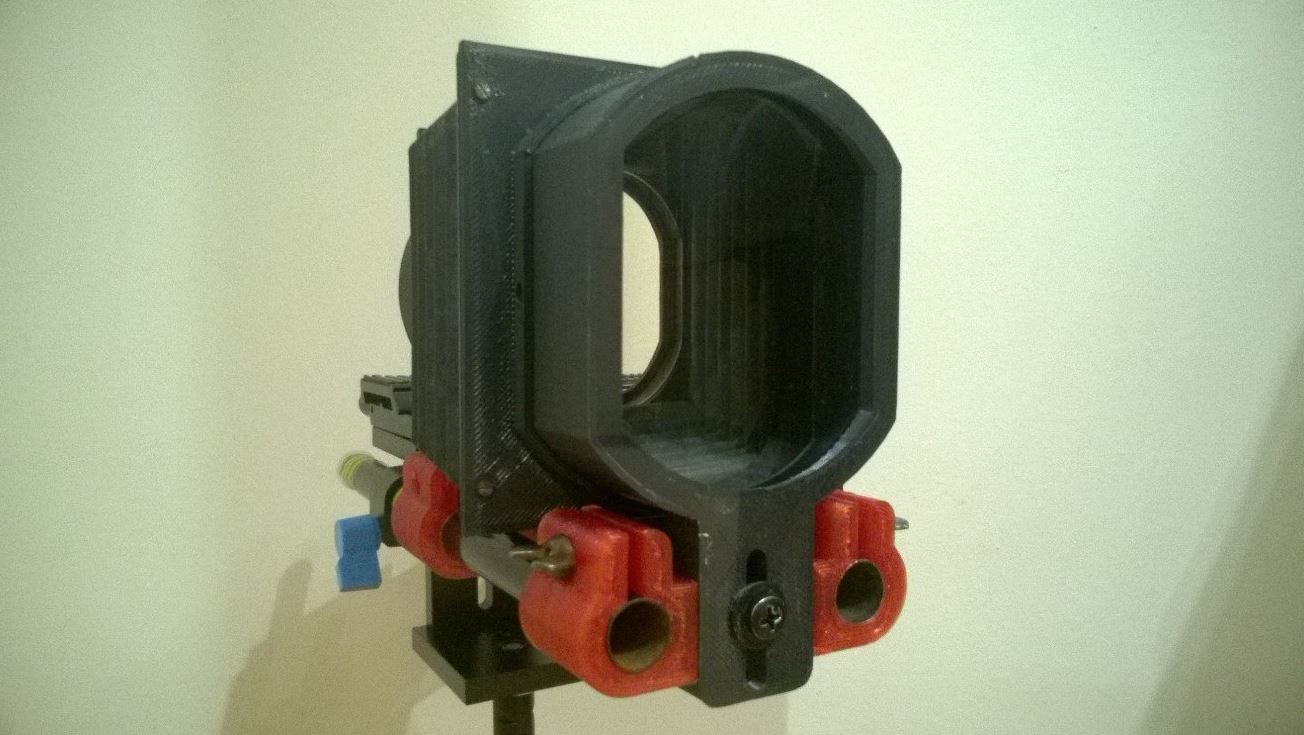

Hi! Yes! I think, it will work with any bulky anamorphic projector lenses. You must carefully remove the lens first. if they are not folding rims, and then leave. Make a drawing frames to suit your lens and configuration. Print a 3D-model and everything is ready. Adjustments of lenses in my video with English subs (first configuration, not so easy construction, but ready to work also) at 14:02

12 minutes ago, Juank said:

Woaw

amazing job !!!

keep it going !!!

Do you thing it will work with my Moller 63X2 ?

Capture d’écran 2016-10-06 à 13.48.26.png



Link to comment
Share on other sites

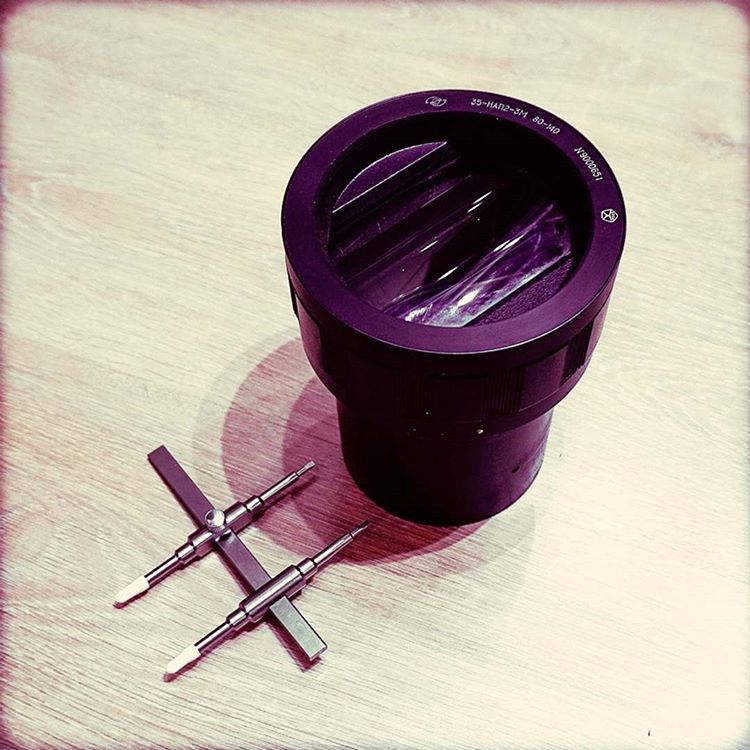

Justin Bacle, do you have the same 35nap 2-3m, as on photo? I'm interested, which logo on it (on the left side). Different factories in USSR produce these lenses with same name 35nap 2-3m. Little differences in body construction.


Do you saw small hole on the frame's side? small screw lock big nut.


Link to comment
Share on other sites

10 hours ago, Dr. Verbel' said:

Lenses from modifications 35NAP. All my own... yet :grimace:





How much the front lens weight?  If less than 350G, I am interested in it.

15 hours ago, Juank said:

Woaw

amazing job !!!

keep it going !!!

Do you thing it will work with my Moller 63X2 ?

Capture d’écran 2016-10-06 à 13.48.26.png

I can tell you this Ana lens's front lens is easy to take apart.  But rear lens is tricky, you need to make a special tool to unscrew it.  Because it is in too deep.

Link to comment
Share on other sites

15 hours ago, Dr. Verbel' said:

Justin Bacle, do you have the same 35nap 2-3m, as on photo? I'm interested, which logo on it (on the left side). Different factories in USSR produce these lenses with same name 35nap 2-3m. Little differences in body construction.


Do you saw small hole on the frame's side? small screw lock big nut.


Mine doesn't look exactly the same :s

I am quite busy with shooting a music video this week-end but i'll send you photos asap

Link to comment
Share on other sites

7 minutes ago, Justin Bacle said:

Mine doesn't look exactly the same :s

I am quite busy with shooting a music video this week-end but i'll send you photos asap

no problem, I live now on this forum :grin: small hole on the side - frame from 35nap 2-4. if you have 35nap 2-3m as I think, fisrt - leave lenses in frames from body. Then leave lenses from frames much easier.

Link to comment
Share on other sites

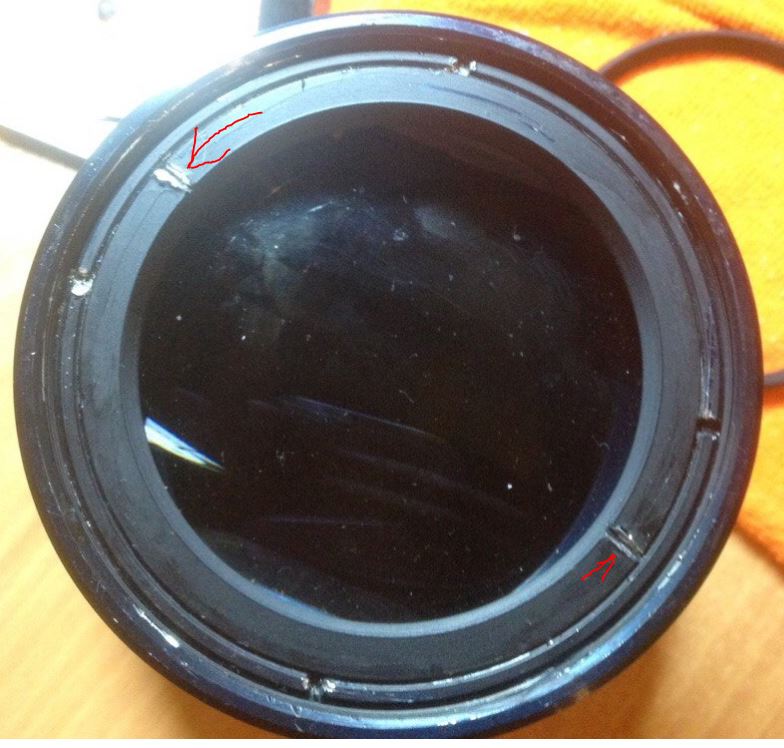

If I'm not mistaken, you have 35nap 2-3, LOMO version. Construction of body must be similar to 35nap 2-4 (also LOMO version). Must be small hole on the frame's side, in which small screw lock big nut.


One man also have this version and send to me several photos. Right version?





5 hours ago, Justin Bacle said:

Mine doesn't look exactly the same :s

I am quite busy with shooting a music video this week-end but i'll send you photos asap

may try internal nut. later man tell me exactly.


Link to comment
Share on other sites

8 hours ago, Dr. Verbel' said:

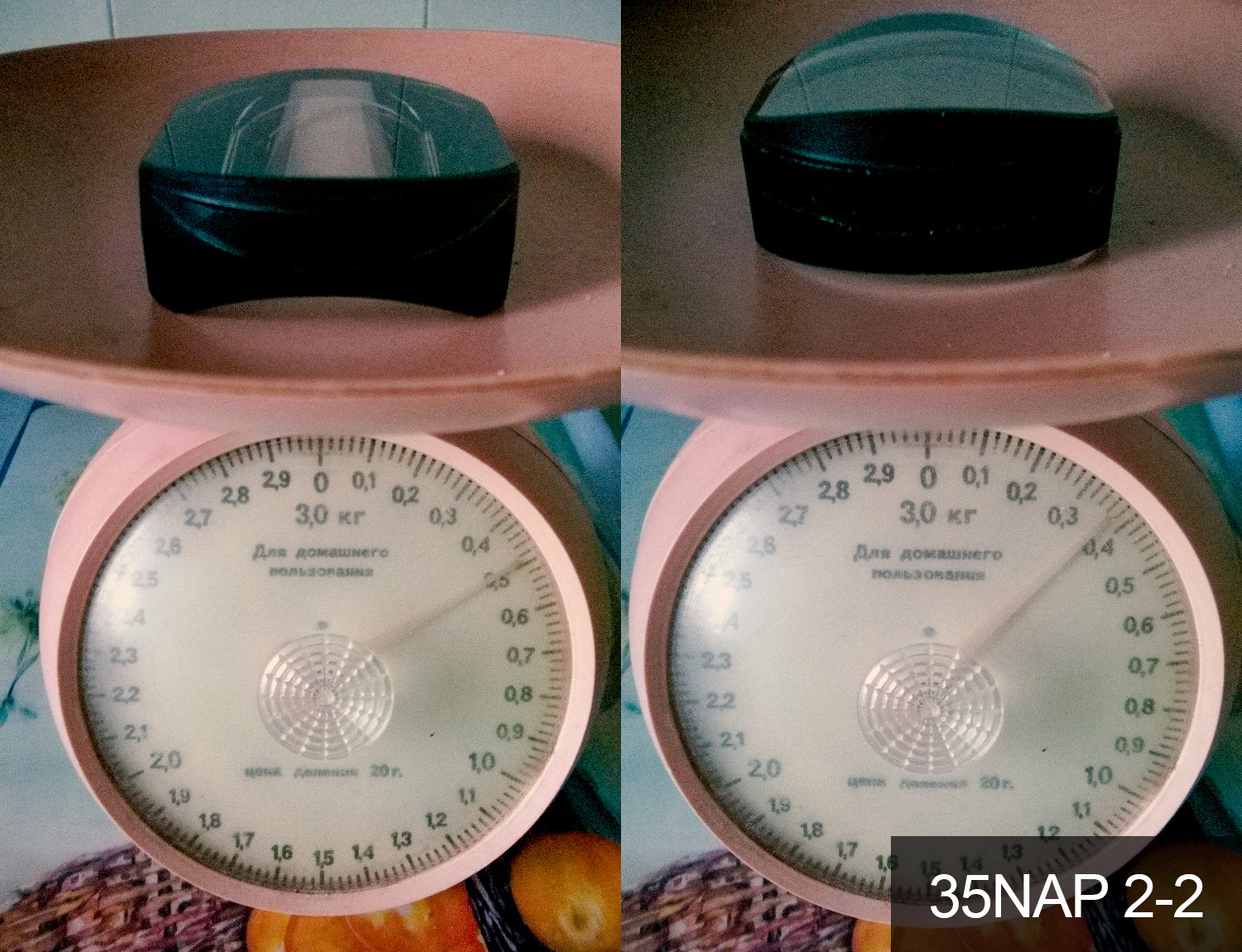

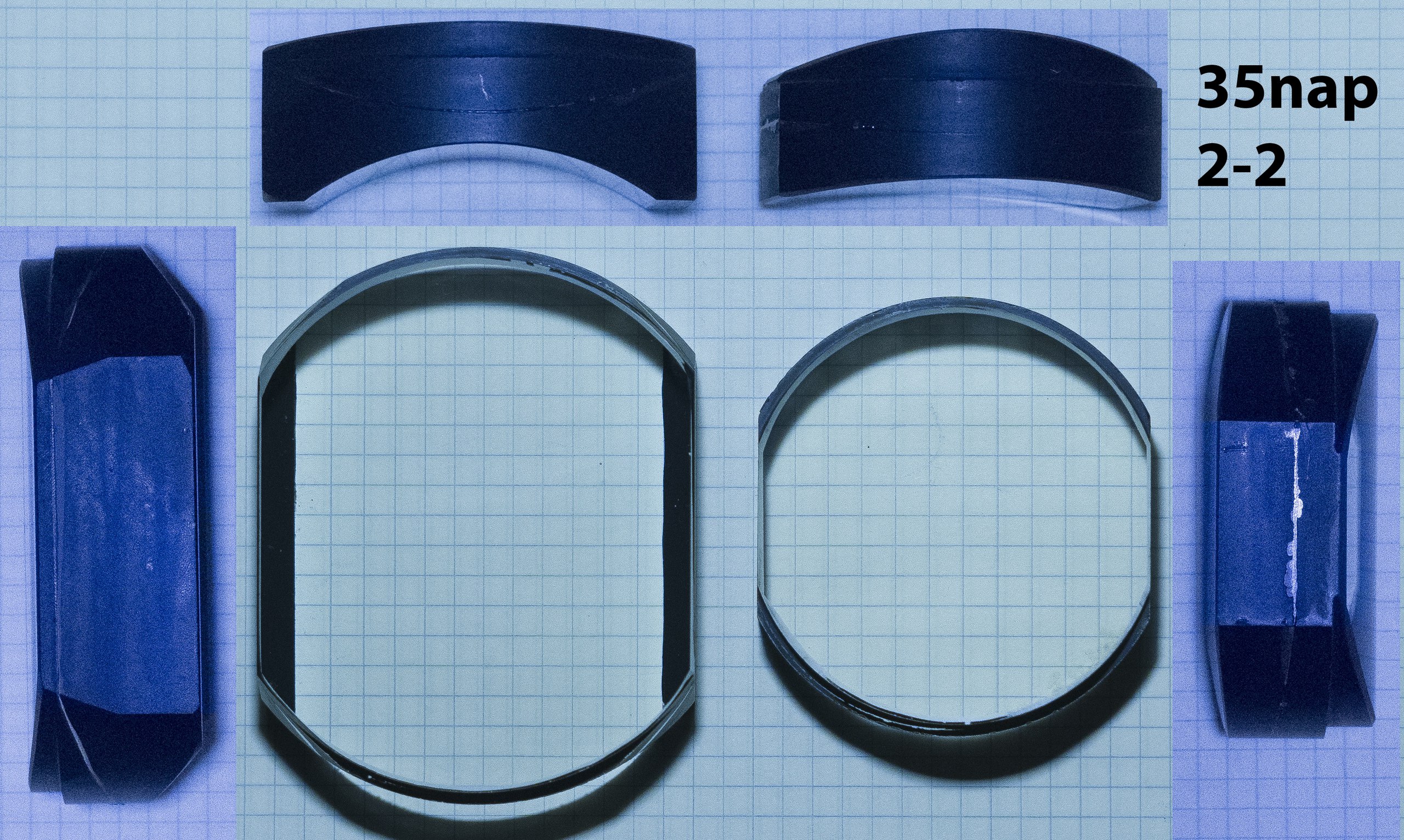

35nap 2-2 smaller than 35nap 2-3m. Weight you see... front lens around 500 g, rear 370 g. 35nap 2-3m lenses in sum near 1 kg




Hehe, too heavy to me.  I remembered the front glass of Moller 63/2x is around 0.47kg.

So I think the 46/2x or 48/2x lens are the best size for me.  The front glass is around 0.3kg range.  But the 32 lens is too small.

BTW, who knows what this number mean?  But I guess it maybe the rear glass size in mm, looks very close.
