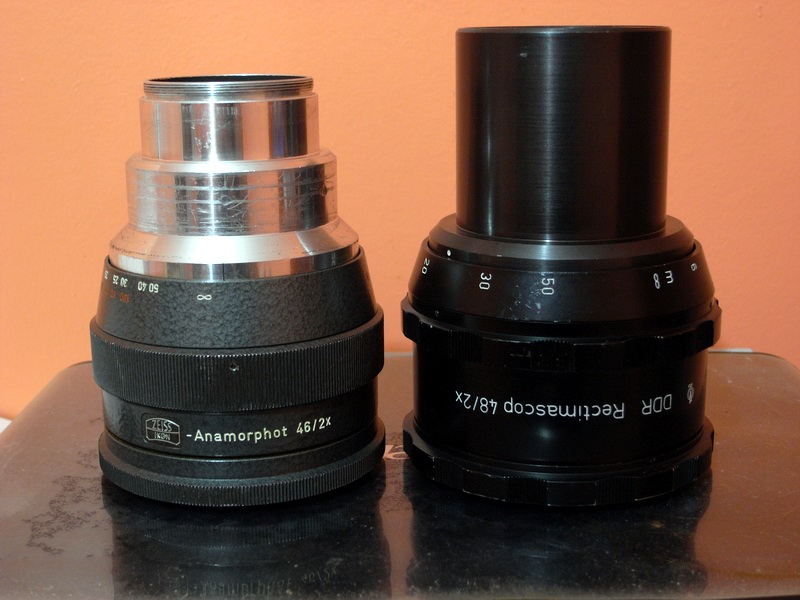

Dr. Verbel' Posted October 7, 2016 Author Share Posted October 7, 2016 Heavy, but cheapest :-) I have Rectimascop 80/2x, lenses very heavy in comparison with 35nap 2-3m. Front lens in cutted frame 900 g, rear 560 g. But light streaks very cool and very sharp from left to right. Number? I measured diameter rear lens of 80/2x, 80 mm. Your guess maybe right 39 minutes ago, ken said: Hehe, too heavy to me. I remembered the front glass of Moller 63/2x is around 0.47kg. So I think the 46/2x or 48/2x lens are the best size for me. The 32 lens is too small. BTW, who knows what this number mean? But I guess it maybe the rear glass size in mm, looks very close. Quote Link to comment Share on other sites More sharing options...
Dr. Verbel' Posted October 10, 2016 Author Share Posted October 10, 2016 Some edited photos. Just for fun Justin Bacle and Juank 2 Quote Link to comment Share on other sites More sharing options...
Justin Bacle Posted October 11, 2016 Share Posted October 11, 2016 On jeudi 6 octobre 2016 at 6:34 PM, Dr. Verbel' said: Justin Bacle, do you have the same 35nap 2-3m, as on photo? I'm interested, which logo on it (on the left side). Different factories in USSR produce these lenses with same name 35nap 2-3m. Little differences in body construction. Do you saw small hole on the frame's side? small screw lock big nut. Okay, thanks for all the precious information. Here are photos of mine : https://goo.gl/photos/eNyhafsjAgYWX3ac8 I did remove the tiny screws (3 of them) from the back, to unlock the back ring. No matter how hard I tried to unscrew it, I cannot unscrew the back ring. I did put some WD-40 on the theads yesterday, so I might have a bit more luck this evening ... but I'm not feeling confident about it :s On vendredi 7 octobre 2016 at 3:22 PM, Dr. Verbel' said: If I'm not mistaken, you have 35nap 2-3, LOMO version. Construction of body must be similar to 35nap 2-4 (also LOMO version). Must be small hole on the frame's side, in which small screw lock big nut. As you can see, there was so much tape on mine that I didn't even noticed the retaining screws on the back :D Quote Link to comment Share on other sites More sharing options...
Dr. Verbel' Posted October 11, 2016 Author Share Posted October 11, 2016 Hmmmm... man with the same 35nap 2-3 told me, that he easy unscrew back ring. he unscrew counterclockwise internal ring and pulled back the lens... Is a side screws on the body?.. Maybe he tell something wrong with which ring unscrewing, internal or external, but now he make construction as my with his removed lenses :-) Do you got front lens? 21 minutes ago, Justin Bacle said: Okay, thanks for all the precious information. Here are photos of mine : https://goo.gl/photos/eNyhafsjAgYWX3ac8 I did remove the tiny screws (3 of them) from the back, to unlock the back ring. No matter how hard I tried to unscrew it, I cannot unscrew the back ring. I did put some WD-40 on the theads yesterday, so I might have a bit more luck this evening ... but I'm not feeling confident about it :s As you can see, there was so much tape on mine that I didn't even noticed the retaining screws on the back :D Quote Link to comment Share on other sites More sharing options...
Justin Bacle Posted October 11, 2016 Share Posted October 11, 2016 16 minutes ago, Dr. Verbel' said: Hmmmm... man with the same 35nap 2-3 told me, that he easy unscrew back ring. he unscrew counterclockwise internal ring and pulled back the lens... Is a side screws on the body?.. Maybe he tell something wrong with which ring unscrewing, internal or external, but now he make construction as my with his removed lenses :-) Do you got front lens? The front ring should come easily too ? No tiny locking screws ? My LOMO is certainly very hard to unscrew then, because I can't unscrew the front neither :s Quote Link to comment Share on other sites More sharing options...
Dr. Verbel' Posted October 11, 2016 Author Share Posted October 11, 2016 Yes. Only side screw, which lock front ring. Then unscrew counterclockwise ring and all, finita la commedia! 40 minutes ago, Justin Bacle said: The front ring should come easily too ? No tiny locking screws ? My LOMO is certainly very hard to unscrew then, because I can't unscrew the front neither :s Quote Link to comment Share on other sites More sharing options...
Justin Bacle Posted October 11, 2016 Share Posted October 11, 2016 2 minutes ago, Dr. Verbel' said: Yes. Only side screw, which lock front ring. Then unscrew counterclockwise ring and all, finita la commedia! Man I didn't see a side screw on the front. I must be blind :D Quote Link to comment Share on other sites More sharing options...
Dr. Verbel' Posted October 11, 2016 Author Share Posted October 11, 2016 Hmmm... You must unscrew this first. p.s. I was able to help than... 4 minutes ago, Justin Bacle said: Man I didn't see a side screw on the front. I must be blind :D Quote Link to comment Share on other sites More sharing options...
Justin Bacle Posted October 11, 2016 Share Posted October 11, 2016 3 minutes ago, Dr. Verbel' said: Hmmm... You must unscrew this first Okay I'll try this evening Dr. Verbel' 1 Quote Link to comment Share on other sites More sharing options...

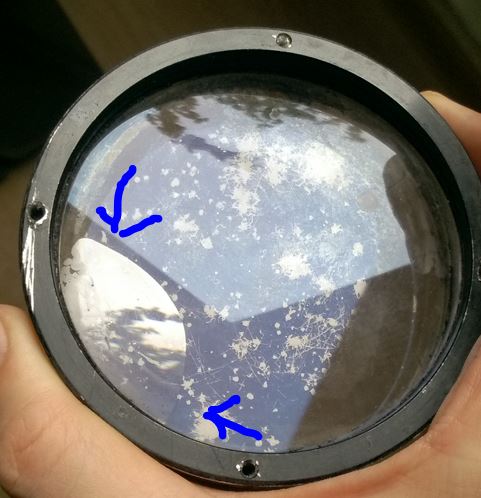

Dr. Verbel' Posted October 11, 2016 Author Share Posted October 11, 2016 Caution! WD-40 may ingrained between the cemented lenses... on the pic died lens from another Rectimascop 80/2x. It is not a pity, because she was so dead from fungus. But the possibility may be after WD-40. Maybe yes, maybe no... 3 hours ago, Justin Bacle said: I did put some WD-40 on the theads yesterday, so I might have a bit more luck this evening ... but I'm not feeling confident about it :s Justin Bacle and Juank 2 Quote Link to comment Share on other sites More sharing options...
Justin Bacle Posted October 12, 2016 Share Posted October 12, 2016 I got the front element off yesterday but the back ring still wont unscrew. I did put even more WD-40 (because YOLO!) hopping for the best. (the front rign was very tight and difficult to unscrew, which makes me think that the adapter I got was in pretty bad shape :s) Dr. Verbel' 1 Quote Link to comment Share on other sites More sharing options...
Dr. Verbel' Posted October 12, 2016 Author Share Posted October 12, 2016 Don't give up! Half done! 13 minutes ago, Justin Bacle said: I got the front element off yesterday but the back ring still wont unscrew. I did put even more WD-40 (because YOLO!) hopping for the best. (the front rign was very tight and difficult to unscrew, which makes me think that the adapter I got was in pretty bad shape :s) Justin Bacle 1 Quote Link to comment Share on other sites More sharing options...

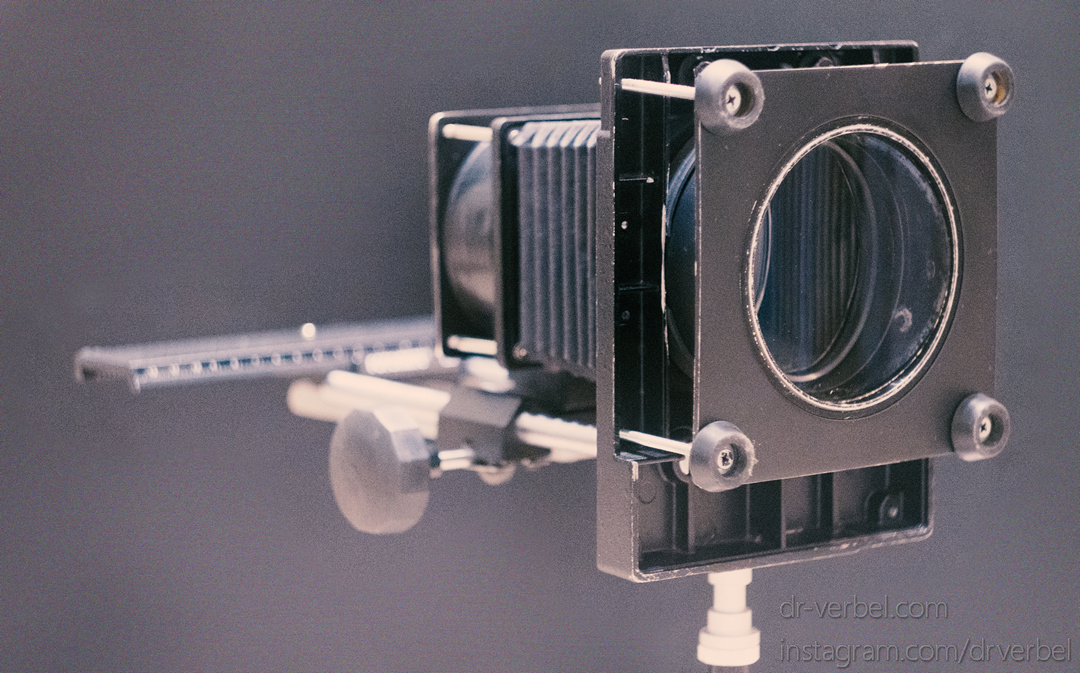

Dr. Verbel' Posted October 13, 2016 Author Share Posted October 13, 2016 Early test single focus for 35NAP... and for any bulky big projector lenses. Credits goes to this thread Quote Link to comment Share on other sites More sharing options...
artiswar Posted October 13, 2016 Share Posted October 13, 2016 Question, how far apart are the elements at infinity? Quote Link to comment Share on other sites More sharing options...

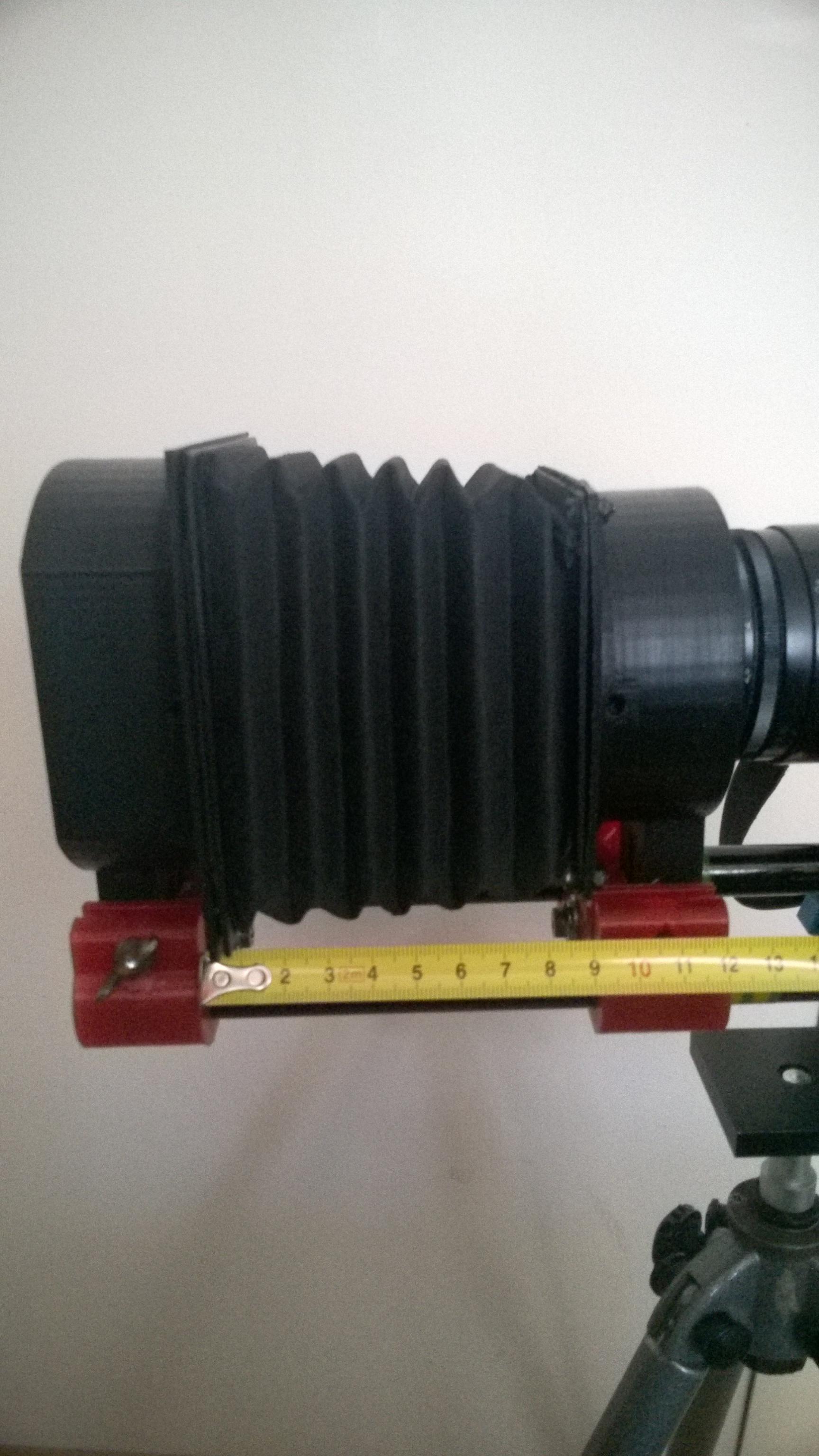

Dr. Verbel' Posted October 14, 2016 Author Share Posted October 14, 2016 artiswar, for 2-4 (2-3m) 9 cm / 3,543307 inch Juank 1 Quote Link to comment Share on other sites More sharing options...
Dr. Verbel' Posted October 14, 2016 Author Share Posted October 14, 2016 More successful test single focus. Quote Link to comment Share on other sites More sharing options...

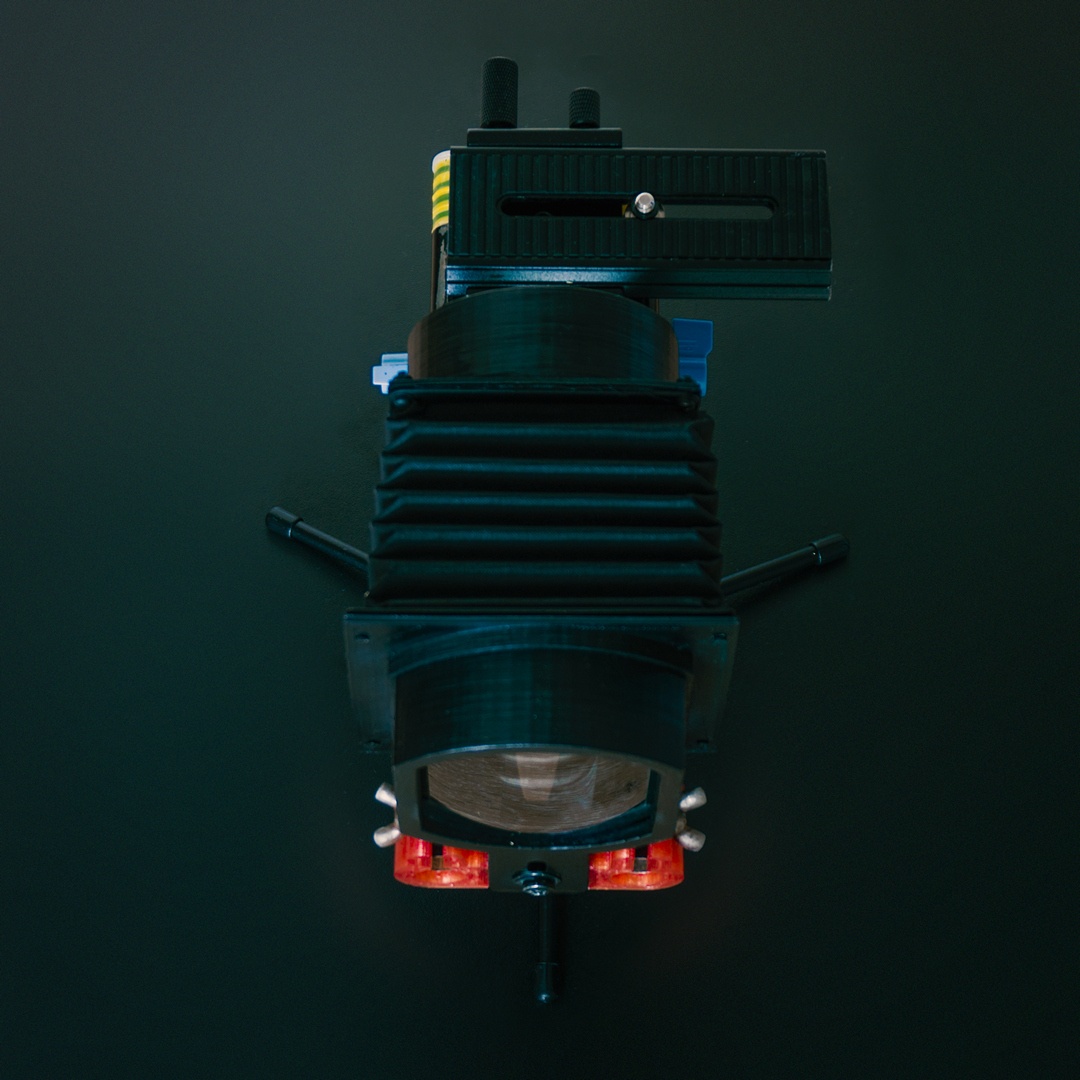

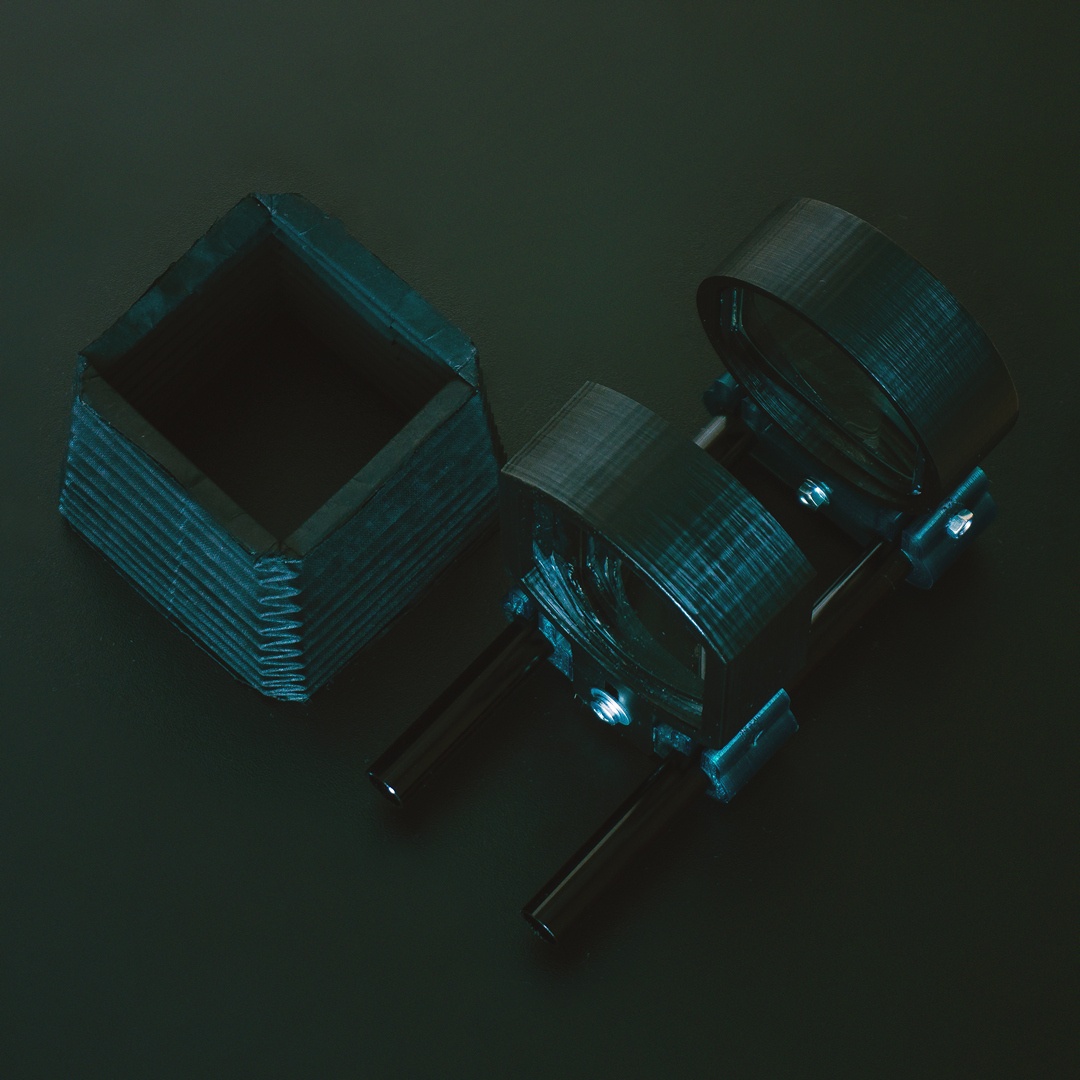

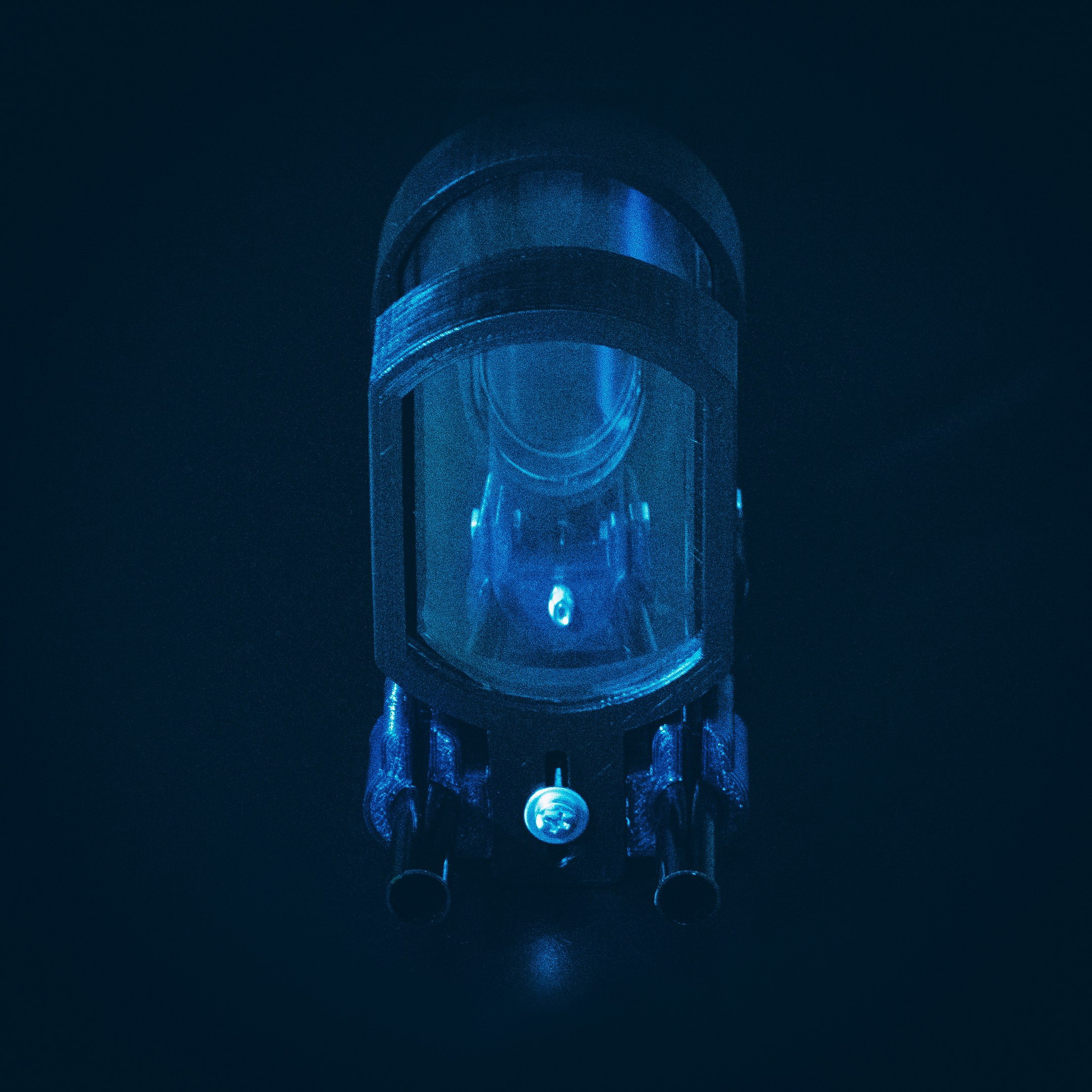

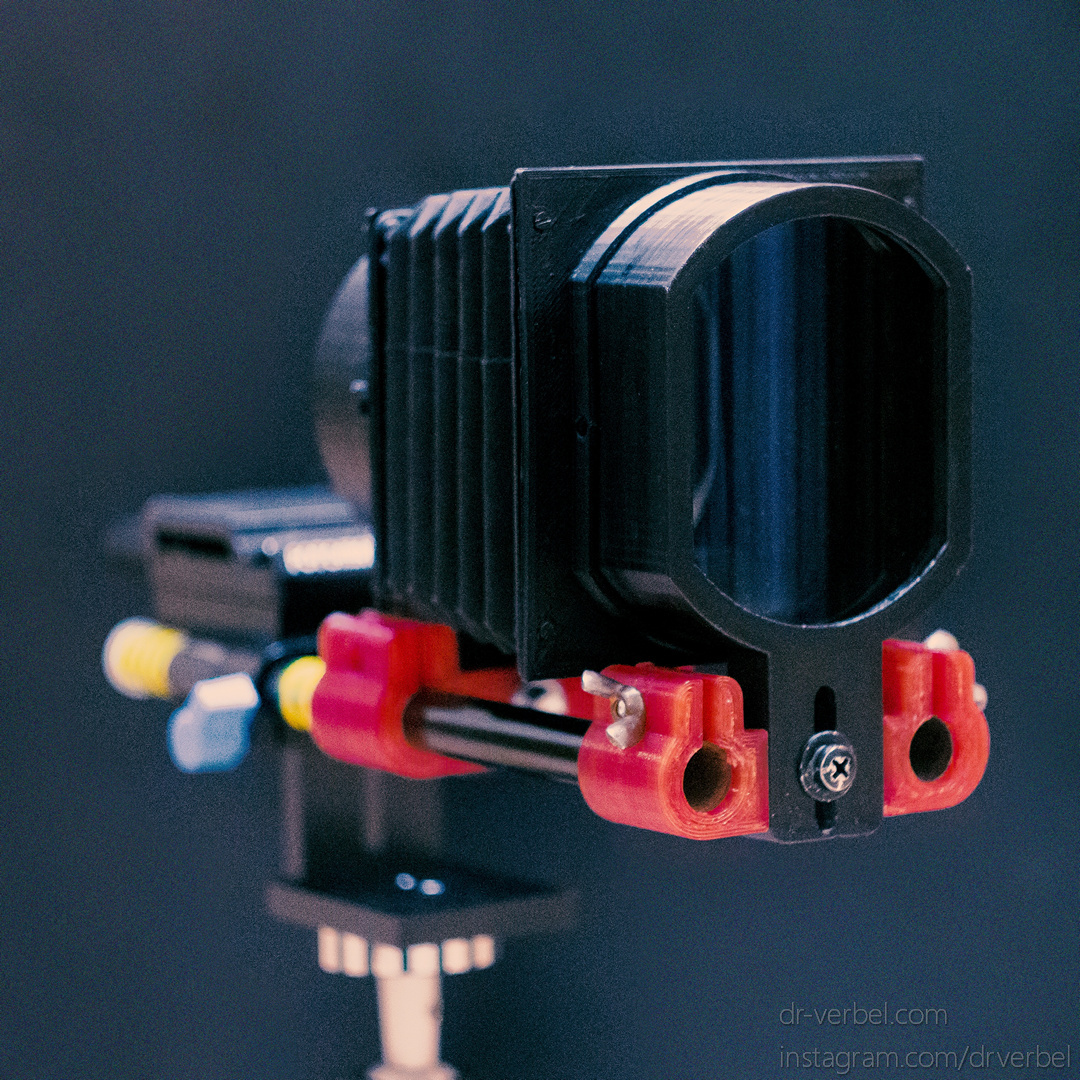

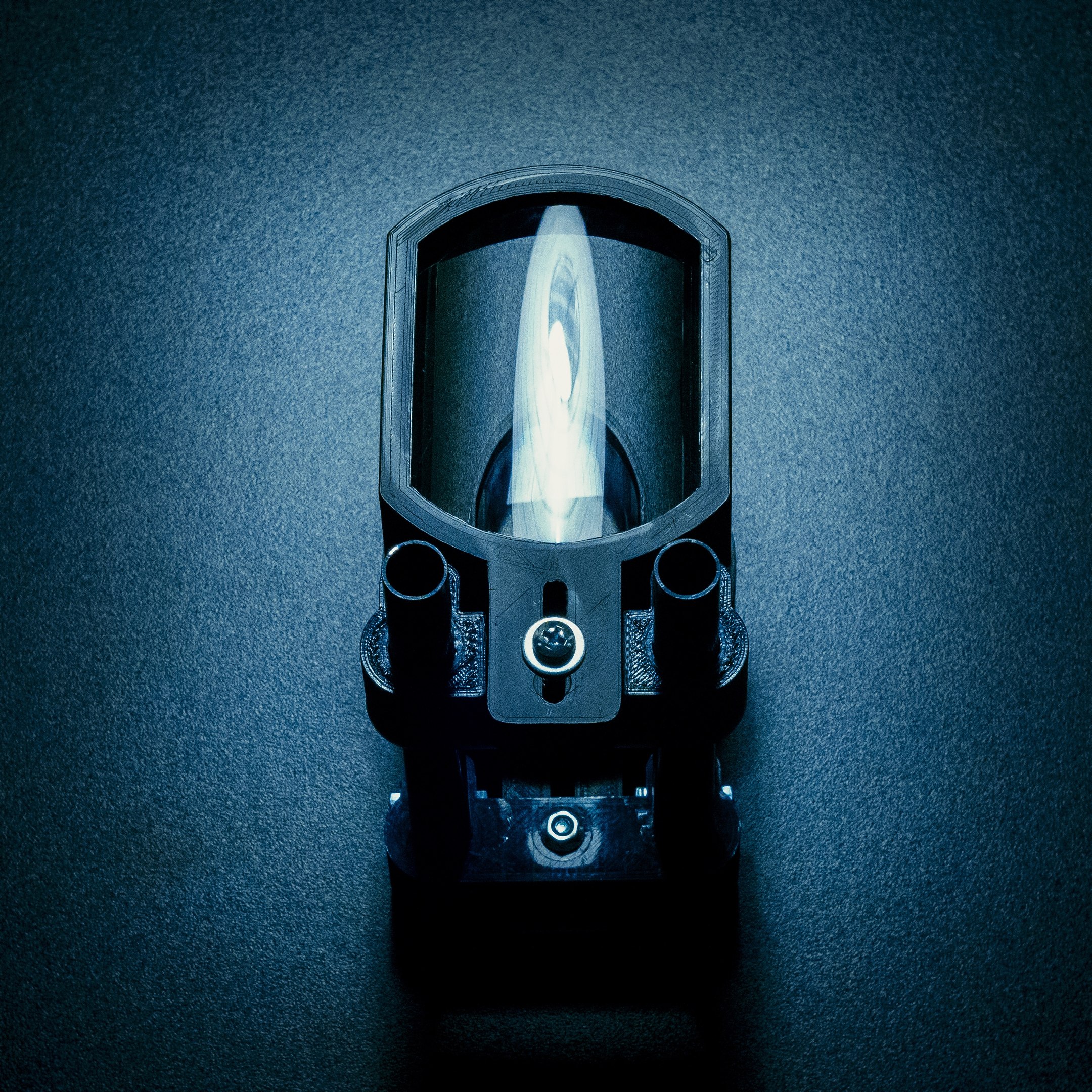

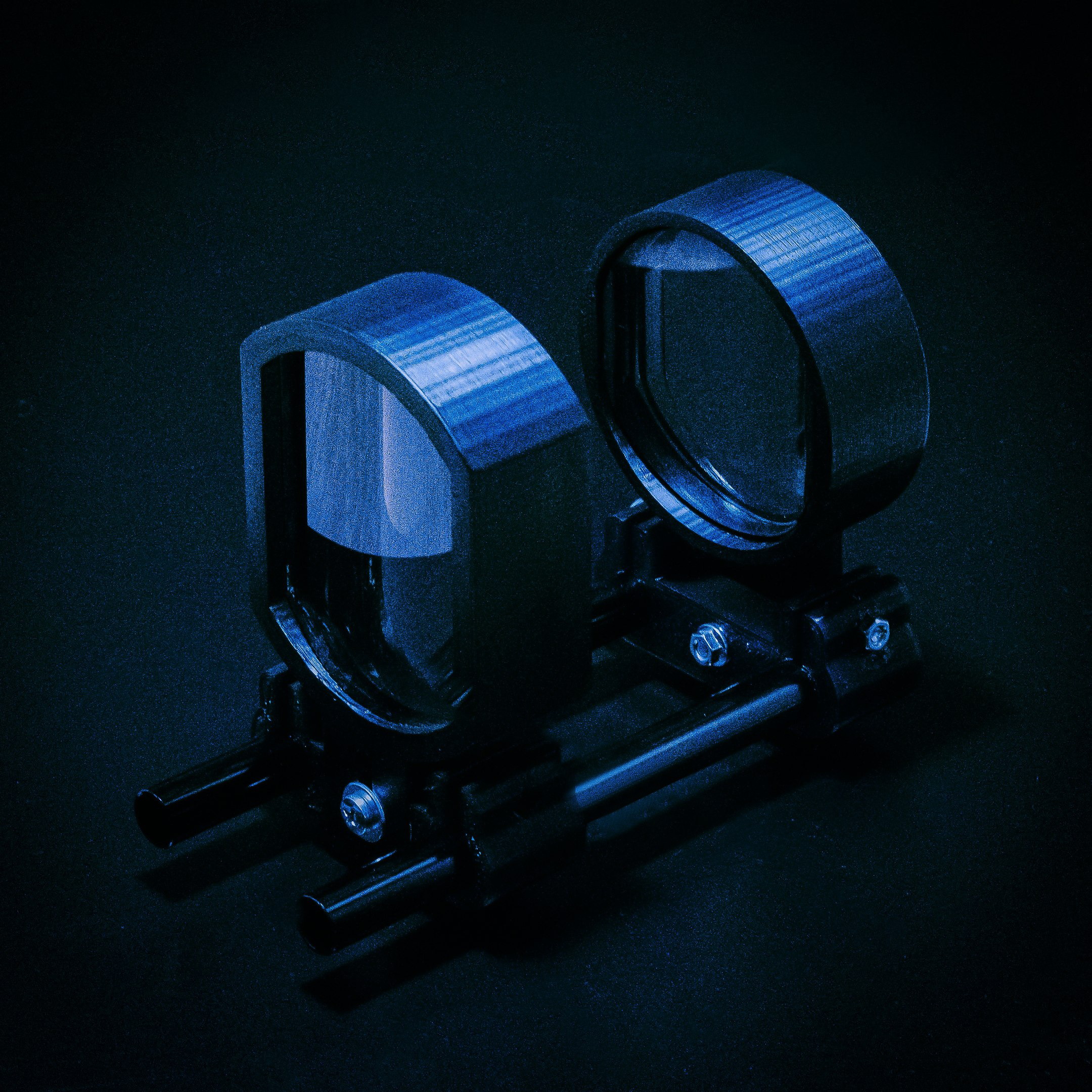

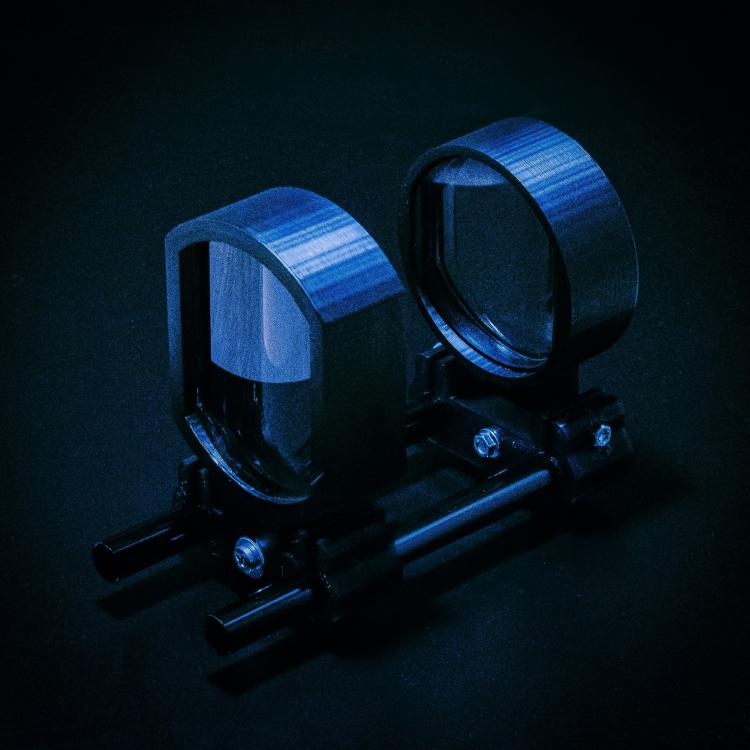

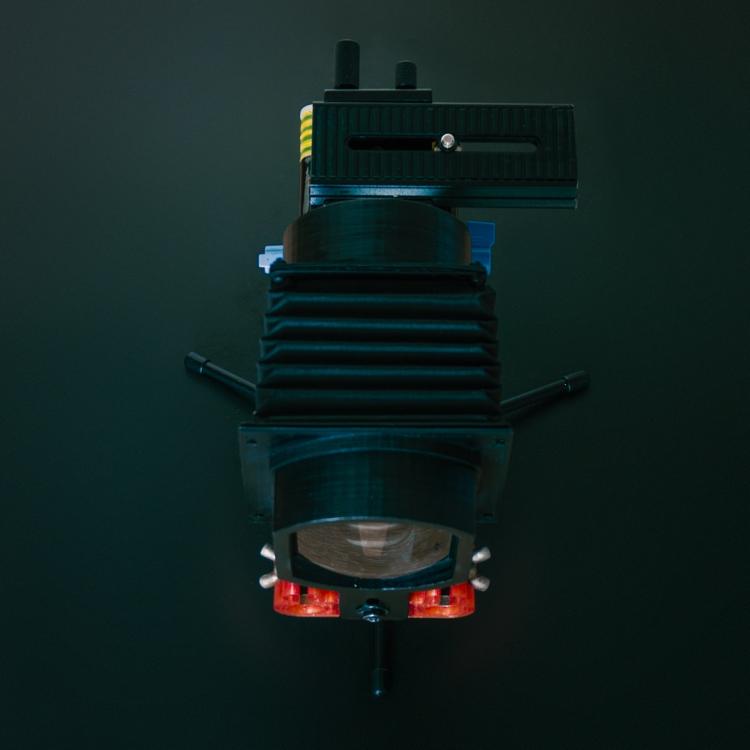

Dr. Verbel' Posted October 15, 2016 Author Share Posted October 15, 2016 Some photos of current construction. Beautiful body for single focus in progress. Juank and Timotheus 2 Quote Link to comment Share on other sites More sharing options...
Timotheus Posted October 15, 2016 Share Posted October 15, 2016 2 hours ago, Dr. Verbel' said: Some photos of current construction. Beautiful body for single focus in progress. Will you let us know how you built it to be single focus? :-) Quote Link to comment Share on other sites More sharing options...
Dr. Verbel' Posted October 15, 2016 Author Share Posted October 15, 2016 Credits to Frank Ladner https://www.youtube.com/channel/UChWCqVp4OYzofwZyvxprDWg . Thread on eos I posted on earlier messages. 21 minutes ago, Timotheus said: Will you let us know how you built it to be single focus? :-) Juank 1 Quote Link to comment Share on other sites More sharing options...

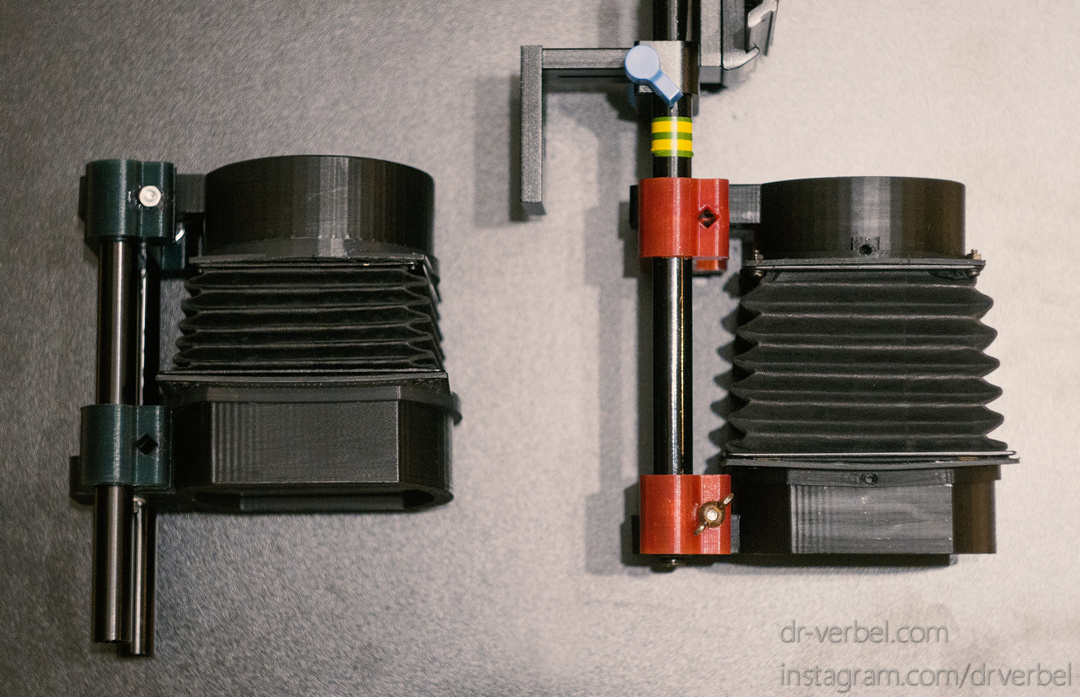

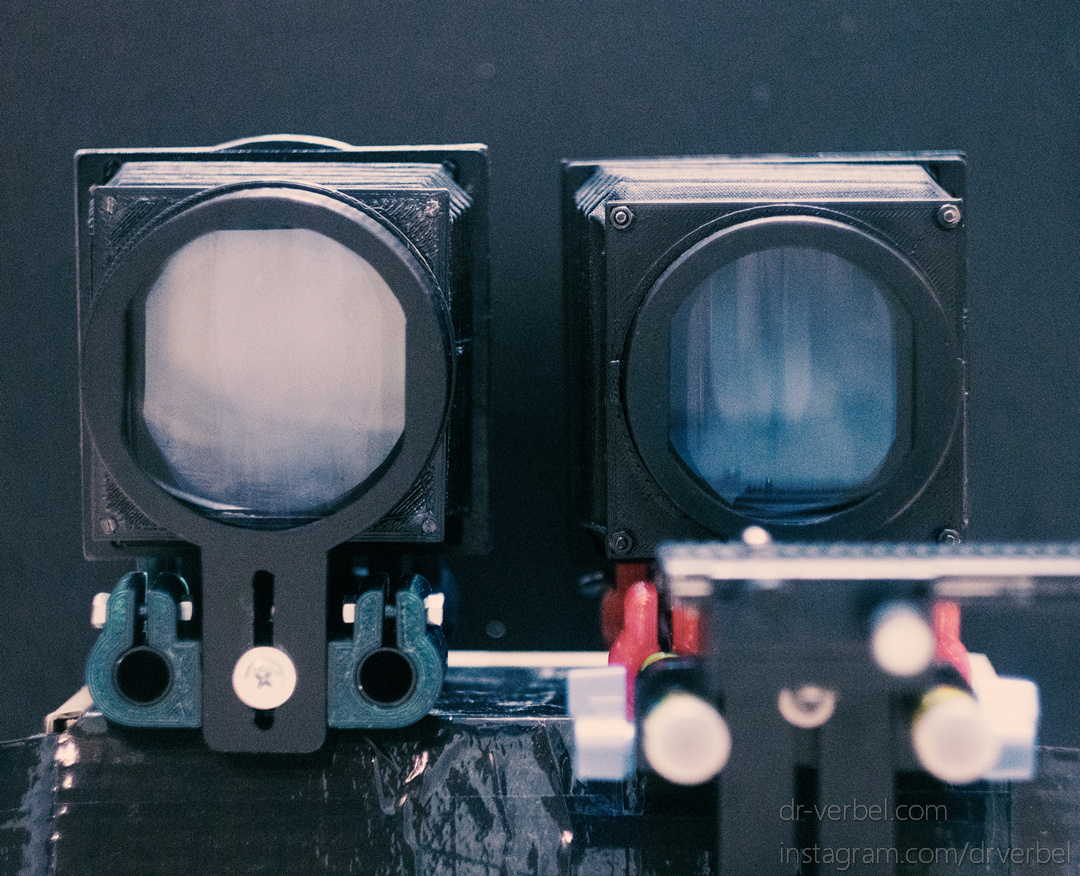

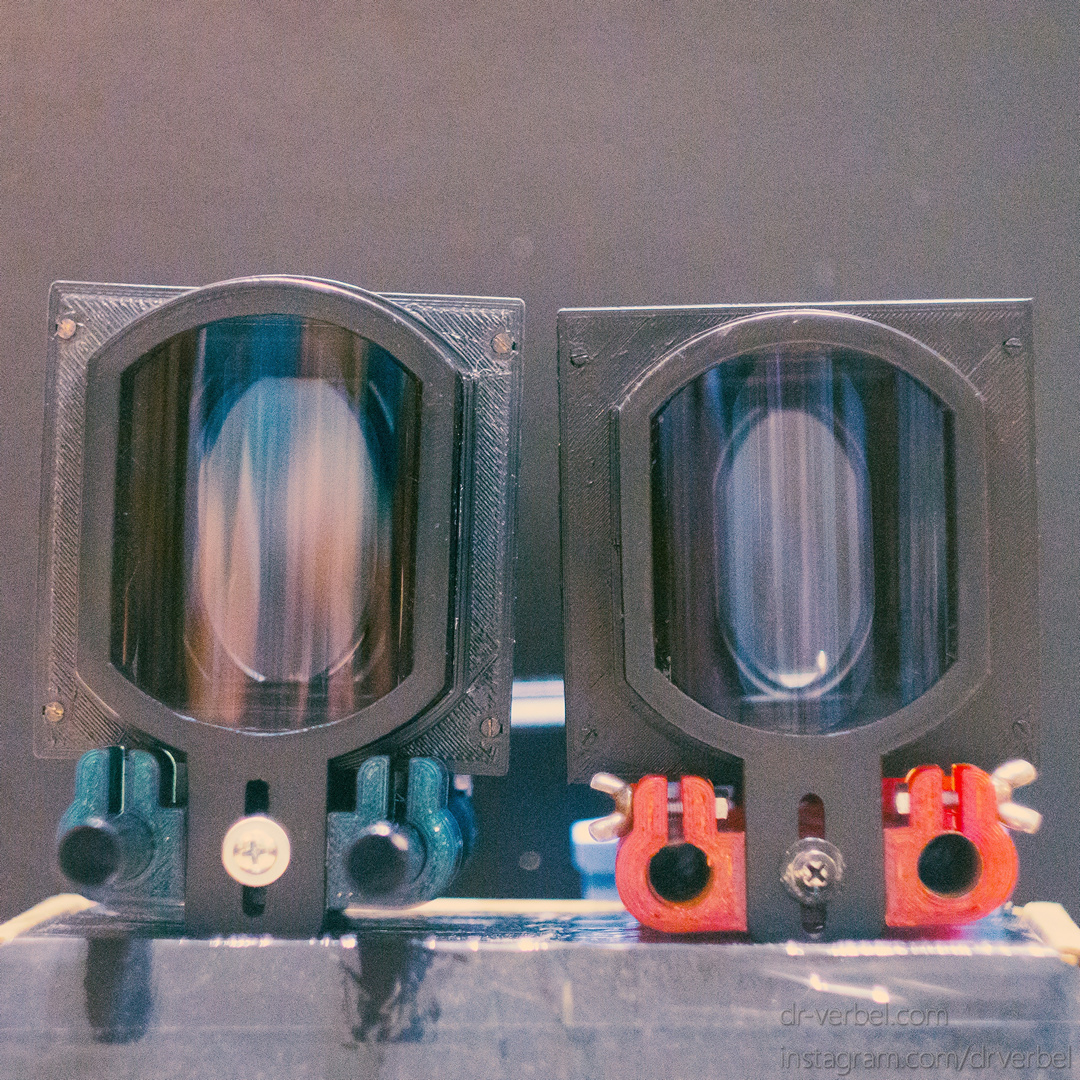

Dr. Verbel' Posted October 21, 2016 Author Share Posted October 21, 2016 Photos of modded — 35NAP 2-4; 35NAP 2-4, 35NAP 2-3M. Rectimascop 80/2x; 2-3M bigger than 2-4. 2-3M goes to Moscow soon for one filmmaker. Juank and Justin Bacle 2 Quote Link to comment Share on other sites More sharing options...
