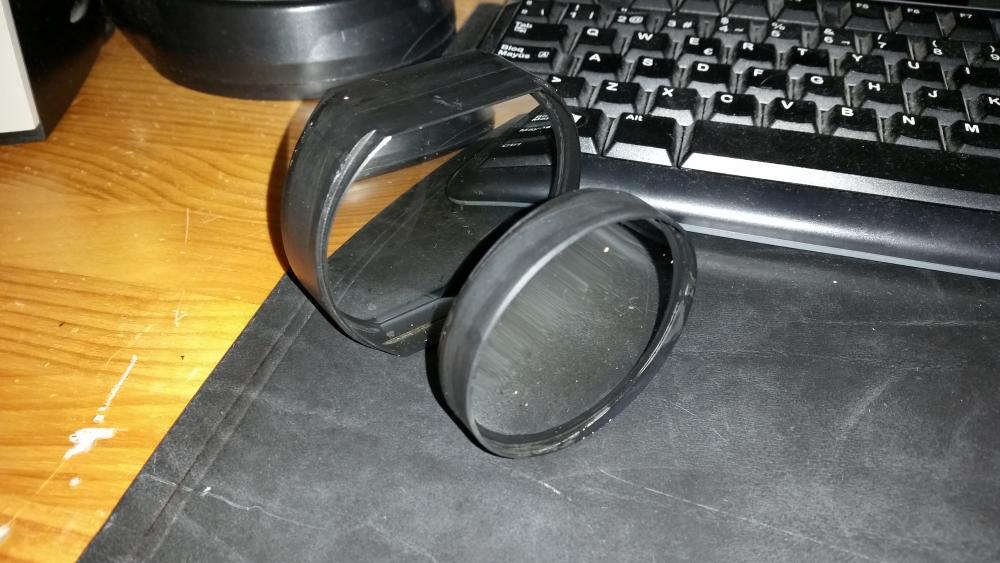

Paquito Coria Posted October 12, 2016 Share Posted October 12, 2016 Hi, I´m paquito. I start this post, because i have a questions about what to do with these lens unmounted ( attached photo). I have unmounted them, because the structure was broked and i must to do that. My question is , if i can mount them attached to a bellow ( https://www.amazon.com/Fotodiox-Macro-Bellows-Nikon-Camera/dp/B003EDYDVM/ref=sr_1_2?ie=UTF8&qid=1476296019&sr=8-2&keywords=bellow+camera) and mounted on a rig (specially adapt or hook the lens to the structure) or if you know the way to mount on a structure even lighter than the previous were mounted. Thanks a lot to you in advance (specially to Tito Ferradans. I didn´t find the person who post this, so i post then) Tito Ferradans 1 Quote Link to comment Share on other sites More sharing options...
SassySpaceMan Posted October 13, 2016 Share Posted October 13, 2016 Hi, this thread should give you some guidance on how to mount your elements to a bellows. Quote Link to comment Share on other sites More sharing options...
Dr. Verbel' Posted October 14, 2016 Share Posted October 14, 2016 Hi! Bellows on Amazon unsuitable for your lenses, too small. What model and sizes of lenses? That structure good for you? On 12.10.2016 at 9:22 PM, Paquito Coria said: Hi, I´m paquito. I start this post, because i have a questions about what to do with these lens unmounted ( attached photo). I have unmounted them, because the structure was broked and i must to do that. My question is , if i can mount them attached to a bellow ( https://www.amazon.com/Fotodiox-Macro-Bellows-Nikon-Camera/dp/B003EDYDVM/ref=sr_1_2?ie=UTF8&qid=1476296019&sr=8-2&keywords=bellow+camera) and mounted on a rig (specially adapt or hook the lens to the structure) or if you know the way to mount on a structure even lighter than the previous were mounted. Thanks a lot to you in advance (specially to Tito Ferradans. I didn´t find the person who post this, so i post then) Quote Link to comment Share on other sites More sharing options...
Paquito Coria Posted October 14, 2016 Author Share Posted October 14, 2016 2 minutes ago, Dr. Verbel' said: Hi! Bellows on Amazon unsuitable for your lenses, too small. What model and sizes of lenses? The bigger one is 80mm(long)x64mm(high)x28mm(wide) The smaller is the circle 61mm(diametre)x15mm(wide) Quote Link to comment Share on other sites More sharing options...
Dr. Verbel' Posted October 14, 2016 Share Posted October 14, 2016 No problem. Make drawings for your case, 3d-print frames and mounts for your configuration. You may also add bellows. Necessary before printing CHECKS all sizes to fit your lens and mount for your configuration. 3D complete filling for printing. For frames solid plastic (ABS), for mount more plastic plastic (HIPS) Just now, Paquito Coria said: The bigger one is 80mm(long)x64mm(high)x28mm(wide) The smaller is the circle 61mm(diametre)x15mm(wide) Tito Ferradans 1 Quote Link to comment Share on other sites More sharing options...
