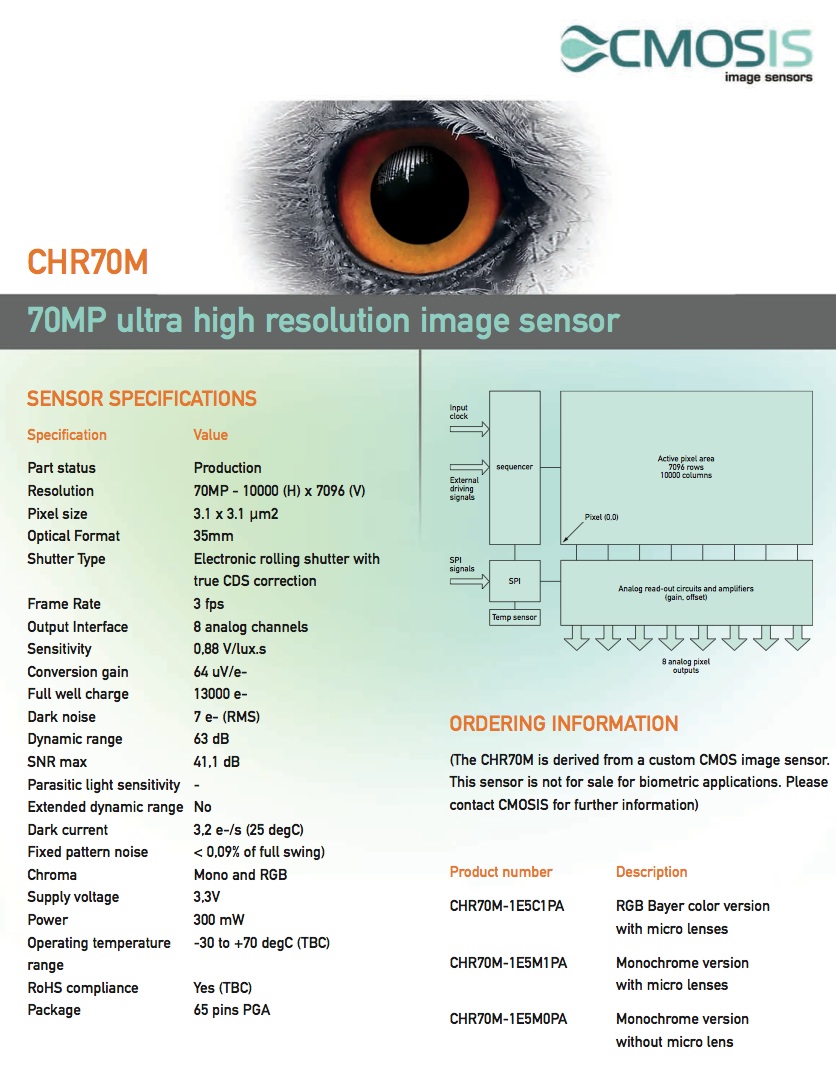

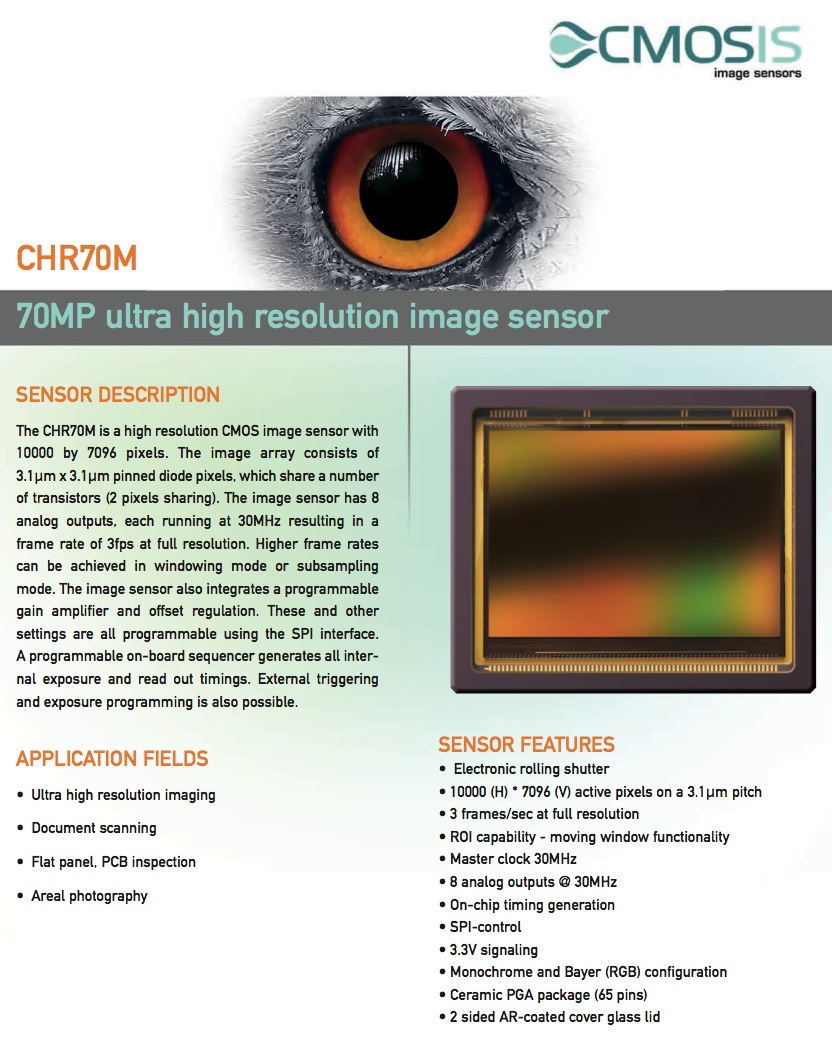

Administrators Andrew Reid Posted April 9, 2013 Administrators Share Posted April 9, 2013 Stumbled along this whilst researching the possible Blackmagic Production Camera 4K CMOS sensor from CMOSIS. They really do have something pretty special here... And maybe a sign of things to come in DSLRs. Nearly double the pixel count of the Nikon D800. It is 35mm full frame. --- The CHR70M is a high resolution CMOS image sensor with 10000 by 7096 pixels. The image array consists of 3.1μm x 3.1μm pinned diode pixels which share a number of transistors (2 pixels sharing). The image sensor has 8 analog outputs, each running at 30MHz. This results in a frame rate of 3fps at full resolution. Higher frame rates can be achieved in windowing mode or subsampling mode. The image sensor also integrates a programmable gain amplifier and offset regulation. These and other settings are all programmable using the SPI interface. All internal exposure and read out timings are generated by a programmable on-board sequencer. External triggering and exposure programming is also possible. The CHR70M is derived from a custom CMOS image sensor Link to comment Share on other sites More sharing options...
