ATEM Studio & ProPresenter Signal Flow, Feedback Loop?

[Ariel Scovoli]

Hey Guys! how are you? I really hope some of you could help me....I saw this post about using ATEM Studio + Propresenter together.... I really new to this and I am helping my local church to set up the screens and live broadcasting.

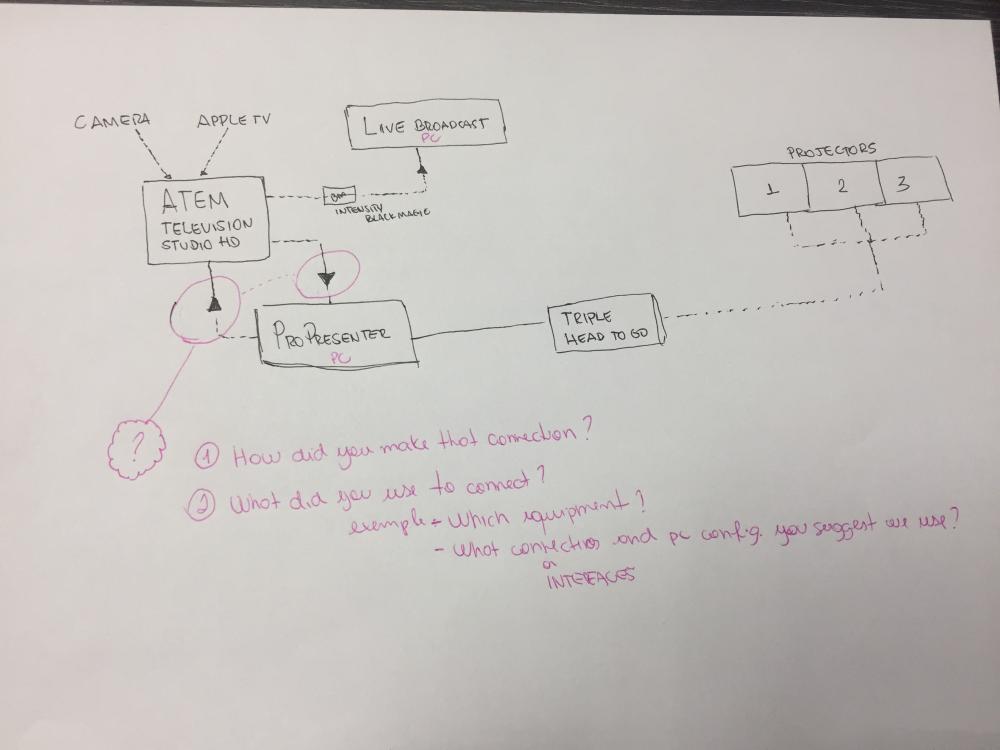

We are trying to make the set up as you can see on the picture above...

A) ATEM will control the cameras, apple tv signal and propresenter images and videos to broadcast it live
B) Propresenter will control the screens and sometimes show the apple tv presentations controlled by the speaker, also the lyrics and bible verses...


My questions are:

1) How to make that conection between ATEM AND PROPRESENTER
2) What to use for that set up? What equipment/interfaces?


Thank you in advance

[BTM_Pix]

I was going to point you to this thread on BlackMagic forum as there is a discussion relating to what you want to do it.

But I notice that someone with a very similar diagram to yourself has already asked this on there...

https://forum.blackmagicdesign.com/viewtopic.php?f=4&t=40229

[no_connection]

What is it you want to feed into Propresenter and why?

We use luma key with white text, gray outline and black background whenever we need to show text on live image. All combined within ATEM mixer. Delay is barely noticeable with 720p50
