Administrators Andrew Reid Posted July 29, 2017 Administrators Share Posted July 29, 2017 The original creator's instructions are in the Readme.txt file as part of the download (links below), all credit goes to the hack dev. You must read this before installation. However I thought I might summarise how to get started here in a sticky post to save searching for help (if you need it) in the long threads. PREPARE CAMERA 1. Ensure fully charged battery 2. In the main menu, ensure Auto Display off = 5 minutes and Power Save = 10 minutes 3. In the main menu, ensure Touch Operation = on 4. Ensure firmware is version 1.41 for the NX1 (you can view this in the main menu under the option Device Information). If older, update firmware according to Samsung's instructions online or via Wifi in the camera menus. 5. Format a memory card in-camera 6. Turn off bluetooth and wifi, set mode dial to M PREPARE THE NX-ON-WAKE PATCH 1. From the following link download nx-on-wake.zip https://github.com/ottokiksmaler/nx500_nx1_modding/blob/master/nx-on-wake/nx-on-wake.zip 2. Extract all files in nx-on-wake.zip to the ROOT directory of your SD card. 3. Insert the SD card into the camera, turn on the camera and wait 4. A touch screen menu appears to enter a "Magic Number". This is in the Readme.txt, to ensure you have read it. Please look at that document carefully for the 6 digits. I found "357669" but check to see if different. 5. Message "Thanks, preparing the ground" will appear and the display will go blank momentarily. Green light begins to flash... WAIT AT LEAST 5 MINUTES 6. Leaving the camera powered on, pull the battery out and wait 10 seconds, then put the battery back in. WAIT AT LEAST 4 MINUTES 7. Turn off the camera using the power switch. 8. Pull the battery, wait 5 seconds and put the battery back in. Turn on the camera. 9. Look at the green LED, you will see it blink 4 times (one long and three short blinks), to confirm everything went ok. 10. Turn off the camera and remove the SD card. INSTALL THE MAIN HACK 1. Download nx-patch.zip from https://github.com/ottokiksmaler/nx500_nx1_modding/tree/master/video-bitrate-mods/nx-patch 2. Delete the all the nx-wake related files and folders from the SD card 3. Extract the nx-patch zip and place everything in the root directory of your SD card 4. Insert card into camera, turn on the camera and wait for the 'Please wait, installing...' message and for it to do its thing 5. Hack should now be activated, turn off/on camera and you can enter the hack menus by rapidly double-pressing the LCD illumination button on the NX1 6. In the hack menus (double-press LCD illumination button), you can select bitrates, and change Pro1 from 80 to an even higher value like 160 7. Press the "Make persistent" option to save any modifications so they remain on the camera at next cold boot 8. Please make sure you have the fastest possible SD card for Pro bitrate 4K recording (80Mbit to 160Mbit). Happy shooting! Marco Tecno, arourke, Juxx989 and 2 others 5 Quote Link to comment Share on other sites More sharing options...
Caleb Genheimer Posted July 31, 2017 Share Posted July 31, 2017 Is this pretty reliable/reversible at this juncture and worth trying out? The NX1 is my A-cam, and if it's reliable, I'd love a bitrate increase for some projects, but not for others. Quote Link to comment Share on other sites More sharing options...
LtJTMarsh Posted August 4, 2017 Share Posted August 4, 2017 do we need to have the latest nx1 firmware to do this? i haven't update the firmware to latest. safe to use? Quote Link to comment Share on other sites More sharing options...
Caleb Genheimer Posted August 7, 2017 Share Posted August 7, 2017 Not safe. You need the latest firmware. It is also stated but not emphasized/included in the instructions, but you have to first install the NX1-no-wake mod, which has a whole seperate set of files and instructions. @Andrew Reid You might want to add that info to the first post. Quote Link to comment Share on other sites More sharing options...
BopBill Posted August 7, 2017 Share Posted August 7, 2017 For installation look at this Vasile's answer: https://github.com/ottokiksmaler/nx500_nx1_modding/issues/82 Juxx989 1 Quote Link to comment Share on other sites More sharing options...
keessie65 Posted October 27, 2017 Share Posted October 27, 2017 Something not working for me ... help needed. I do not know why, but I imagine that I lost somewhere the SW 1.41 version in my camera and that I am running the hack at SW 1.0 version. That was happened during my holiday in Austria. How that happened... don't know. Now I will install the SW 1.41 with I-launch, but I cannot connect the NX1 with windows 10. I only see "connection device: not connected" . In windows I can see all images on the camera, I am using the right cable. Can someone give me some advice? In meanwhile I am looking also at Google to find out. Thank you! Quote Link to comment Share on other sites More sharing options...
BopBill Posted October 27, 2017 Share Posted October 27, 2017 I don't think you need i-launch. Download zip via https://matteverglade.com/cameras/nx-firmware/, load camera's battery , format in camera/use older sd card (not UHS-II), copy files to the root of card, start camera and enter camera Device Info menu to update. Let is update, maybe shuts and starts during update, don't remember. Quote Link to comment Share on other sites More sharing options...
BopBill Posted October 27, 2017 Share Posted October 27, 2017 The zip-file must first be unzipped, before copying to the card, thats clear. And pull out the battery for a minute before installing the firmware, just in case. Quote Link to comment Share on other sites More sharing options...
lucabutera Posted October 27, 2017 Share Posted October 27, 2017 9 hours ago, keessie65 said: Something not working for me ... help needed. I do not know why, but I imagine that I lost somewhere the SW 1.41 version in my camera and that I am running the hack at SW 1.0 version. That was happened during my holiday in Austria. How that happened... don't know. Now I will install the SW 1.41 with I-launch, but I cannot connect the NX1 with windows 10. I only see "connection device: not connected" . In windows I can see all images on the camera, I am using the right cable. Can someone give me some advice? In meanwhile I am looking also at Google to find out. Thank you! Turn the camera to USB mode. Quote Link to comment Share on other sites More sharing options...
keessie65 Posted October 28, 2017 Share Posted October 28, 2017 I put the .bin file directly on a clean SD card. The easiest way to update to 1.41. Quote Link to comment Share on other sites More sharing options...
Juxx989 Posted December 6, 2017 Share Posted December 6, 2017 Hey all I have been using the older firmware and KinoSeed hack for a year... I like it but it was starting to get annoying waiting for the mod activated prompt to pop us sometimes taking 5 secs or more... So I decided to wipe and update to 1.41 I tested it stock for a bit (80mbps) and popped them into resolve.. the + is they play realtime in my timeline bad is I can definitely feel a difference when grading... So I got the clean install and tried to install vasile hack I read the README to a tee got the super secret code... read the quite serious warnings and striped my NX-1 nude... (no lens, no wires, no battery grip etc) Copied the files to my SD card... did a cold boot... and .... nothing happens... I get a lens detached warning and thats it... I checked the message a few above about installing the "ON WAKE" mod first.. its on the card and nothing happens... Any assistance peeps? I guess I could try KinoSeed again if its out there he seems he deleted his facebook page on the hax Quote Link to comment Share on other sites More sharing options...
BopBill Posted December 6, 2017 Share Posted December 6, 2017 Did you check that there is anything inside the ZIP-file. I just tested downloading and if I click the nx-on-wake.zip with right mouse button and try to download that way, it wont work. The downloaded ZIP-file is empty. You must click with left button and new window opens and there you can download the ZIP-file. Then unzip it to your empty formatted cards root. From instructions: "3. Unzip the file where you found this README in the root of your SD card. Double-check that your SD card now contains two folders: install and nx-on-wake, placed in the root of the card" Quote Link to comment Share on other sites More sharing options...

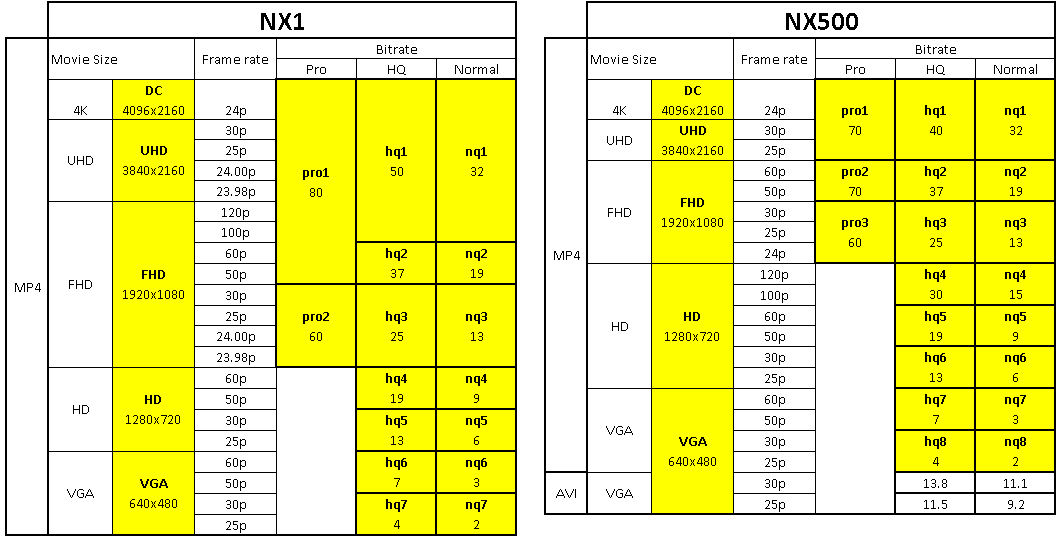

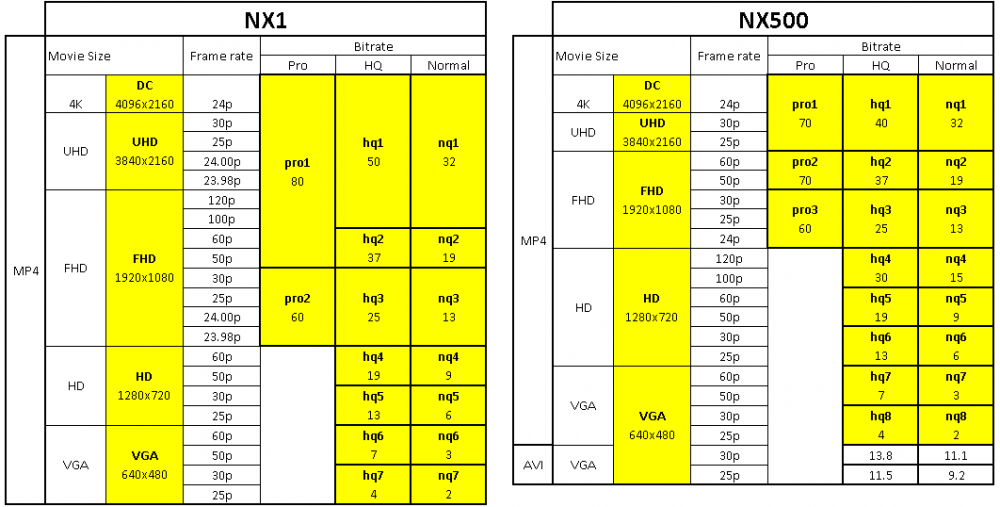

derderimmermuedeist Posted December 6, 2017 Share Posted December 6, 2017 HOW TO - INSTALLATION 0. The file containing this README.txt includes everything you need. 1. Make sure the nx-on-wake mod is installed. This mod depends on nx-on-wake. 2. The zip file includes a nx-patch.png file. Open and print it or familiarize yourself with it - it shows the meaning of the various bitrate and resolution slots. You will need to know them to use the mod. 3. Unzip the file where you found this README in the root of your SD card. 4. Insert the SD card into your camera and power it up. NB. I mean power up the camera, not the SD card :-) 5. Pay attention to the messages showing on the screen. 6. You will be informed when the mod is available (installation is finished). Quote Link to comment Share on other sites More sharing options...
Juxx989 Posted December 7, 2017 Share Posted December 7, 2017 My clean SD card has on it INSTALL (Folder) NX-ON Wake (folder) COPYING (File) I did all this to the letter - NX camera is on firmware v1.41 (NX1) or v1.12 (NX500). - battery is FULLY charged and that the camera is NOT connected to anything: Bluetooth, wifi, any cables (EVEN CHARGING), external flash, battery grip. EVERYTHING that can be disconnected should be disconnected except the battery and the SD card. - POWER SAVE settings are: Auto Display Off = 5 min and Power Save = 10 min. - camera language is set to English <= this is VERY important - mode dial is on M (manual) and it says its supposed to prompt me for a pass word but nothing ever happens... I let it sit for 20 min a few times... and nothing. Pretty frustrated and confused... can you link to a video of the process? all I can find is KinoSeed instructions videos and I dont have and trying to avoid KinoSeed for reasons stated above... Thanks fo the help in advance Quote Link to comment Share on other sites More sharing options...
BopBill Posted December 7, 2017 Share Posted December 7, 2017 Is the info.tg file also in the card? Juxx989 1 Quote Link to comment Share on other sites More sharing options...
Juxx989 Posted December 7, 2017 Share Posted December 7, 2017 @BopBill No the Zip has nothing called info.tg Do you have a copy in zip form that you can upload to Google drive and let me download from you Quote Link to comment Share on other sites More sharing options...
BopBill Posted December 7, 2017 Share Posted December 7, 2017 It is this: https://github.com/ottokiksmaler/nx500_nx1_modding/blob/master/nx-on-wake/nx-on-wake.zip Click this link with left mouse button, and new page opens and there is download button. Juxx989 1 Quote Link to comment Share on other sites More sharing options...
Juxx989 Posted December 7, 2017 Share Posted December 7, 2017 @BopBill Ok we did it I was missing the info.tg went through the mysterious install process I put in the code and did all the things It appears it was successful as I see that 4 light blinks on my green light by the menu button... Thanks BUT....... now I cant seem to get the GUI to pop up so I can change bitrates Andrew says above that you just double click the little button with the lightbulb on it under the top LCD screen... Ive been pushing it like crazy and nothing is happening Ill keep trying But thanks for getting me this far! Quote Link to comment Share on other sites More sharing options...
BopBill Posted December 7, 2017 Share Posted December 7, 2017 This is the second part of installation prosess: https://github.com/ottokiksmaler/nx500_nx1_modding/blob/master/video-bitrate-mods/nx-patch/nx-patch.zip Instructions are in the ZIP-file. The hack has the killall button and it is usefull, because using it the other parts of the hack (except bitrates) are not using any prosessing resurces. And after using killall you can't open menu before the battery has been out of the camera ( shut camera and after that battery out for few seconds.) However the Killall function doesn't remain on many days. You have to do it again after day or two. But you start to make it habbit to check, with double clicking the little lcd light button, that if the killall function is still on or not. Not a big deal. Juxx989 1 Quote Link to comment Share on other sites More sharing options...
Juxx989 Posted December 7, 2017 Share Posted December 7, 2017 @BopBill Hey sir its running great now... thanks for the training wheels treatment its alot zipper than the other hack Now I need to go shoot something (FOR FUTURE PEOPLE) -Download and Install this First https://github.com/ottokiksmaler/nx500_nx1_modding/blob/master/nx-on-wake/nx-on-wake.zip Click this link with left mouse button, and new page opens and there is download button. -Then install this This is the second part of installation prosess: https://github.com/ottokiksmaler/nx500_nx1_modding/blob/master/video-bitrate-mods/nx-patch/nx-patch.zip Instructions are in the ZIP-file BopBill and Francesco Tasselli 2 Quote Link to comment Share on other sites More sharing options...
