Bozzie Posted June 24, 2018 Share Posted June 24, 2018 Hi All, Anyone have any experience with stripping down a Kowa 8z Anamorphic adapter? I've stripped down a couple of other scopes before but this one's giving me a bit of bother. The pics below are as far as I've got. Repair Issue: I want to access the screws (highlighted in red) but the focus barrel (helicoid?) is jammed - Won't rotate in either direction. Anyone experienced this before? If so, how did you release/fix it? I'm sure I'm missing something. @Tito Ferradans Maybe you might have some advice? Thanks in advance! -- B Quote Link to comment Share on other sites More sharing options...
Grimor Posted June 24, 2018 Share Posted June 24, 2018 5 hours ago, Bozzie said: @Tito Ferradans Take a look, Tito is the man. I think you can remove all the 3 screw/tabs that limit infinity and close focus points. Bozzie 1 Quote Link to comment Share on other sites More sharing options...

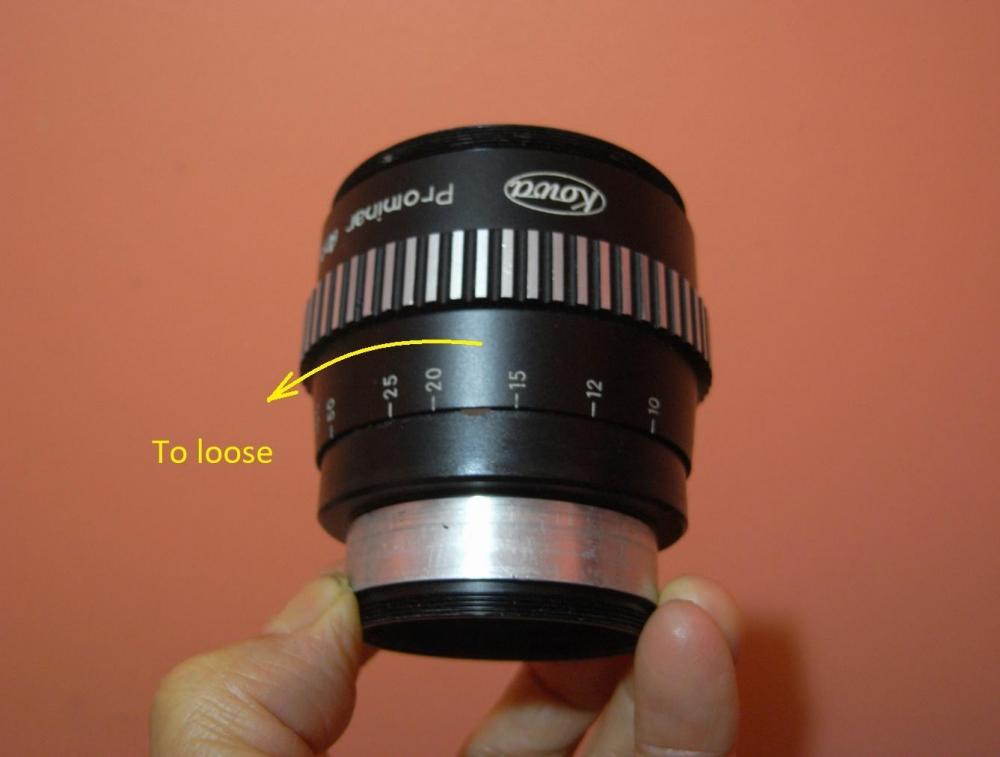

ken Posted June 24, 2018 Share Posted June 24, 2018 8 hours ago, Bozzie said: Hi All, Anyone have any experience with stripping down a Kowa 8z Anamorphic adapter? I've stripped down a couple of other scopes before but this one's giving me a bit of bother. The pics below are as far as I've got. Repair Issue: I want to access the screws (highlighted in red) but the focus barrel (helicoid?) is jammed - Won't rotate in either direction. Anyone experienced this before? If so, how did you release/fix it? I'm sure I'm missing something. @Tito Ferradans Maybe you might have some advice? Thanks in advance! -- B Hey, your lens has been modified. I believe it has reached to one end. Please refer my picture. BTW, if you need, I can sell mine to you, mechanic parts only, no glasses. ? Quote Link to comment Share on other sites More sharing options...
Bozzie Posted June 25, 2018 Author Share Posted June 25, 2018 15 hours ago, Grimor said: I think you can remove all the 3 screw/tabs that limit infinity and close focus points. Thank you. Seen that vid before. The issue I have is that I'm unable to access the screws due to the focus barrel being stuck. Need to figure out a way of loosing it without breaking the damn thing! ? 13 hours ago, ken said: Hey, your lens has been modified Hey @ken. Thanks for the pic! Modified? Please explain. 13 hours ago, ken said: BTW, if you need, I can sell mine to you, mechanic parts only, no glasses. How much are you wanting for that bad boy? ? Quote Link to comment Share on other sites More sharing options...
ken Posted June 25, 2018 Share Posted June 25, 2018 8 hours ago, Bozzie said: Thank you. Seen that vid before. The issue I have is that I'm unable to access the screws due to the focus barrel being stuck. Need to figure out a way of loosing it without breaking the damn thing! ? Hey @ken. Thanks for the pic! Modified? Please explain. How much are you wanting for that bad boy? ? Your lens barrel has been cut out the distance marking part, obviously. Mine's price? I think it worth around $200 nowadays. Its front lens was too bad when I bought, not usable. So I took out rear lens for use with other front lens. Bozzie 1 Quote Link to comment Share on other sites More sharing options...
Grimor Posted June 26, 2018 Share Posted June 26, 2018 21 hours ago, Bozzie said: Thank you. Seen that vid before. The issue I have is that I'm unable to access the screws due to the focus barrel being stuck. Need to figure out a way of loosing it without breaking the damn thing! Ah, now i see the problem! Did you remove the front look ring first? 3 little screws beside is writted "kowa prominar made in japan" It'll allow you to rotate the focus barrel in the desired direction. The focus distance ring is only cosmetic part (with some usefull info), but you dont need it really. Look for a little little tiny screw on it that lossen to reset the focus mark. If you can remove it, you can look for further problem and probably you can turn your focus barrel with some liquid grease/lube. Bozzie 1 Quote Link to comment Share on other sites More sharing options...
Grimor Posted June 26, 2018 Share Posted June 26, 2018 @Bozzie Look at 2'15" mark. Quote Link to comment Share on other sites More sharing options...
Bozzie Posted June 26, 2018 Author Share Posted June 26, 2018 17 hours ago, ken said: Your lens barrel has been cut out the distance marking part, obviously It's not been cut. I removed the distance marker ring to access the screws ? 17 hours ago, ken said: I think it worth around $200 nowadays I'll keep that in mind! 5 hours ago, Grimor said: Did you remove the front look ring first? 3 little screws beside is writted "kowa prominar made in japan" It'll allow you to rotate the focus barrel in the desired direction. All removed. The focus barrel was ceased. I say "was" as it's now been resolved! Just about to post an update ? Grimor 1 Quote Link to comment Share on other sites More sharing options...
Bozzie Posted June 26, 2018 Author Share Posted June 26, 2018 *** RESOLVED! *** A few guys over on facebook suggested using a hair dryer. And it seemingly did the trick! That, WD40 and a shit load of hard taps to the focus barrel ? Here's the process I used: Apply WD40 into the grooves of the focus barrel. Wipe off the excess liquid and leave for 24hrs. Use hair dryer on low setting, high heat over focus barrel and inside grooves. Tap hard around focus barrel with palm. Try to twist barrel and tap some more. repeat step 2 (if needed). repeat step 3 (if needed). Hopefully this might be of help to others too. Next Step: Clean, re-grease, re-build and at some point -- TEST. Best, -- B leslie, Timotheus and webrunner5 1 1 1 Quote Link to comment Share on other sites More sharing options...
CfFilmmaker Posted June 29, 2019 Share Posted June 29, 2019 Had a similar issue with my Elmoscope II, turns out the focus ring was bent in making it a hell of a time to unscrew. Cut my fingers on the threads a few times but was able to use a cut up tennis ball to give me the grip I needed to wrench it off. Bozzie and webrunner5 2 Quote Link to comment Share on other sites More sharing options...
Bozzie Posted July 6, 2019 Author Share Posted July 6, 2019 On 6/29/2019 at 7:18 AM, CfFilmmaker said: Had a similar issue with my Elmoscope II, turns out the focus ring was bent in making it a hell of a time to unscrew. Cut my fingers on the threads a few times but was able to use a cut up tennis ball to give me the grip I needed to wrench it off. Great stuff! Quote Link to comment Share on other sites More sharing options...
