nucleus nano triggering issue


thephoenix
 Share

Recommended Posts

guys i need your help.

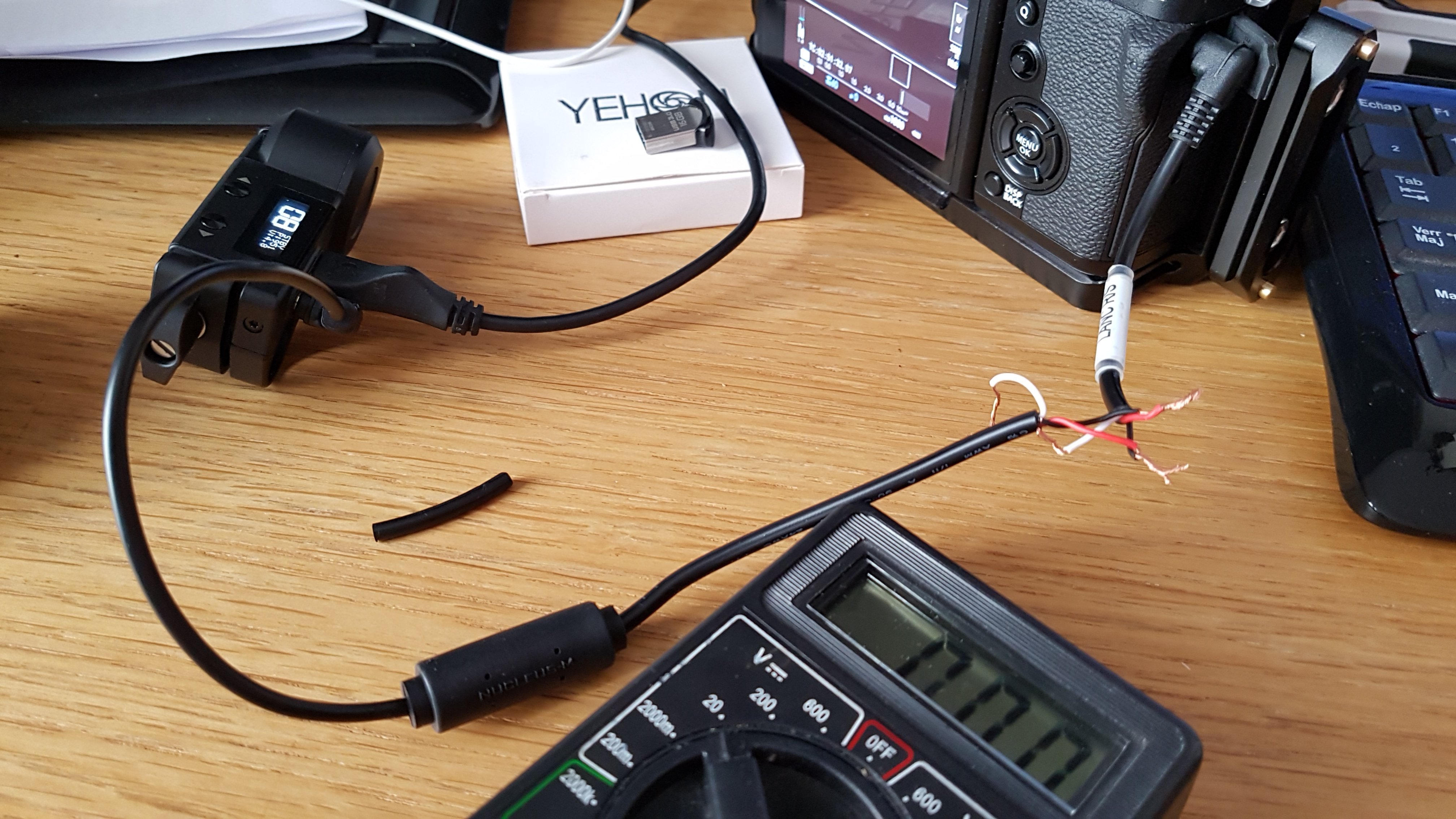

i don't get it. so as the cable i had with the nucleus nano didn't work i went for a cut to try to find what is the right wiring.

when i have the red and black inverted it works, i mean it triggers the cam, but only when i touch the cables. when the cables are tied and i push the rec button on the nucleus wheel nothing happens ?

don't get it.

any ideas ? guess it has something to do with the power maybe. i even wonder if it is not malfunctionning because when i test it with the voltmeter there is no voltage difference when i push the rec button and i guess something should happen or it should be at 0 when not recording


Link to comment
Share on other sites

EOSHD Pro Color 5 for Sony cameras EOSHD Z LOG for Nikon CamerasEOSHD C-LOG and Film Profiles for All Canon DSLRs
8 hours ago, Andrew Reid said:

Is it officially listed as compatible with the Fuji you have it plugged into?

If so, buy the cable that works?

come on, if it was compatible i would just have bought the cable.

the cable is from titlta, the only that could have worked according to a tilta representative. well, it didn't.

so i just have to figure out how to connect the wires to have it work but i might have a malfunction that is why i did this post

Link to comment
Share on other sites

I'd definitely help if it weren't for the fact that I'm a total layperson in electronics.

The only thing I can say is:

My engineer friend managed to produce me a functioning cable release for X-T3 using this cable:


(since I had one of these just laying around)

And this scheme:




How on earth did he do it - I don't know.

But thanks to him I've got a nice looking remote that I attached to my top handle so that I no longer have to touch the camera at all, while recording.
