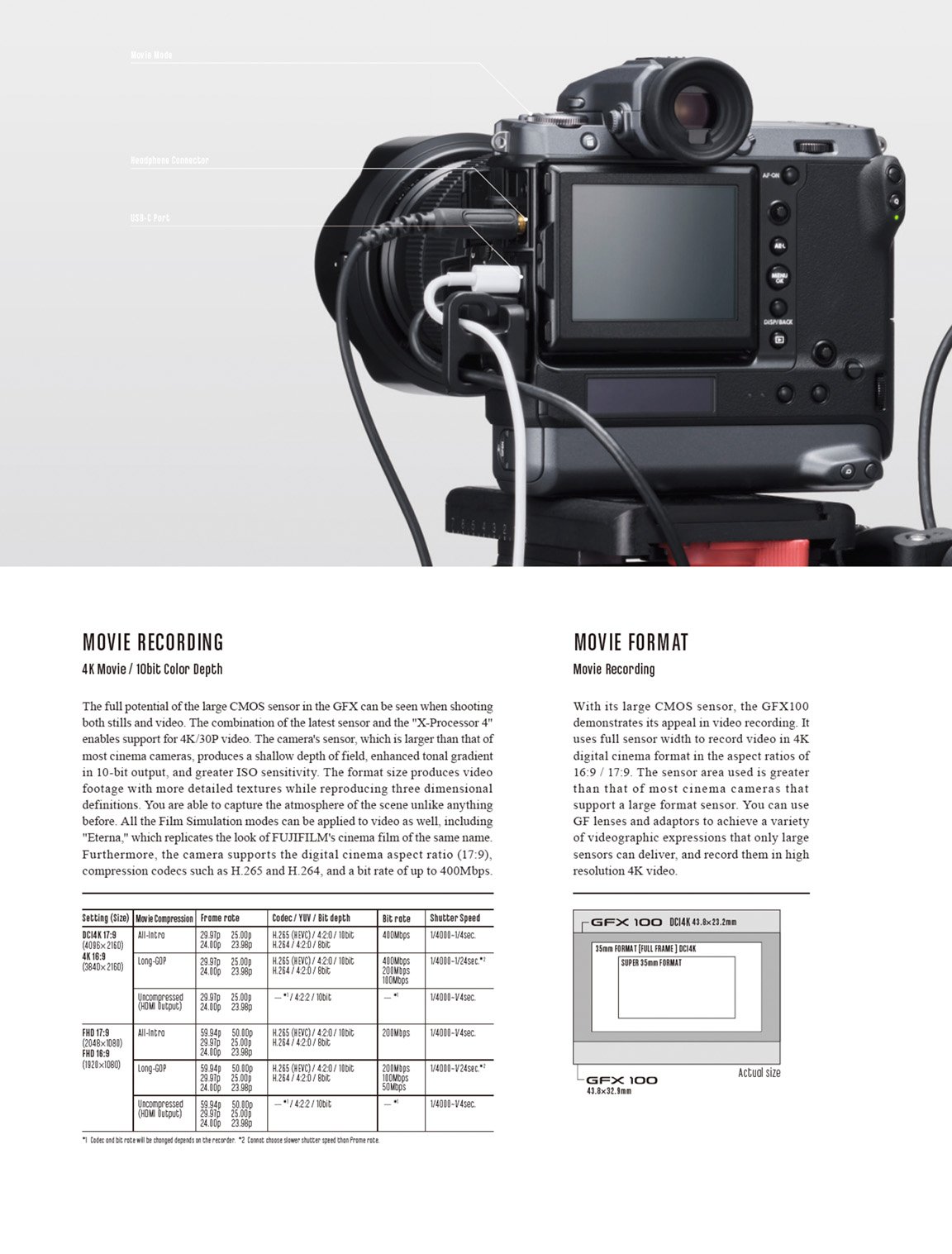

docmoore Posted February 21, 2020 Share Posted February 21, 2020 Page 10 from the GFX100 brochure .... Juank and Geoff CB 2 Quote Link to comment Share on other sites More sharing options...
docmoore Posted February 21, 2020 Share Posted February 21, 2020 I picked up a GFX-100 last week ... returned it this week. The stills were unbelievably good ... better that I can describe. AF is a mixed bag in video ... AF-S unusable in that if you push AF on to move the point of focus in video the lens opens fully to focus then closes to the set aperture ... even in Manual mode. AF-C has a distinct shudder in the background at times when the camera hunts ... other times it looks good. My biggest concern for the camera ... I was shooting to an external recorder as ProRes HQ in 10Bit 4:2:2 in FLog .... the color balance had a magenta tint in spite of custom white balance and white bal correction with a Video Passport Checker in Davinci Resolve. The Fuji LUTS made it worse ... skin tones really pink ... not tanned .... I tried a bunch of other LUTS ... moved to ACES ... and rendered the same 20 minute video 5 times ... the last without a LUT and a bunch of RGB individual curve corrections. Skin tones correct but the background bordering on cyan ... pick one or the other as I was not willing to mask each of 4 persons in the video. Ten to twelve hours for something that normally takes me 2 hours. If I were not shooting interviews and just outside ... might have not been an issue ... as the landscapes I tested looked good. No crop in 4K DCI Full Sensor read ... UHD probably trims the sides. Very robust build ... so close. IronFilm and Juank 1 1 Quote Link to comment Share on other sites More sharing options...
Administrators Andrew Reid Posted February 21, 2020 Author Administrators Share Posted February 21, 2020 Yes that's where I saw it. Maybe it is just a comparison of sensor size and not trying to imply the GFX 100 records DCI 4K in full frame and super 35mm crop modes. Maybe as @androidlad says the FF mode is only for 60MP stills. Firmware update request going into Fuji if true. Quote Link to comment Share on other sites More sharing options...
Administrators Andrew Reid Posted February 21, 2020 Author Administrators Share Posted February 21, 2020 1 minute ago, docmoore said: My biggest concern for the camera ... I was shooting to an external recorder as ProRes HQ in 10Bit 4:2:2 in FLog .... the color balance had a magenta tint in spite of custom white balance and white bal correction with a Video Passport Checker in Davinci Resolve. The Fuji LUTS made it worse ... skin tones really pink ... not tanned .... I tried a bunch of other LUTS ... moved to ACES ... and rendered the same 20 minute video 5 times ... the last without a LUT and a bunch of RGB individual curve corrections. Skin tones correct but the background bordering on cyan ... pick one or the other as I was not willing to mask each of 4 persons in the video. Ten to twelve hours for something that normally takes me 2 hours. Did you find the same with the internal 10bit F-LOG or not tried? I dislike external recorders so I will only be using the internal 10bit 4K. Quote Link to comment Share on other sites More sharing options...
docmoore Posted February 21, 2020 Share Posted February 21, 2020 Same for both ... but I only shot in FLog ... might be great with one of the film emulations. I just read the manual pp151 forward and there is no crop 35 mentioned so I assume the brochure was extant prior to final specs for the camera. Quote Link to comment Share on other sites More sharing options...
Administrators Andrew Reid Posted February 21, 2020 Author Administrators Share Posted February 21, 2020 I don't think the final specs changed or brochure is wrong, it is merely demonstrating how massive the sensor is compared to normal DCI full frame 4K. But definitely something for Fuji to consider in a firmware update if sensor allows it. A7R IV 4K bins nicely from 60MP. I will see whats up with F-LOG. Nothing that a good LUT or in-camera settings change can't fix Eterna is an option. Did it have Hybrid LOG Gamma? Quote Link to comment Share on other sites More sharing options...
docmoore Posted February 21, 2020 Share Posted February 21, 2020 Its a bit confusing ... now that the camera is on its way back to the store I have the PDF manual to consult. P158 suggest that FLog and HLG are available when using a HDMI connected external recorder but can be mirrored on the internal cards. It is available at ISO 1250 to ISO 12800. Having been recently burned with HLG on the small Sony I did not try it. Speaking of Sony :>( I just fried the A6600 that I was using as a temporary bridge until I find the final camera solution for my needs (wants really ...). Connected a battery insert to a DTap Gold mount battery and Voila ... doorstop she be. So I now am discovering what I can do with an A9 .... no SLOG ... but the majority of my pro bono work is in very controlled conditions. Hope that is my saving grace. Quote Link to comment Share on other sites More sharing options...
chadandreo Posted February 22, 2020 Share Posted February 22, 2020 4 hours ago, docmoore said: Its a bit confusing ... now that the camera is on its way back to the store I have the PDF manual to consult. P158 suggest that FLog and HLG are available when using a HDMI connected external recorder but can be mirrored on the internal cards. It is available at ISO 1250 to ISO 12800. Having been recently burned with HLG on the small Sony I did not try it. Speaking of Sony :>( I just fried the A6600 that I was using as a temporary bridge until I find the final camera solution for my needs (wants really ...). Connected a battery insert to a DTap Gold mount battery and Voila ... doorstop she be. So I now am discovering what I can do with an A9 .... no SLOG ... but the majority of my pro bono work is in very controlled conditions. Hope that is my saving grace. I think you should’ve put that camera through every test while you had it. Geoff CB 1 Quote Link to comment Share on other sites More sharing options...
Administrators Andrew Reid Posted February 22, 2020 Author Administrators Share Posted February 22, 2020 Can confirm there is no 4K recording in full frame 35mm crop mode, it's medium format only. Not that I mind. Punch in magnification during recording works. It's not too heavy and I like the ergonomics. ALL-I H.265 10bit at 400Mbit. Remind me did X-T3 have ALL-I mode in H.265 or Long GOP only? A while since I shot with it. This doesn't feel like a big X-T3. Feels more in the X-H1 mould. Which is a good thing. They got rid of the hipster dials for ISO and shutter speed (GFX 50S also had those) and it's more like a DSLR. Quote Link to comment Share on other sites More sharing options...
Nikkor Posted February 22, 2020 Share Posted February 22, 2020 Don't forget to buy the metabones hasselblad v to fuji speedbooster and make a decent review. I hacen't seen a single one. Quote Link to comment Share on other sites More sharing options...
Administrators Andrew Reid Posted February 22, 2020 Author Administrators Share Posted February 22, 2020 There's the format conversion Metabones as well where it expands the image circle from a Nikon lens to fit the medium format sensor. Same look as full frame but 100MP and a Fuji. Can't do that with an A7 or Z6 yet Quote Link to comment Share on other sites More sharing options...

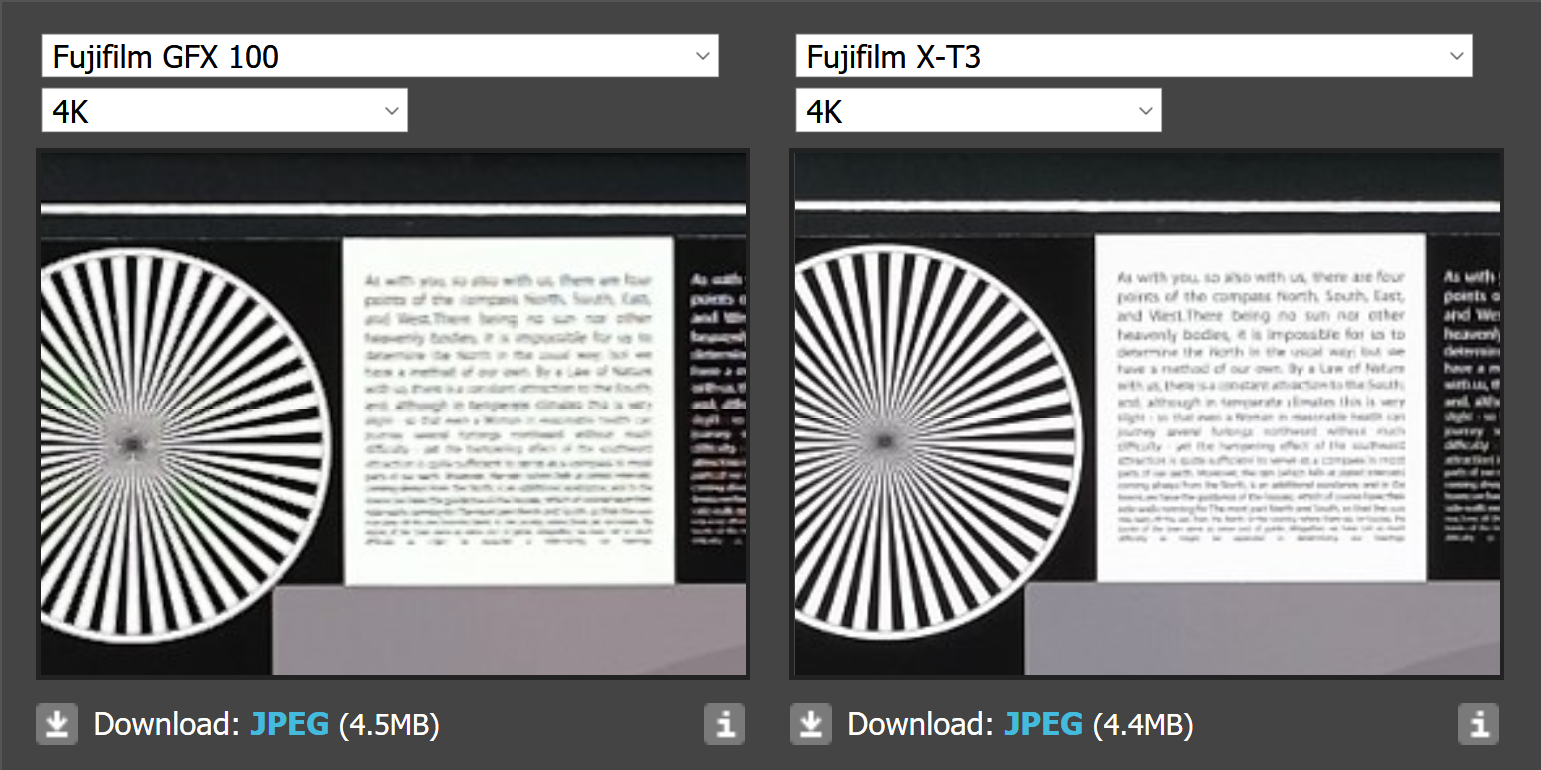

androidlad Posted February 22, 2020 Share Posted February 22, 2020 Because GFX100 heavily line-skips and bins when shooting 4K, the image exhibits quite a bit of moire and aliasing. Shame Fuji didn't implement the 3x3 RGB binning for a more organic, soft but detailed 4K image. Quote Link to comment Share on other sites More sharing options...
Administrators Andrew Reid Posted February 22, 2020 Author Administrators Share Posted February 22, 2020 Remember this? Didn't that refer to X-Trans IV / GFX 100? Or, as I speculated at the time - a medium format cine cam GFX H100? https://www.eoshd.com/news/fujifilm-hint-at-44x33-large-format-gfx-h100-filmmakers-camera-open-gate-4k3k/ In terms of the image in 4K on the GFX 100 I am impressed by it and I wouldn't say heavy moire or aliasing... More like barely noticeable and very detailed, especially with real world (of course you can always see some zoomed in on a chart). I heard the GFX100 reads every pixel horizontally as well, in 4K. Not sure about the line-skipping. Does it tell us in the Sony data sheet? Quote Link to comment Share on other sites More sharing options...

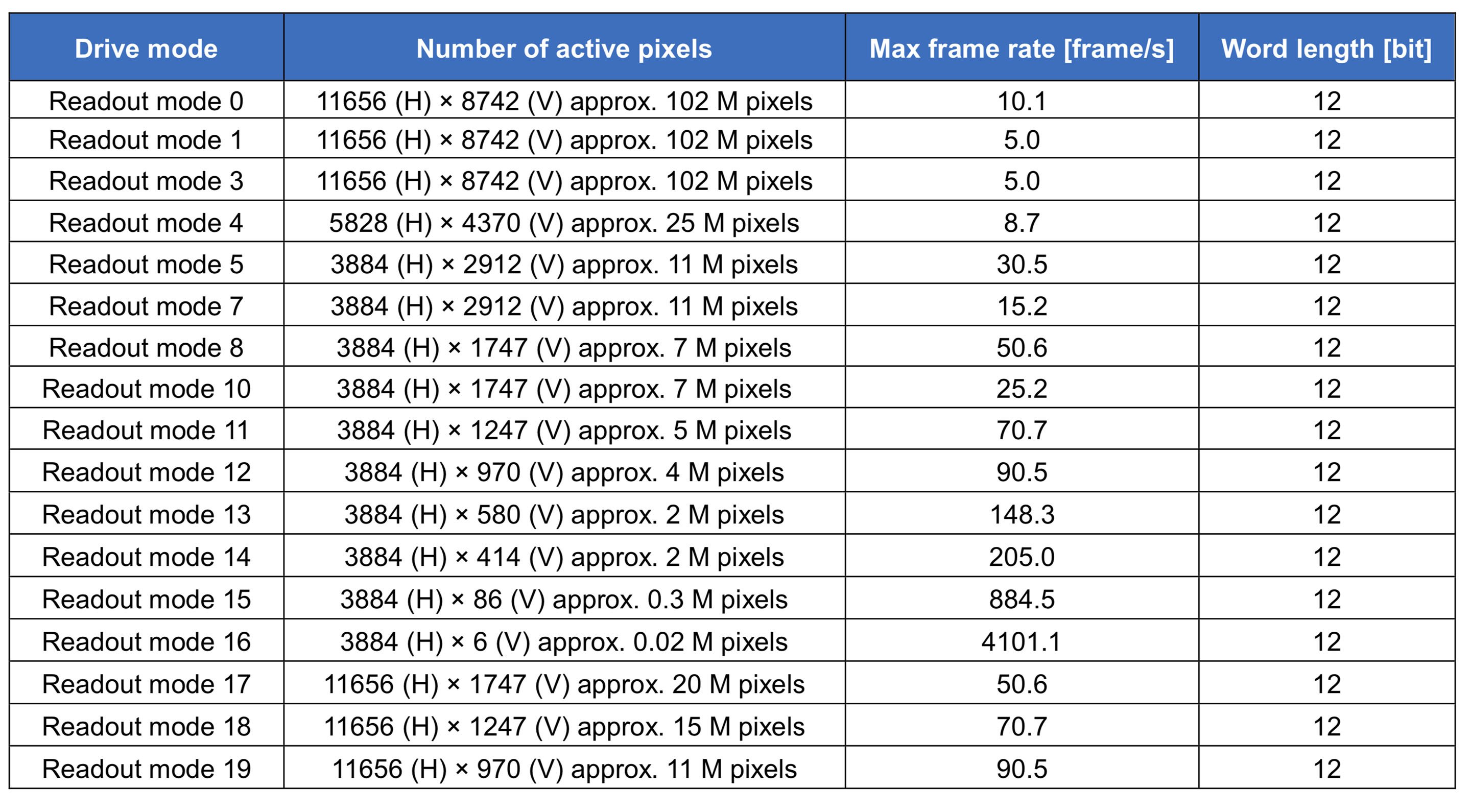

Administrators Andrew Reid Posted February 22, 2020 Author Administrators Share Posted February 22, 2020 Edit: It's right there in the data sheet... https://www.sony-semicon.co.jp/products/common/pdf/IMX461ALR_AQR_Flyer.pdf See readout mode 5 at up to 30fps 12bit. Resolution is exactly 3882 x 2912. So if the GFX100 sensor can bin like that, why would it heavily line skip instead? Quote Link to comment Share on other sites More sharing options...
androidlad Posted February 22, 2020 Share Posted February 22, 2020 2 minutes ago, Andrew Reid said: Edit: It's right there in the data sheet... https://www.sony-semicon.co.jp/products/common/pdf/IMX461ALR_AQR_Flyer.pdf See readout mode 5 at up to 30fps 12bit. Resolution is exactly 3882 x 2912. So if the GFX100 sensor can bin like that, why would it heavily line skip instead? If it bins like that, it doesn't sound good in marketing material. GFX100 reads the full width of the sensor at 11604 pixel, and vertically 2/3 subsamples from 6528 to 4352. The downsamples to 4K. So technically it oversamples. Quote Link to comment Share on other sites More sharing options...
Anaconda_ Posted February 22, 2020 Share Posted February 22, 2020 1 hour ago, Andrew Reid said: Remind me did X-T3 have ALL-I mode in H.265 or Long GOP only? A while since I shot with it. It does, but only at 400Mbps and up to 29.97p (DCI and UHD) - I say only because you can't select a lower Mbps and a higher frame-rate like you can with Long GOP. DCI24p 400Mbps All-I is nothing to sniff at. Quote Link to comment Share on other sites More sharing options...
Administrators Andrew Reid Posted February 22, 2020 Author Administrators Share Posted February 22, 2020 On close inspection there is aliasing and some jaggies on high contrast edges, some moire, a bit like an A7R IV or D850, but it's more or less under control for the most part. Certainly helps to turn the sharpness down in-camera. Quote Link to comment Share on other sites More sharing options...
Administrators Andrew Reid Posted February 22, 2020 Author Administrators Share Posted February 22, 2020 My Mac is obliterating the blacks in H.265 mode from this camera, mega crushing going on. I'll upload some original clips during the week, be interested to see what is going on there and whether this is a common issue. Quote Link to comment Share on other sites More sharing options...
androidlad Posted February 22, 2020 Share Posted February 22, 2020 It's a known issue and fixed in Catalina. Quote Link to comment Share on other sites More sharing options...
Administrators Andrew Reid Posted February 22, 2020 Author Administrators Share Posted February 22, 2020 I find Mac OS automatically seems to convert HLG footage to Rec709 now as well. Tim Apple needs to get it sorted. Quote Link to comment Share on other sites More sharing options...
