michael33b Posted January 3, 2015 Share Posted January 3, 2015 Has anyone ever used or know if it's possible to use this this version of the Schneider cinelux lens with the FM lens module? Cosimo murgolo 1 Quote Link to comment Share on other sites More sharing options...
Cosimo murgolo Posted January 3, 2015 Author Share Posted January 3, 2015 Hans and I thought that it would be nice to have our FM video channel on vimeo.Share as many video as you like here:https://vimeo.com/channels/857722thanks nahua and Julian 2 Quote Link to comment Share on other sites More sharing options...
Cosimo murgolo Posted January 3, 2015 Author Share Posted January 3, 2015 Has anyone ever used or know if it's possible to use this this version of the Schneider cinelux lens with the FM lens module?I am using it, it's great, no problem at all.There is also a video from anamorphic shop using the same lenshttps://vimeo.com/107718981 Quote Link to comment Share on other sites More sharing options...
nahua Posted January 5, 2015 Share Posted January 5, 2015 Hans and I thought that it would be nice to have our FM video channel on vimeo.Share as many video as you like here:https://vimeo.com/channels/857722thanksThanks for making this. I look forward to more videos shot with the FM. Cosimo murgolo 1 Quote Link to comment Share on other sites More sharing options...

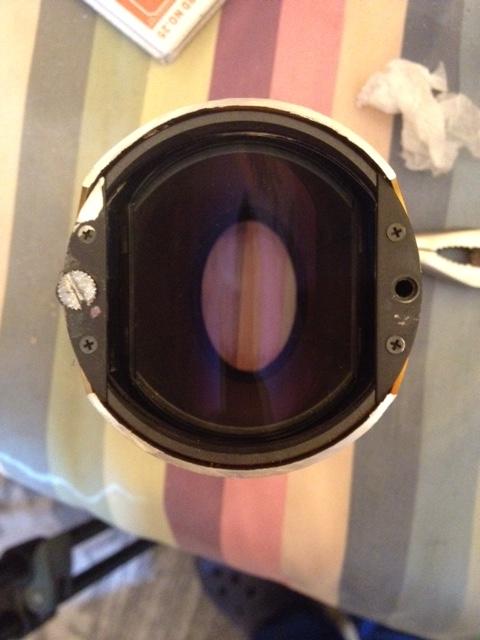

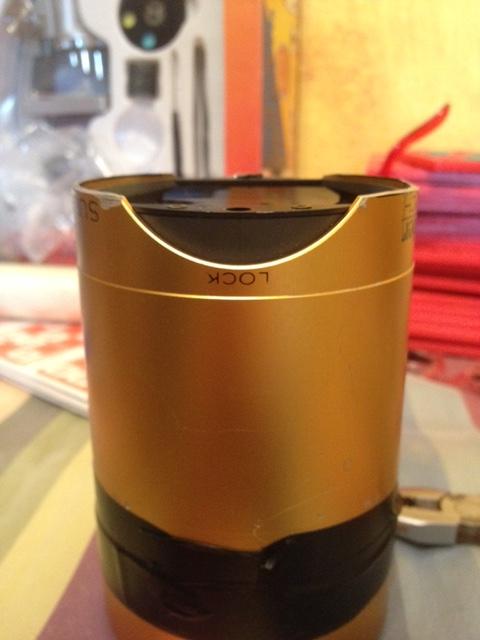

Cosimo murgolo Posted January 7, 2015 Author Share Posted January 7, 2015 Schneider super cinelux surgery.I was tired of those big lips in front of my Schneider super cinelux version 1, so today I managed to do a little surgery. I did it because now it can go all the way down the FM, this mod allows me to use an 85mm lens with my 5D without vignetting. It worked great inside the FM with his lips too, but I was limited to use a lens from 100mm to above. So you don't need to this mod, I DO NOT encourage you to do this as you may damage your lens. Better be safe than sorry! nahua and richg101 2 Quote Link to comment Share on other sites More sharing options...
sarwanov Posted January 7, 2015 Share Posted January 7, 2015 Thanks so much for uploading the post. Quote Link to comment Share on other sites More sharing options...
nahua Posted January 9, 2015 Share Posted January 9, 2015 My first test with the FM Module. This is a few BTS, I'll try and edit the rest of the video later. One note, a lot of the footage has the adapter misaligned. I had my friend take the video while I was shooting photos. He didn't tell me until later that it moved on its mount, so there's vignette and also the top of the frame isn't on the same plane as the rest of the image. First 4K upload to youtube as well, I hope it works for those people who have large monitors. Cosimo murgolo 1 Quote Link to comment Share on other sites More sharing options...
OzNimbus Posted January 9, 2015 Share Posted January 9, 2015 Schneider super cinelux surgery.I was tired of those big lips in front of my Schneider super cinelux version 1, so today I managed to do a little surgery. I did it because now it can go all the way down the FM, this mod allows me to use an 85mm lens with my 5D without vignetting. It worked great inside the FM with his lips too, but I was limited to use a lens from 100mm to above. So you don't need to this mod, I DO NOT encourage you to do this as you may damage your lens. Better be safe than sorry! Did you dremel that? What was your procedure? I've got one of these & might be interested in taking it down, too. Quote Link to comment Share on other sites More sharing options...
Cosimo murgolo Posted January 9, 2015 Author Share Posted January 9, 2015 Did you dremel that? What was your procedure? I've got one of these & might be interested in taking it down, too.First of all I DO NOT encourage you to do this, as you may damage your lens, don't blame me if you do damage your lens I followed Richg101 tutorial on how to do this.You can use whatever tool you feel comfortable with, I used a sort of Dremel, I protected the lens with a clean film to avoid the dust going inside the lens.Once the lips came off, I've used a grinder to smooth the surface of the cutting parts, I then cut the little iron knob to adjust the focus at the same level and made a cut in between so that I can screw in and out the knob with a screw driver, be very careful though, don't go to flat with it.Good luck and let me know how it goes.I hope it helped! OzNimbus and nahua 2 Quote Link to comment Share on other sites More sharing options...

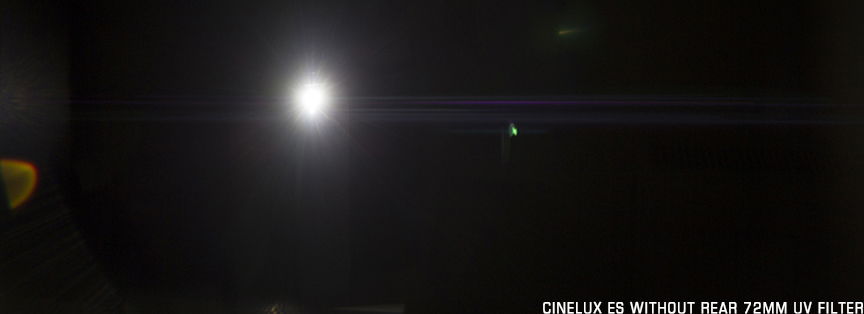

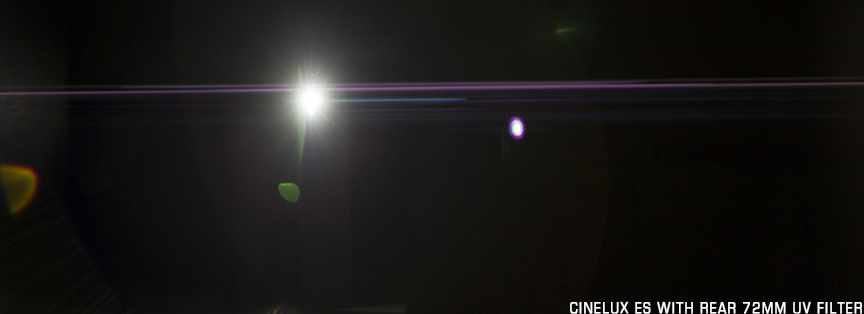

Hans Punk Posted January 9, 2015 Share Posted January 9, 2015 Hi guys....been away with work recently so not many posts from me recently.After a discussion with richg101 I decided to test the theory that introducing more optical faces into the Cinelux would result in nicer contrast and flares.So I mounted a 72mm cheap UV filter to the rear of the Cinelux and as you can see...it helps considerably by introducing internal reflection. It Should also help intensify other similar lenses (ultrastar etc) - although I don't have mine anymore to test.Very useful for those who are disappointed by the lackluster flares often found with these MC optics. Cosimo murgolo, dahlfors, nahua and 1 other 4 Quote Link to comment Share on other sites More sharing options...
Cosimo murgolo Posted January 9, 2015 Author Share Posted January 9, 2015 Nice tip there Hans, thanks for sharing it, that's what I got using Focus Module Isco animex olympus OM 100mm combo from different light source.I am going to try with the UV filter in the rear. nahua 1 Quote Link to comment Share on other sites More sharing options...
Julio Garcia Fernandez Posted January 10, 2015 Share Posted January 10, 2015 I just tried the UV filter in the 50mm super takumar prime lens and mi cinelux 1 with FM is MUCH BETER AND BIGGER flares, thank you Hans for the advise. Cosimo murgolo, nahua and Hans Punk 3 Quote Link to comment Share on other sites More sharing options...
Cosimo murgolo Posted January 13, 2015 Author Share Posted January 13, 2015 Win FM Lens!When?From today till 1st of March 2015HOW?Submitting any anamorphic video footage link (20sec. max.) to: fmcompetition@anamorphicshop.comAll video material of all entrants will be presented on FB ‘anamorphic shop’ for your independent vote.www.facebook.com/pages/Anamorphic-Shop/774607322559772WHO WILL WIN?The contestant who will have a leading number of ‘Likes’. Winner will receive a second edition fm lens.Lets get creative! dahlfors 1 Quote Link to comment Share on other sites More sharing options...
Cosimo murgolo Posted January 15, 2015 Author Share Posted January 15, 2015 For all those of you who wants to share their FM videos:https://vimeo.com/channels/857722 Quote Link to comment Share on other sites More sharing options...
Anthony Vallejo-Sanderson Posted January 20, 2015 Share Posted January 20, 2015 so will the 2nd gen FM fit a Kowa 16-H with out hacking it??? Quote Link to comment Share on other sites More sharing options...
Christian Schmeer Posted January 21, 2015 Share Posted January 21, 2015 Has anyone tried the Proskar 2x anamorphic with this? Also, what's the final verdict on the Schneider Cinelux vs. other compatible lenses now that the FM has been around for a bit? (Asking as the FM is being advertised in combination with the Cinelux). Quote Link to comment Share on other sites More sharing options...
Kristoferman Posted January 21, 2015 Share Posted January 21, 2015 So what exactly is the metal tube that comes with the FM for? Quote Link to comment Share on other sites More sharing options...
anti12 Posted January 21, 2015 Share Posted January 21, 2015 I think it's actually just a placeholder for the Anamorphic Lens. Something to keep the pieces together when in the box. Quote Link to comment Share on other sites More sharing options...
Hans Punk Posted January 21, 2015 Share Posted January 21, 2015 So what exactly is the metal tube that comes with the FM for? It acts as a proxy cinelux diameter to mount the FM to the ring clamp. Since it is a hollow tube, you can fit any smaller anamorphic inside to be use with the FM. If you jump back through this thread, you will see how Cosimo did exactly that for his Sankor and Animex s8 etc. Cosimo murgolo 1 Quote Link to comment Share on other sites More sharing options...

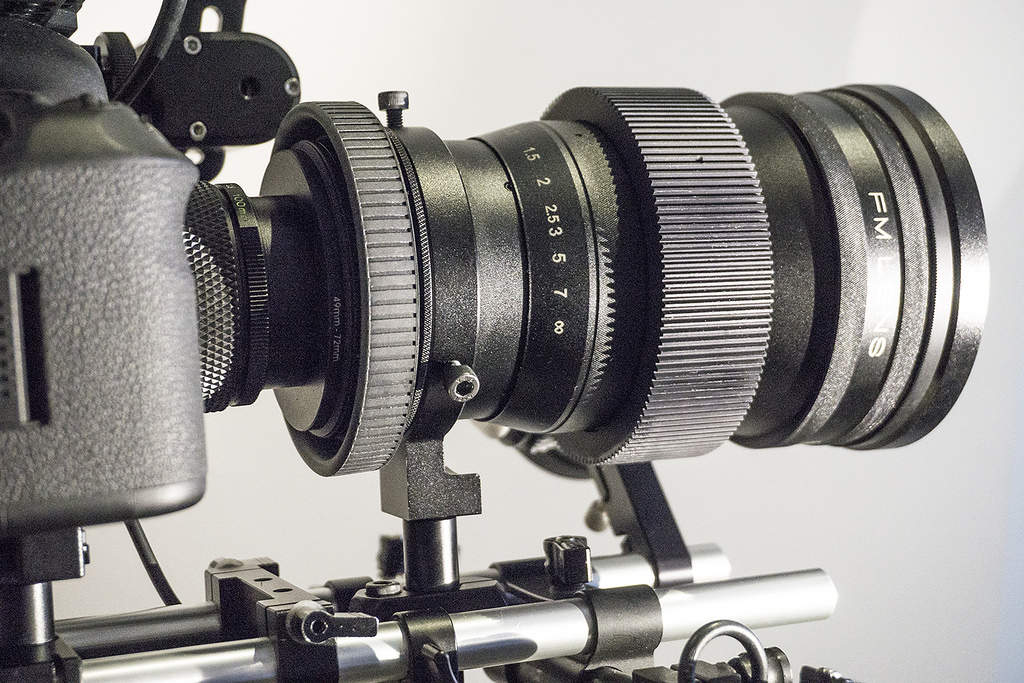

Hans Punk Posted January 21, 2015 Share Posted January 21, 2015 So I've received my RafCamera gear that I commissioned for my FM lens and I'm glad to report it fits perfectly.http://rafcamera.com/en/accessories/ff-gears/gear-fm-lens-88-107-32mmIt is VERY tight fit to put on (which is good) - so if you buy one, be prepared to expect that. More pictures of it setup on my 5DmkIIIhttps://www.flickr.com/photos/129041403@N06/sets/72157650417068585/ Cosimo murgolo and anti12 2 Quote Link to comment Share on other sites More sharing options...
