Kristoferman Posted December 23, 2014 Share Posted December 23, 2014 https://www.dropbox.com/s/oa3tmrtw8d3stn6/Screen Shot 2014-12-22 at 9.43.18 PM.png?dl=0https://www.dropbox.com/s/6v9z5z6eim4kc88/Screen Shot 2014-12-22 at 9.42.56 PM.png?dl=0https://www.dropbox.com/s/9rcnqo8etwrcwfh/Screen Shot 2014-12-22 at 9.43.27 PM.png?dl=0Screenshots and the video should be live below shortly. Looks amazing! I love it. Might have to trade in the kowa for a hypergonar if i can't get it to fit and don't hack it up too bad. Quote Link to comment Share on other sites More sharing options...

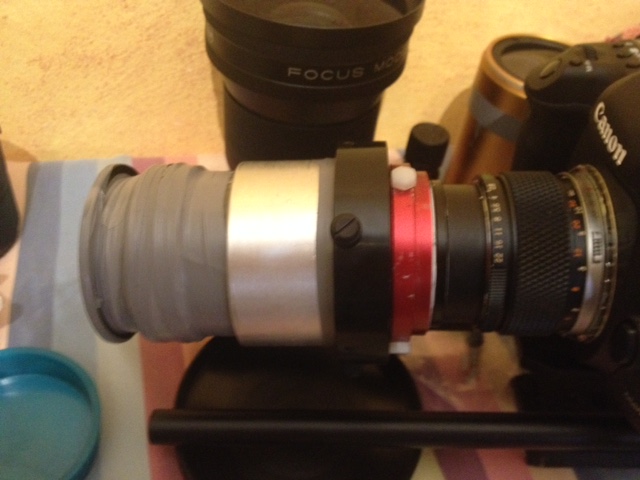

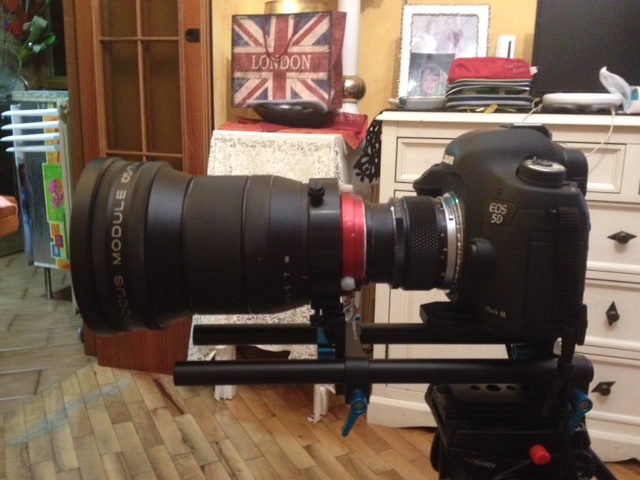

Cosimo murgolo Posted December 23, 2014 Author Share Posted December 23, 2014 I've managed to fit the Sankor 16D inside the FM. nahua and Hans Punk 2 Quote Link to comment Share on other sites More sharing options...
nahua Posted December 23, 2014 Share Posted December 23, 2014 I've managed to fit the Sankor 16D inside the FM.This makes me happy and sad at the same time. Nice that you made it fit. But the work that went into it...damn. I really hate taking apart lenses, and this looks like a nightmare for me. Please post some tests. I'd really like to see if it's worth hacking it to fit or just going the Isco/Schneider route. BTW Cosimo thanks for all your hard work - deals and hacking! Cosimo murgolo 1 Quote Link to comment Share on other sites More sharing options...
Kristoferman Posted December 23, 2014 Share Posted December 23, 2014 yeah post up some footage! need to know if it's worth doing to my kowa poor kowa Cosimo murgolo 1 Quote Link to comment Share on other sites More sharing options...

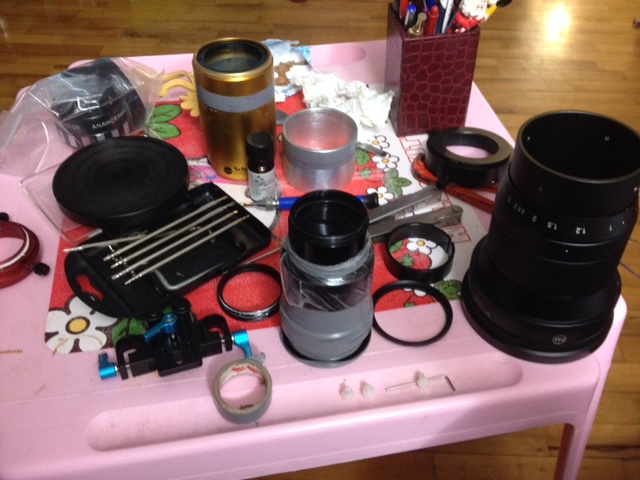

Cosimo murgolo Posted December 24, 2014 Author Share Posted December 24, 2014 This makes me happy and sad at the same time. Nice that you made it fit. But the work that went into it...damn. I really hate taking apart lenses, and this looks like a nightmare for me. Please post some tests. I'd really like to see if it's worth hacking it to fit or just going the Isco/Schneider route. BTW Cosimo thanks for all your hard work - deals and hacking!I am not an expert when it comes to taking lenses apart, it was a nightmare for me too, I took the risk. It took me 3 and half hours do the job, with kids going around and my wife complaining, I was lucky to have the right pieces, 2 redstan clamps and some ingenuity, I had to drill some holes to the metal tube that came with the FM, but now I can say it was worth it. I can also say that I thought it was going to be more difficult. I actually had difficulties to understand how to clamp it. I tried severals ways, finally a good idea came into my mind.Another problem that I wasn't aware of was to keep the anamorphic to infinity, once I unscrewed the metal focus ring I thought it could stay at infinity, it didn't, when I placed the sankor into the FM, the whole focus shifted, so, I had to find a way to keep the anamorphic at infinity. I managed to put tape between that space and it didn't shift anymore.If you don't like to go through all this, just go the isco/Schneider route, both ways are worth it, believe me.Thank you Nahua nahua 1 Quote Link to comment Share on other sites More sharing options...
Kristoferman Posted December 24, 2014 Share Posted December 24, 2014 I would want somebody to post a step-by-step instruction set (or better yet, tutorial vid!) before i started taking apart my lens. Just so scary! Quote Link to comment Share on other sites More sharing options...
Caleb Genheimer Posted December 24, 2014 Share Posted December 24, 2014 Yeah, this is unfortunate. They shouldn't have advertised it as compatible with Kowa/Sankor lenses. I was hoping to put it on my Kowa 16-H (8Z), as it is a very sharp and wide projection ANA, without the distortion that comes with the ISCO/Schneider "gold" style lenses. I may still if others confirm that it's possible (with modification), but for now, I'm going to sit this one out. The 16-H/8Z is the sweet-spot of anamorphics, other than the fact that it is double-focus. You can eek by with as wide as 50mm on full frame (if cropping to 2.35), and it has smooth blue flares. It can look crisp, clean, dirty, Hollywood or Russian depending on what taking lens you use. If someone proves that it's doable, I don't see why not. I mean, once you get a lens set inside the FM, there's no reason to remove it. But all this disassembly malarky is rather disappointing. nahua 1 Quote Link to comment Share on other sites More sharing options...
Caleb Genheimer Posted December 24, 2014 Share Posted December 24, 2014 Actually . . . Just measured the 16-H, and it's darn near 71mm. I'll try and get ahold of some digital calipers and check accurately. The grip on the focus ring and the very front part of the lens might be just a tad oversized, but both could probably be machined down a tad to within 71mm. Anyone with the FM Module, how tight is the 71mm? Is that exact? Quote Link to comment Share on other sites More sharing options...
nahua Posted December 24, 2014 Share Posted December 24, 2014 I am not an expert when it comes to taking lenses apart, it was a nightmare for me too, I took the risk. It took me 3 and half hours do the job, with kids going around and my wife complaining, I was lucky to have the right pieces, 2 redstan clamps and some ingenuity, I had to drill some holes to the metal tube that came with the FM, but now I can say it was worth it. I can also say that I thought it was going to be more difficult. I actually had difficulties to understand how to clamp it. I tried severals ways, finally a good idea came into my mind.Another problem that I wasn't aware of was to keep the anamorphic to infinity, once I unscrewed the metal focus ring I thought it could stay at infinity, it didn't, when I placed the sankor into the FM, the whole focus shifted, so, I had to find a way to keep the anamorphic at infinity. I managed to put tape between that space and it didn't shift anymore.If you don't like to go through all this, just go the isco/Schneider route, both ways are worth it, believe me.Thank you Nahua You are one brave man! I'd be shitting all over myself. Yeah I'm going the Isco route unless someone can find another way to mount it. I don't think I would be drilling holes into my new FM adapter. I just can't be doing these kinds of modifications. Damn! Quote Link to comment Share on other sites More sharing options...

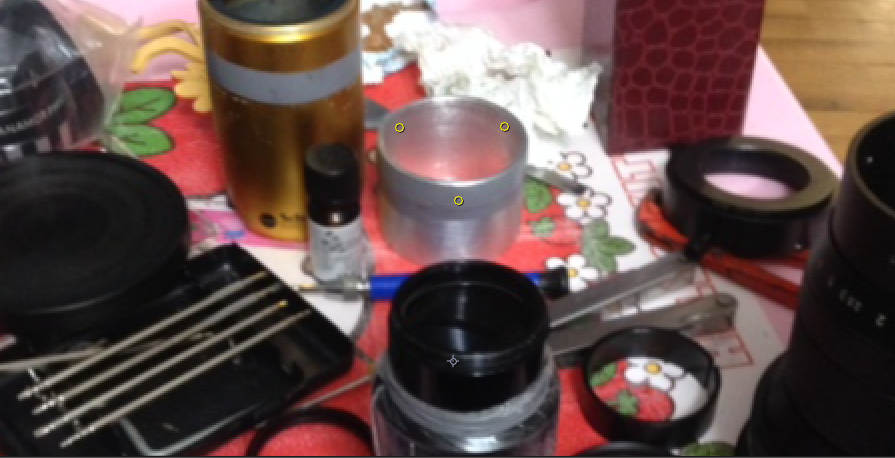

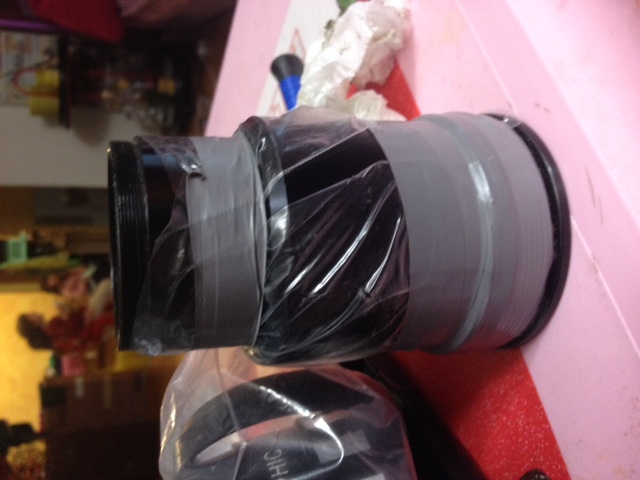

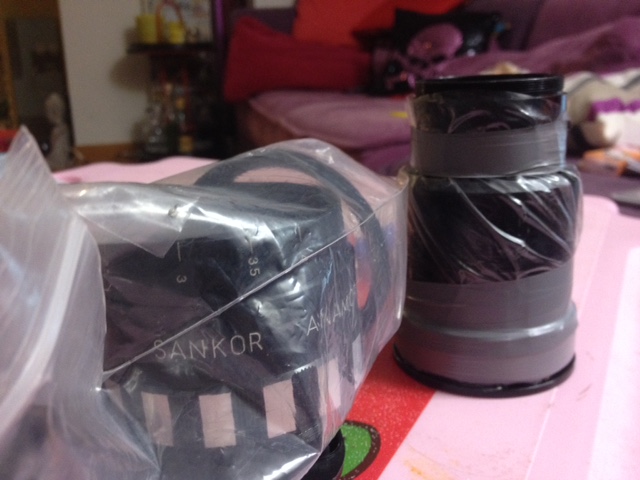

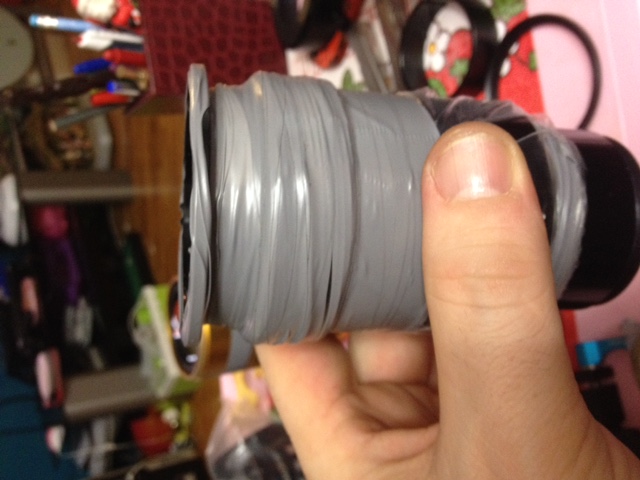

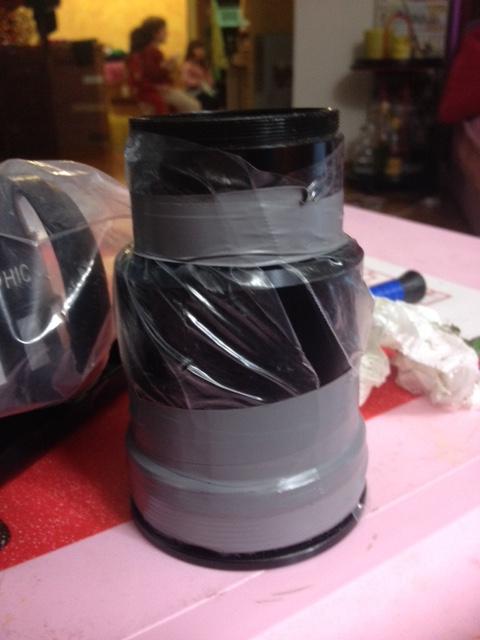

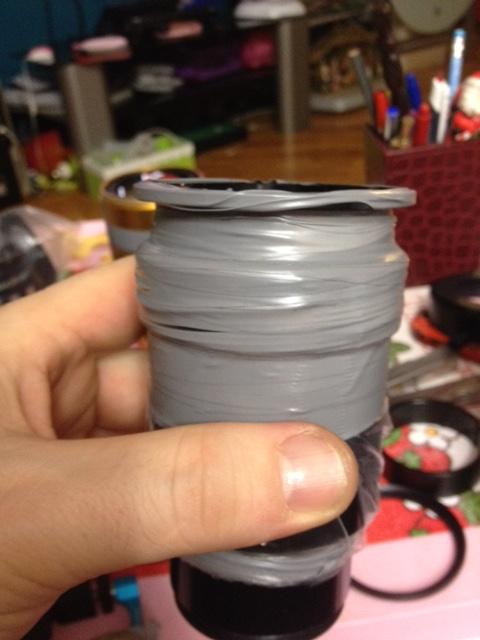

Cosimo murgolo Posted December 24, 2014 Author Share Posted December 24, 2014 You are one brave man! I'd be shitting all over myself. Yeah I'm going the Isco route unless someone can find another way to mount it. I don't think I would be drilling holes into my new FM adapter. I just can't be doing these kinds of modifications. Damn!Nahua, I haven't drilled holes to the FM itself, but to the metal tube that came with the FM (see the attachment photo), I am sure if I showed you a video tutorial you wouldn't be so scared At the end of the day only I did was taking the focus ring apart with a little screw driver like Hans said, the little screws came off easily, then you need to unscrew the 2 rings, once the rings were out I decide to put a little plastic bag around the sankor, cos was quite greasy, I went with some tape around it to secure the plastic wouldn't move. Set the Sankor to infinity by pulling the top part that moves all the way up, stopped it with more tape and infinity was fixed.After that half of the job is done, you have to find your way around it to clamp the sankor. I was lucky to have the right stuff with me.I used 2 redstan clamps , one actually is a filter clamp, ( see the 2nd photo) I put the sankor inside the FM, and from that I find my way to clamp it.The end part of the sankor was sticking out, good, so I had room to work on it, so I set the metal tube inside the sankor, then I took the black filter clamp and that went right around the metal tube, drew with a pen through the filter clamp's holes to be drilled into the metal tube,I took everything out , drilled the holes into the metal tube, I put back inside the FM, the black plastic screws now went right through the metal tube , they reached and stopped the sankor in the right position that was inside the metal tube. After that the only part I had was just the end part of the sankor sticking out, so I took the other redstan clamp the red one and I attached it to the taking lens.I hope this will help everyone with a Sankor, please forgive my english. Hans Punk and nahua 2 Quote Link to comment Share on other sites More sharing options...
Hans Punk Posted December 24, 2014 Share Posted December 24, 2014 Great job Cosimo!...that is the way to do it.Before anyone attempts to go 'Dexter' on their lenses without knowing for sure what to do, please watch the video below. There should be NO reason to take a drill/ hacksaw or lathe to any lens!...the suggestion alone made me feel a bit unwell, so I made a short and basic video explaining how to remove the focus ring/cowl section to get the outside diameter reduced for the FM lens. (I know many here already know this...so bear with me).This removal process will be quite universal to lenses of this type/size (kowa 8z/sankor/elmoscope etc) - I suspect that some variants will fit within 71mm diameter so if you have one of these there will not be an issue. This video shows a non-destructive disassembly method providing care is taken and the correct tools used. Being able to return the anamorphic to it's original condition is the goal here. Cosimo has a great idea of wrapping the uncovered section with plastic wrap before taping into the infinity position - this ensures the helicoid grease will remain contaminant free and enable the lens to be re-assembled if needs be without any ill effects from the disassembly and re-mounting process.This video is meant as a visual guide only...do not attempt yourself if it looks too risky.Edit: As I previously mentioned on the older FM thread, you can make your own version of the FM mounting tube for smaller anamorphics by getting some stock exhaust/ tailpipe tube in the correct diameter (all you need to do is cut it to length). These are made from stainless steel and have a thinner wall thickness than the FM aluminium version - allowing a bit more room inside for an anamorphic to fit: http://www.ebay.co.uk/itm/321033449391?_trksid=p2059210.m2749.l2649&ssPageName=STRK%3AMEBIDX%3AIT anti12, ken, nahua and 2 others 5 Quote Link to comment Share on other sites More sharing options...
Cosimo murgolo Posted December 24, 2014 Author Share Posted December 24, 2014 Thanks Hans, this is just a quick video I did with the Sankor 16D inside the FM, nothing special. It's just to show that the hack was worth it. anti12, nahua and Hans Punk 3 Quote Link to comment Share on other sites More sharing options...
Kristoferman Posted December 24, 2014 Share Posted December 24, 2014 Appreciate the test! I just received my FM yesterday but still waiting on my rail system now. Should i buy any other clamps or accessories or will the jag35 baseplate/rail system + FM be all i need? Cosimo murgolo 1 Quote Link to comment Share on other sites More sharing options...
Hans Punk Posted December 24, 2014 Share Posted December 24, 2014 You will need some sort of lens support bracket that clamps to the rails and screws into the 1/4 hole on the FM ring clamp.I would highly recommend a support that clamps/ locks to both rails - as most quick release lens support brackets only lock to one rail and are not totally secure when holding the full weight of the FM lens.After trying two different lens support brackets this is what I went for, as it enables height adjustment for different cameras, allows locking of the 1/4 screw pillar (many supports like this don't lock against twist) and it's made from a quality supplier: http://store.berkeysystem.com/lens-support/there are cheaper alternatives out there that will do the job for sure...if the jag35 baseplate allows decent height adjustment, it will be fine to use a rail lens support that is at a fixed height. There are many rail/ lens support brackets out there...might be useful for others to share what works for them? Cosimo murgolo 1 Quote Link to comment Share on other sites More sharing options...
Julio Garcia Fernandez Posted December 25, 2014 Share Posted December 25, 2014 Im asking Mindaugas for other solution to this......My FM is starting the 3 round to the world!!!!!!!!!!!!!!!!!!!!! Ayuda Imprimir En tránsitoNEW DELHI, DLFecha de envío (P/U):Jue 18/12/2014 10:10 MAISIAGALA, LT LT Entrega estimada :N.A. SAN PEDRO ALCANTARA ES No hay ninguna fecha de entrega estimada disponible en este momento.Retener en local de FedExSolicitar notificacionesObtener prueba de entregaMás acciones Añadir notas Historial de desplazamientoOcultar Ayuda Fecha/horaActividad Ubicación 25/12/2014 - Jueves19:07En tránsito NEW DELHI IN 18:41En tránsito NEW DELHI IN 04:40Abandonó las instalaciones de FedEx ROISSY CHARLES DE GAULLE CEDEX FR 03:04En tránsito ROISSY CHARLES DE GAULLE CEDEX FR 02:41En tránsito ROISSY CHARLES DE GAULLE CEDEX FR 24/12/2014 - Miércoles22:32Abandonó las instalaciones de FedEx ROISSY CHARLES DE GAULLE CEDEX FR 21:03Llegado a la ubicación de FedEx ROISSY CHARLES DE GAULLE CEDEX FR 21:03En tránsito ROISSY CHARLES DE GAULLE CEDEX FR 12:13En tránsito KOELN DE 12:08Abandonó las instalaciones de FedEx KOELN DE 10:36Llegado a la ubicación de FedEx KOELN DE 05:36Abandonó las instalaciones de FedEx GUANGZHOU CN 04:00En tránsito GUANGZHOU CN 23/12/2014 - Martes22:47Llegado a la ubicación de FedEx GUANGZHOU CN 04:55Abandonó las instalaciones de FedEx ROISSY CHARLES DE GAULLE CEDEX FR 04:34En tránsito ROISSY CHARLES DE GAULLE CEDEX FR 22/12/2014 - Lunes20:11Abandonó las instalaciones de FedEx ROISSY CHARLES DE GAULLE CEDEX FR 18:56Llegado a la ubicación de FedEx ROISSY CHARLES DE GAULLE CEDEX FR 18:56En tránsito ROISSY CHARLES DE GAULLE CEDEX FR 10:10Llegado a la ubicación de FedEx ROISSY CHARLES DE GAULLE CEDEX FR 21/12/2014 - Domingo18:56Abandonó las instalaciones de FedEx MEMPHIS, TN 18:36En tránsito MEMPHIS, TN 03:39En tránsito MEMPHIS, TN 03:10Llegado a la ubicación de FedEx MEMPHIS, TN 20/12/2014 - Sábado21:41En tránsito NARITA-SHI JP 18:11Abandonó las instalaciones de FedEx ANCHORAGE, AK 11:02Llegado a la ubicación de FedEx ANCHORAGE, AK 04:28Abandonó las instalaciones de FedEx GUANGZHOU CN 03:13En tránsito GUANGZHOU CN 19/12/2014 - Viernes23:03Llegado a la ubicación de FedEx GUANGZHOU CN 13:29En tránsito GUANGZHOU CN 05:27Abandonó las instalaciones de FedEx ROISSY CHARLES DE GAULLE CEDEX FR 04:57En tránsito ROISSY CHARLES DE GAULLE CEDEX FR 02:06Abandonó las instalaciones de FedEx ROISSY CHARLES DE GAULLE CEDEX FR 01:22En tránsito ROISSY CHARLES DE GAULLE CEDEX FR 00:40Llegado a la ubicación de FedEx ROISSY CHARLES DE GAULLE CEDEX FR 18/12/2014 - Jueves11:48Abandonó las instalaciones de origen de FedEx VILNIUS LT 10:10Recogida VILNIUS LT 16/12/2014 - Martes05:06Información sobre envío remitida a FedEx Seleccionar zona horaria Hora local de la búsqueda Origen Destino Otros Seleccionar (GMT) Hora media de Greenwich: Dublín, Edimburgo, Lisboa, Londres (GMT) Casablanca, Monrovia, Reikiavik (GMT -12:00) Línea internacional de cambio de fecha occidental (GMT -11:00) Islas Midway, Samoa (GMT -10:00) Hawái (GMT -09:00) Alaska (GMT -08:00) Hora del Pacífico (EE. UU. y Canadá) (GMT -07:00) Hora de la montaña (EE. UU. y Canadá) (GMT -07:00) Chihuahua, La Paz, Mazatlán - Antigua (GMT -07:00) Chihuahua, La Paz, Mazatlán - Nueva (GMT -07:00) Arizona (GMT -06:00) Saskatchewan (GMT -06:00) Guadalajara, Ciudad de México, Monterrey - Antigua (GMT -06:00) Guadalajara, Ciudad de México, Monterrey - Nueva (GMT -06:00) América Central GMT -06:00) Hora central (EE. UU. y Canadá) (GMT -05:00) Indiana (Este) (GMT -05:00) Hora del Este (EE. UU. y Canadá) (GMT -05:00) Bogotá, Lima, Quito, Rio Branco (GMT -04:00) Santiago (GMT -04:00) Manaos (GMT -04:00) Caracas, La Paz (GMT -04:00) Hora del Atlántico (Canadá) (GMT -03:30) Terranova (GMT -03:00) Montevideo (GMT -03:00) Groenlandia (GMT -03:00) Buenos Aires, Georgetown (GMT -03:00) Brasilia (GMT -02:00) Atlántico Medio (GMT -01:00) Isla de Cabo Verde (GMT -01:00) Azores (GMT +13:00) Nukualofa (GMT +12:00) Fiji, Kamchatka, Islas Marshall (GMT +12:00) Auckland, Wellington (GMT +11:00) Magadán, Islas Salomón, Nueva Caledonia (GMT +10:00) Vladivostok (GMT +10:00) Hobart (GMT +10:00) Guam, Puerto Moresby (GMT +10:00) Canberra, Melbourne, Sydney (GMT +10:00) Brisbane (GMT +09:30) Darwin (GMT +09:30) Adelaida (GMT +09:00) Yakutsk (GMT +09:00) Seúl (GMT +09:00) Osaka, Sapporo, Tokio (GMT +08:00) Taipéi (GMT +08:00) Perth (GMT +08:00) Kuala Lumpur, Singapur (GMT +08:00) Irkutsk, Ulán Bator (GMT +08:00) Pekín, Chongqing, Hong Kong, Urumchi (GMT +07:00) Krasnoyarsk (GMT +07:00) Bangkok, Hanói, Yakarta (GMT +06:30) Yangón (Rangún) (GMT +06:00) Astaná, Daca (GMT +05:45) Katmandú (GMT +05:30) Sri Jayawardenapura (GMT +05:30) Chennai, Calcuta, Bombay, Nueva Delhi (GMT +05:00) Islamabad, Karachi, Taskent (GMT +05:00) Ekaterimburgo (GMT +04:30) Kabul (GMT +04:00) Ereván (GMT +04:00) Hora estándar del Cáucaso (GMT +04:00) Bakú (GMT +04:00) Abu Dhabi, Mascate (GMT +03:30) Teherán (GMT +03:00) Tiflis (GMT +03:00) Nairobi (GMT +03:00) Moscú, San Petersburgo, Volgogrado (GMT +03:00) Kuwait, Riad (GMT +03:00) Bagdad (GMT +02:00) Windhoek (GMT +02:00) Minsk (GMT +02:00) Jerusalén (GMT +02:00) Helsinki, Kiev, Riga, Sofía, Tallinn, Vilna (GMT +02:00) Harare, Pretoria (GMT +02:00) Cairo (GMT +02:00) Beirut (GMT +02:00) Atenas, Bucarest, Estambul (GMT +01:00) Asia Central Occidental (GMT +01:00) Sarajevo, Skopie, Varsovia, Zagreb (GMT +01:00) Bruselas, Copenhague, Madrid, París (GMT +01:00) Belgrado, Bratislava, Budapest, Liubliana, Praga (GMT +01:00) Ámsterdam, Berlín, Berna, Roma, Estocolmo, Viena Datos de los envíosOcultar Número de seguimiento Peso3, 4 lb / 1, 54 kgNúmero total de piezas1EmbalajeYour PackagingServicioFedEx International PriorityMedidas10x7x8 inPeso total del envío3, 4 lb / 1, 54 kgSección de manipulación especialRealizar Entrega en Día Hábil Quote Link to comment Share on other sites More sharing options...
Guest Posted December 26, 2014 Share Posted December 26, 2014 Cool thing I found out, it works with my ef-s lens that has image stabilization. Betcha can't find one of those suckers on the market! Quote Link to comment Share on other sites More sharing options...
Cosimo murgolo Posted December 26, 2014 Author Share Posted December 26, 2014 Forgive my stupid question, will this work to place a 72mm ND filter on the FM?http://i.ebayimg.com/00/s/MTUwMFgxNTAw/z/EF4AAOSwuMFUghm8/$_57.JPG Quote Link to comment Share on other sites More sharing options...
Hans Punk Posted December 26, 2014 Share Posted December 26, 2014 Forgive my stupid question, will this work to place a 72mm ND filter on the FM?http://i.ebayimg.com/00/s/MTUwMFgxNTAw/z/EF4AAOSwuMFUghm8/$_57.JPGNot a stupid question, but that step ring would not be the best solution to mount a ND filter IMO (fixed or VND). This is because of the rotating focus design of the front glass - if a ND or CPL filter was attached to the front, the polarising effect would shift the reflection/ highlights whilst focusing. The best results seem to be from mounting filters at the rear of the FM lens and in front of the taking lens.For example, I have a double threaded Cokin 72mm VND attached to the rear of the Cinelux ring adapter - then an empty 72mm CPL filter (with glass removed) - then a 72mm to 49mm step ring to taking lens. This setup allows a lightproof connection to the taking lens, but allows me to rotate the VND to effect exposure. The empty CPL filter allows the section to spin freely, without coming unscrewed from the neighbouring step rings.A more simple solution would be to have the ND/VND or whatever filter you want to simply be mounted at the rear of the FM- and position the taking lens as closely as possible.The only filter I have on the front of the FM lens is a 105mm UV filter - to protect the glass. You access the filter thread on the FM by unscrewing the front metal ring on the FM lens. Liszon 1 Quote Link to comment Share on other sites More sharing options...

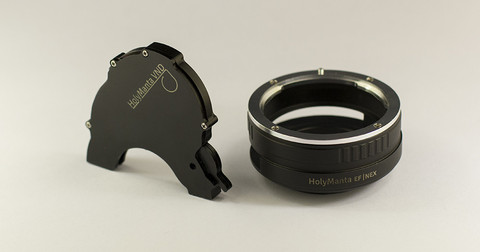

Cosimo murgolo Posted December 26, 2014 Author Share Posted December 26, 2014 Thanks Hans, one of these would be perfect, (link below), but I don't understand if this will work on a 5d markiii.Artiswar is using it on the sony A7s, what do you think?http://www.holymanta.com/ Quote Link to comment Share on other sites More sharing options...
Hans Punk Posted December 26, 2014 Share Posted December 26, 2014 For mirror-less cameras unfortunately...the flange focal distance on your (and my) 5DmkIII does not allow an internal ND setup like that. So the best solution would be to use a regular screw-on VND or fixed ND filter at the rear of the FM lens. When I am back home tomorrow I will post an image of the VND setup I constructed - it's pretty simple but it works well. Quote Link to comment Share on other sites More sharing options...
